Operating Guide | VLT® Midi Drive FC 280
Array Parameters
5.4.5.4
Setup 1
5 x
1
OK
Setup 1
INDEX
2
OK
Setup 1
INDEX
Setup 1
INDEX
OK
4
Setup 1
INDEX

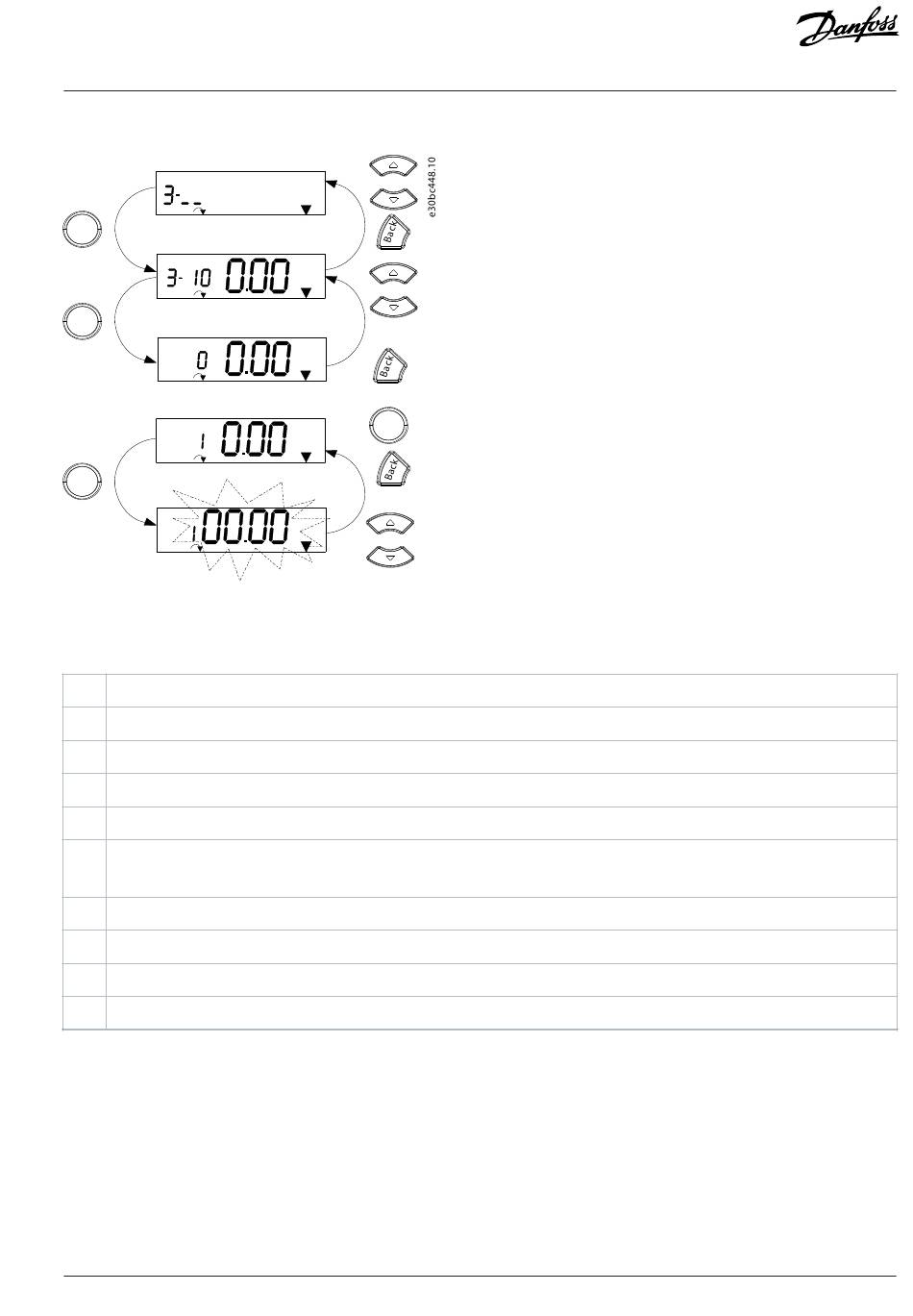

Figure 28: Main Menu Interactions - Array Parameters
Table 12: Changing Values in Array Parameters
1 [OK]: Shows parameter numbers and the value in the 1st index.
2 [OK]: Index can be selected.
3 [▲][▼]: Select index.
4 [OK]: Value can be edited.
5 [▲][▼]: Change parameter value (flashing).
6 [▲][▼]: Change parameter value (flashing).
[OK]: Accepts changes.
7 [Back]: Cancels editing index, selects a new parameter.
8 [▲][▼]: Select parameter within the group.
9 [Back]: Removes parameter index value and shows the parameter group.
10 [▲][▼]: Select group.
5.4.6 Graphical Local Control Panel
The GLCP is divided into 4 functional groups.
A. Display area.
l
B. Display menu keys.
l
C. Navigation keys and indicator lights (LEDs).
l
D. Operation keys and reset.
l
Danfoss A/S © 2024.10
10
9
8
%
%
7
OK
%
6
%
5
