Operating Guide | VLT® Midi Drive FC 280

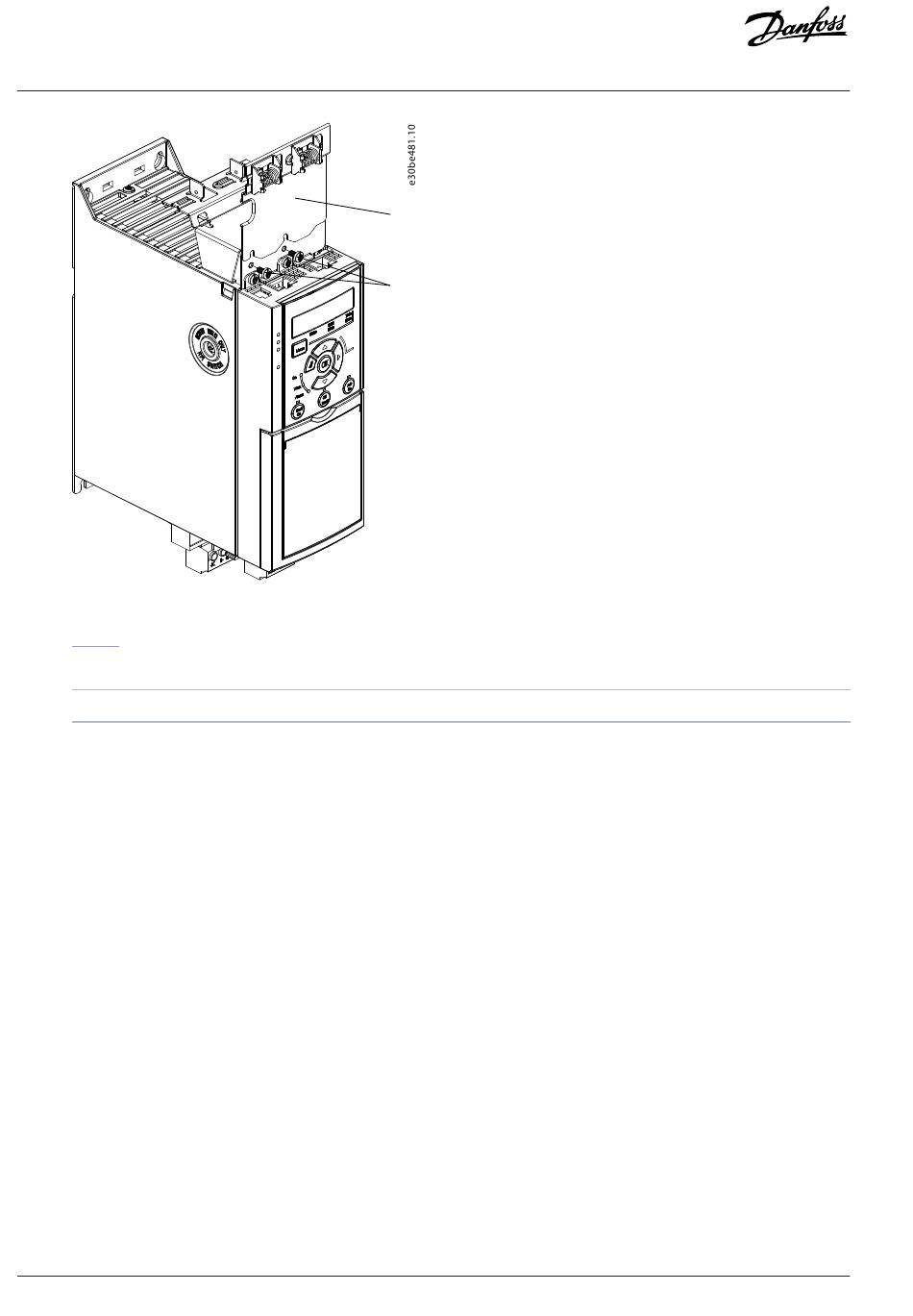

Figure 7: Fasten the Vertical Decoupling Plate with Screws
Figure 7 shows Ethernet-based connectors (RJ45). The actual connector type depends on the selected fieldbus variant of the
drive.
1 Vertical decoupling plate
3.
Push the Ethernet cable connectors (RJ45) into the sockets in the control cassette.
4.
Place the Ethernet cables between the spring-loaded metal clamps to establish mechanical fixation between the cables and the
clamps.
22 | Danfoss A/S © 2024.10
1
2
2 Screws
Mechanical Installation
AQ381425076031en-000201 / 130R1223
