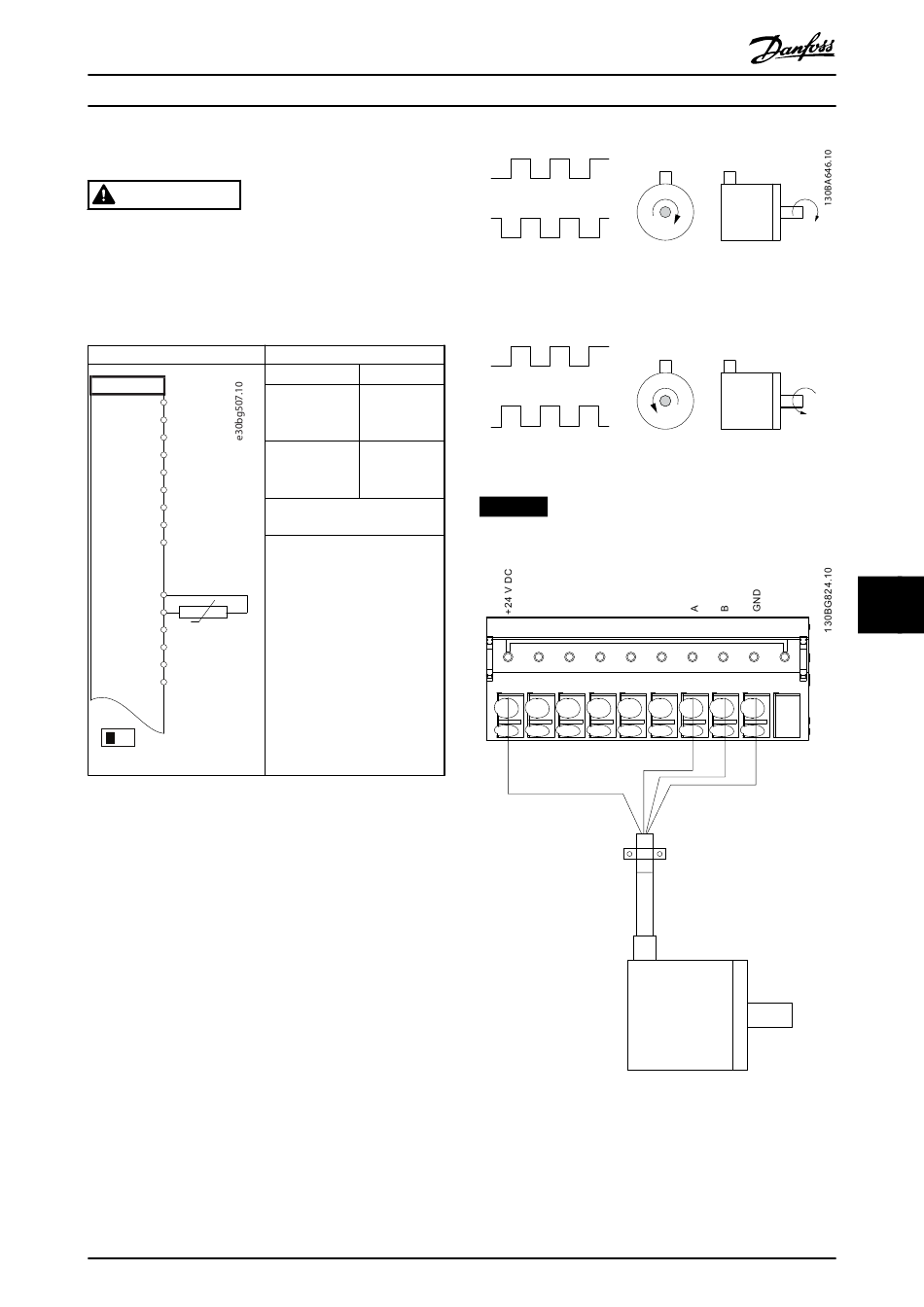

9.5 Wiring for a Motor Thermistor

WARNING
THERMISTOR INSULATION
Risk of personal injury or equipment damage.
•
To meet PELV insulation requirements, use only
thermistors with reinforced or double
insulation.
VLT
+24 V 12
+24 V 13
D IN 18
D IN 19
COM 20
D IN 27
D IN 29
D IN 32
D IN 33
+10 V 50
A IN
53
A IN
54
COM
55
A OUT
42
COM
39
U - I
A53
Table 9.9 Motor Thermistor

9.6 Wiring Configuration for the Encoder

The direction of the encoder, identified by looking into the
shaft end, is determined by which order the pulses enter
the drive. See Illustration 9.5.
•
Clockwise (CW) direction means channel A is 90
electrical degrees before channel B.
•
Counterclockwise (CCW) direction means channel
B is 90 electrical degrees before A.
MG06K102
Design Guide
Parameters
Function Setting
Parameter 1-90 [2] Thermistor
Motor Thermal trip
Protection
Parameter 1-93 [1] Analog
Thermistor input 53
Resource
* = Default value
Notes/comments:
If only a warning is desired, set
parameter 1-90 Motor Thermal
Protection to [1] Thermistor
warning.
