Operating Guide | VLT® Midi Drive FC 280

Mechanical Installation

3

Unpacking

3.1

Items Supplied

3.1.1
Items supplied vary according to product configuration.
Make sure that the items supplied and the information on the nameplate correspond to the order confirmation.
l
Check the packaging and the drive visually for damage caused by inappropriate handling during shipment. File any claim for
l
damage with the carrier. Retain damaged parts for clarification.
1
VLT
Midi Drive
22
www.danfoss.com
21
T/C: FC-280PK37T4E20H1BXCXXXSXXXXAX
20
P/N: 134U2184 S/N: 000000G000
0.37kW 0.5HP
19
IN: 3x380-480V 50/60Hz, 1.2/1.0A
OUT: 3x0-Vin 0-500Hz, 1.2/1.1A
18
IP20 SIL3 PL.e
17
Danfoss A/S, 6430 Nordborg, Denmark
IND.CON.EQ E358 502
US LISTED
5AF3 See manual for mains fuse
R
16
CAUTION / ATTENTION:
See manual for special condition/mains fuse
Voir manual de conditions speciales/fusibles
WARNING / AVERTISSEMENT:
15
Stored charge, wait 4 min.
Charge résiduelle, attendez 4 min.

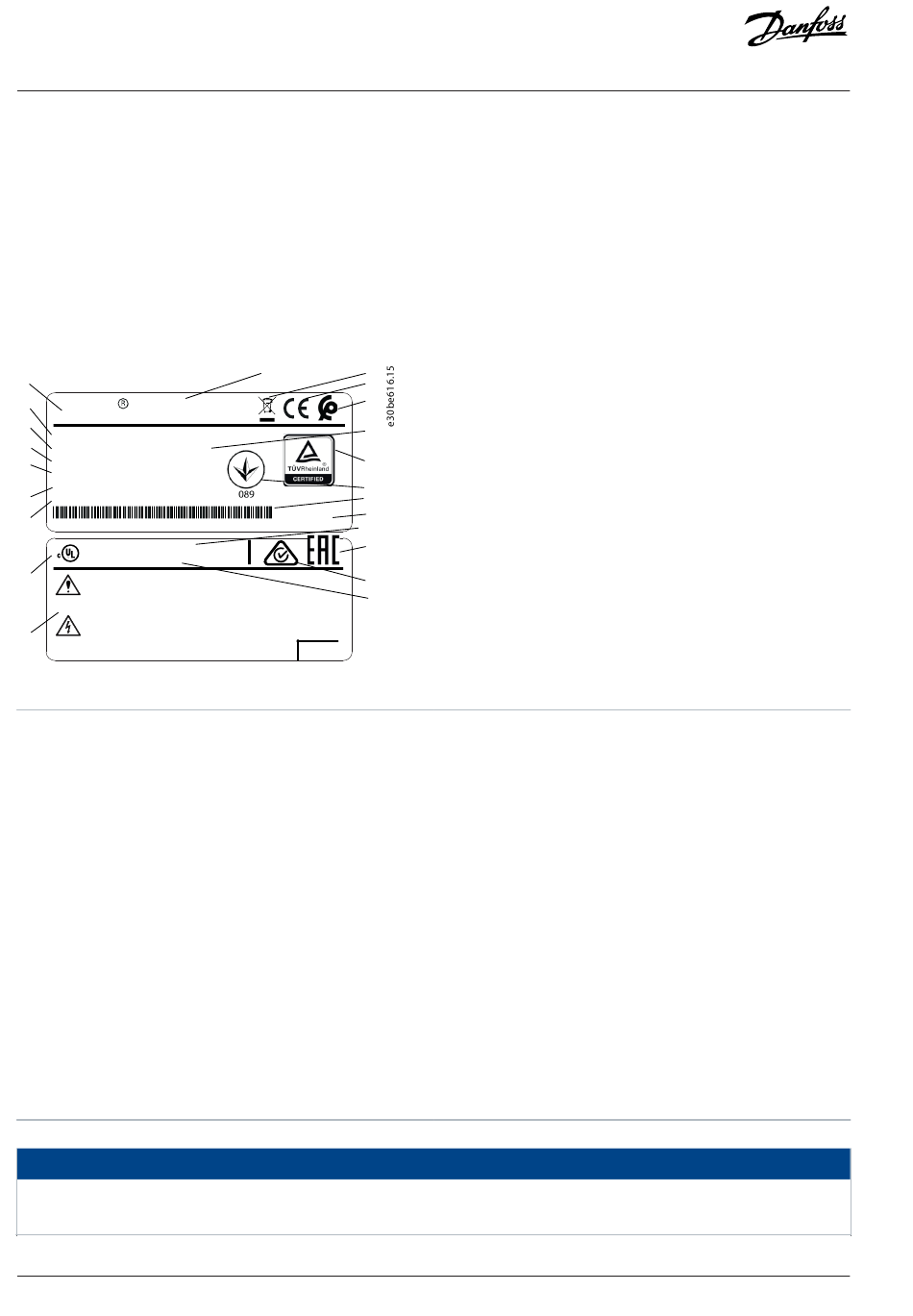

Figure 2: Product Nameplate (Example)
1 Product logo
3
Disposal
5 Morocco
7
TÜV logo
9 Barcode
11
UL reference
13 RCM logo
15 Warning specifications
17 IP rating
19
Input voltage, frequency, and current (at low/high
voltages)
21 Ordering number
Do not remove the nameplate from the drive (loss of warranty).
For more information of the type code, refer to the chapter Type Code in the VLT® Midi Drive FC 280 Design Guide.
l
18 | Danfoss A/S © 2024.10
2 3
4
5
6
7
8
www.tuv.com
9
ID 0600000000
MADE IN 10
DENMARK
11
12
13
14
SIL3
NOTICE
2 Product name
4
CE mark
6 Serial number
8
UkrSEPRO logo
10 Country of origin
12
EAC logo
14 Reference to enclosure type
16 UL logo
18 Output voltage, frequency, and current (at low/high
voltages)
20
Power rating
22 Type code
