Application Examples

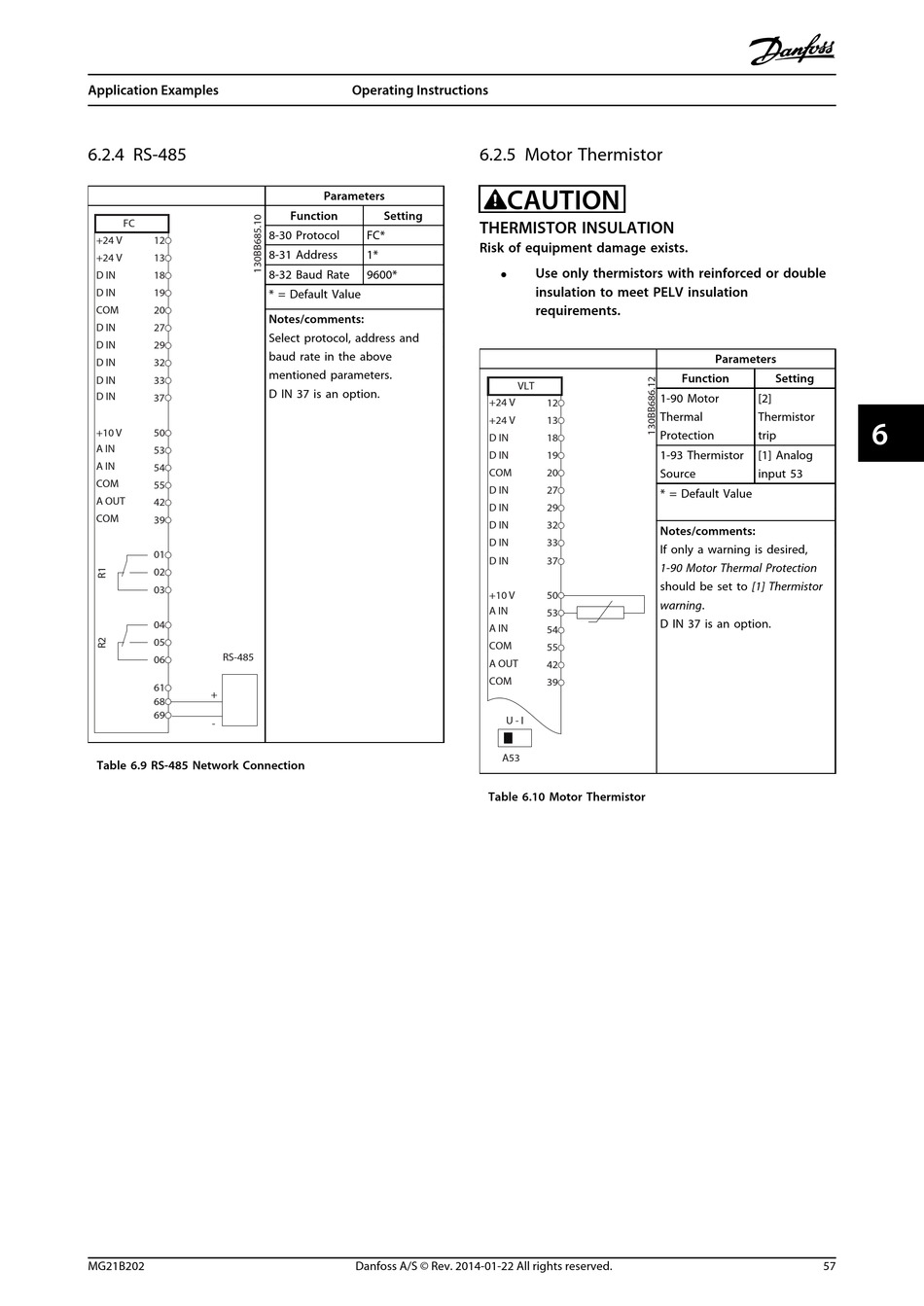

6.2.4 RS-485

FC
+24 V 12
+24 V 13
D IN 18
D IN 19
COM 20
D IN 27
D IN 29
D IN 32
D IN 33
D IN
37
+10 V 50
A IN
53
A IN
54
COM
55
A OUT
42
COM
39
01
02
03
04
05
RS-485
06
61
+
68
69
-
Table 6.9 RS-485 Network Connection
MG21B202
Operating Instructions
Parameters
Function Setting
8-30 Protocol FC*
8-31 Address 1*
8-32 Baud Rate 9600*
* = Default Value
Notes/comments:
Select protocol, address and
baud rate in the above
mentioned parameters.
D IN 37 is an option.
Danfoss A/S © Rev. 2014-01-22 All rights reserved.

6.2.5 Motor Thermistor

CAUTION
THERMISTOR INSULATION
Risk of equipment damage exists.
•
Use only thermistors with reinforced or double
insulation to meet PELV insulation
requirements.
VLT
+24 V 12
+24 V 13
D IN 18
D IN 19
COM 20
D IN 27
D IN 29
D IN 32
D IN 33
D IN 37
+10 V 50
A IN
53
A IN
54
COM
55
A OUT
42
COM
39
U - I
A53
Table 6.10 Motor Thermistor
Parameters
Function Setting
1-90 Motor [2]
Thermal Thermistor
Protection trip
1-93 Thermistor [1] Analog
Source input 53
* = Default Value
Notes/comments:
If only a warning is desired,
1-90 Motor Thermal Protection
should be set to [1] Thermistor
warning.
D IN 37 is an option.
