Application Examples

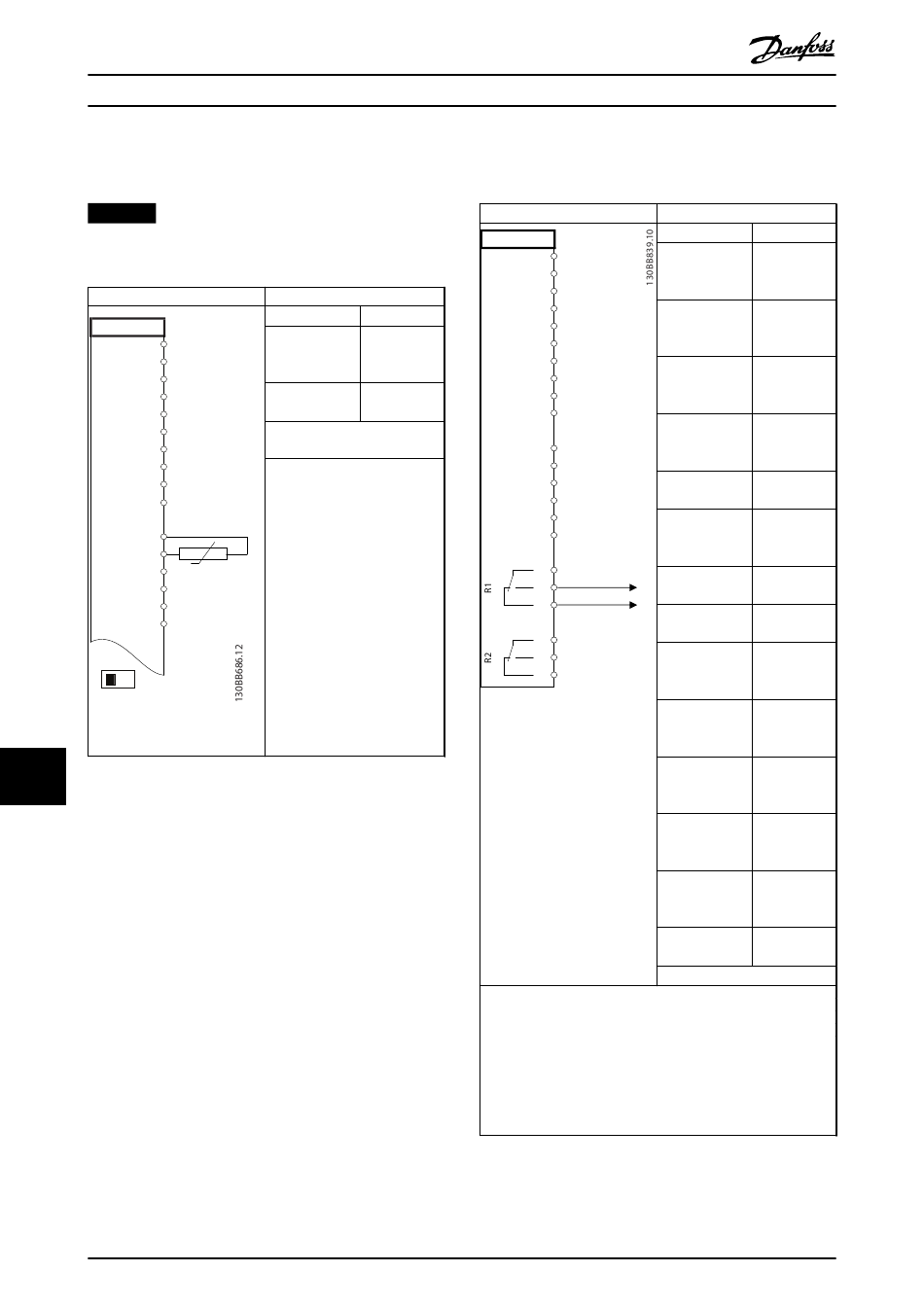

12.8 Wiring Configuration for a Motor
Thermistor
NOTICE
Thermistors must use reinforced or double insulation to
meet PELV insulation requirements.
VLT
+24 V 12
+24 V 13
D IN 18
D IN 19
COM 20
D IN 27
D IN 29
D IN 32
D IN 33
D IN 37
+10 V 50
A IN
53
A IN
54
COM
55
A OUT
42
COM
39
U - I
A53
12 12
Table 12.12 Wiring Configuration for a Motor Thermistor
114
VLT® AQUA Drive FC 202
Parameters
Function Setting
Parameter 1-90 [2] Thermistor
Motor Thermal trip
Protection
Parameter 1-93 T [1] analog
hermistor Source input 53
*=Default value
Notes/comments:
If only a warning is wanted, set
parameter 1-90 Motor Thermal
Protection to [1] Thermistor
warning.
Danfoss A/S © 05/2017 All rights reserved.
12.9 Wiring Configuration for a Relay Set-up
with Smart Logic Control
FC
+24 V 12
+24 V 13
D IN 18
D IN 19
COM 20
D IN 27
29
D IN
D IN 32
D IN 33
D IN
37
+10 V 50
A IN
53
A IN
54
COM
55
A OUT
42
COM
39
01
02
03
04
05
06
Notes/comments:
If the limit in the feedback monitor is exceeded, warning 90,
Feedback Mon. is issued. The SLC monitors warning 90, Feedback
Mon. and if the warning becomes true, relay 1 is triggered.
External equipment may require service. If the feedback error
goes below the limit again within 5 s, the drive continues and
the warning disappears. Reset relay 1 by pressing [Reset] on the
LCP.
Table 12.13 Wiring Configuration for a Relay Set-up with
Smart Logic Control
Parameters
Function Setting
Parameter 4-30 [1] Warning
Motor Feedback
Loss Function
Parameter 4-31 100 RPM
Motor Feedback
Speed Error
Parameter 4-32 5 s
Motor Feedback
Loss Timeout
Parameter 7-00 S [2] MCB 102
peed PID
Feedback Source
Parameter 17-11 1024*
Resolution (PPR)
Parameter 13-00 [1] On
SL Controller
Mode
Parameter 13-01 [19] Warning
Start Event
Parameter 13-02 [44] Reset key
Stop Event
Parameter 13-10 [21] Warning
Comparator no.
Operand
Parameter 13-11 [1] ≈ (equal)*
Comparator
Operator
Parameter 13-12 90
Comparator
Value
Parameter 13-51 [22]
SL Controller Comparator 0
Event
Parameter 13-52 [32] Set digital
SL Controller out A low
Action
Parameter 5-40 F [80] SL digital
unction Relay output A
*=Default value
