Operating Guide | VLT® Midi Drive FC 280

Numerical Local Control Panel

5.4.2
The numerical local control panel is divided into 4 functional sections.
A. Numeric display.
l
B. Menu key.
l
C. Navigation keys and indicator lights (LEDs).
l
D. Operation keys and indicator lights (LEDs).
l
1
A
Setup 1
2
Status
4
B
Menu
9
C
On
6
Warn
Alarm
8
Hand
D
Reset
On
13

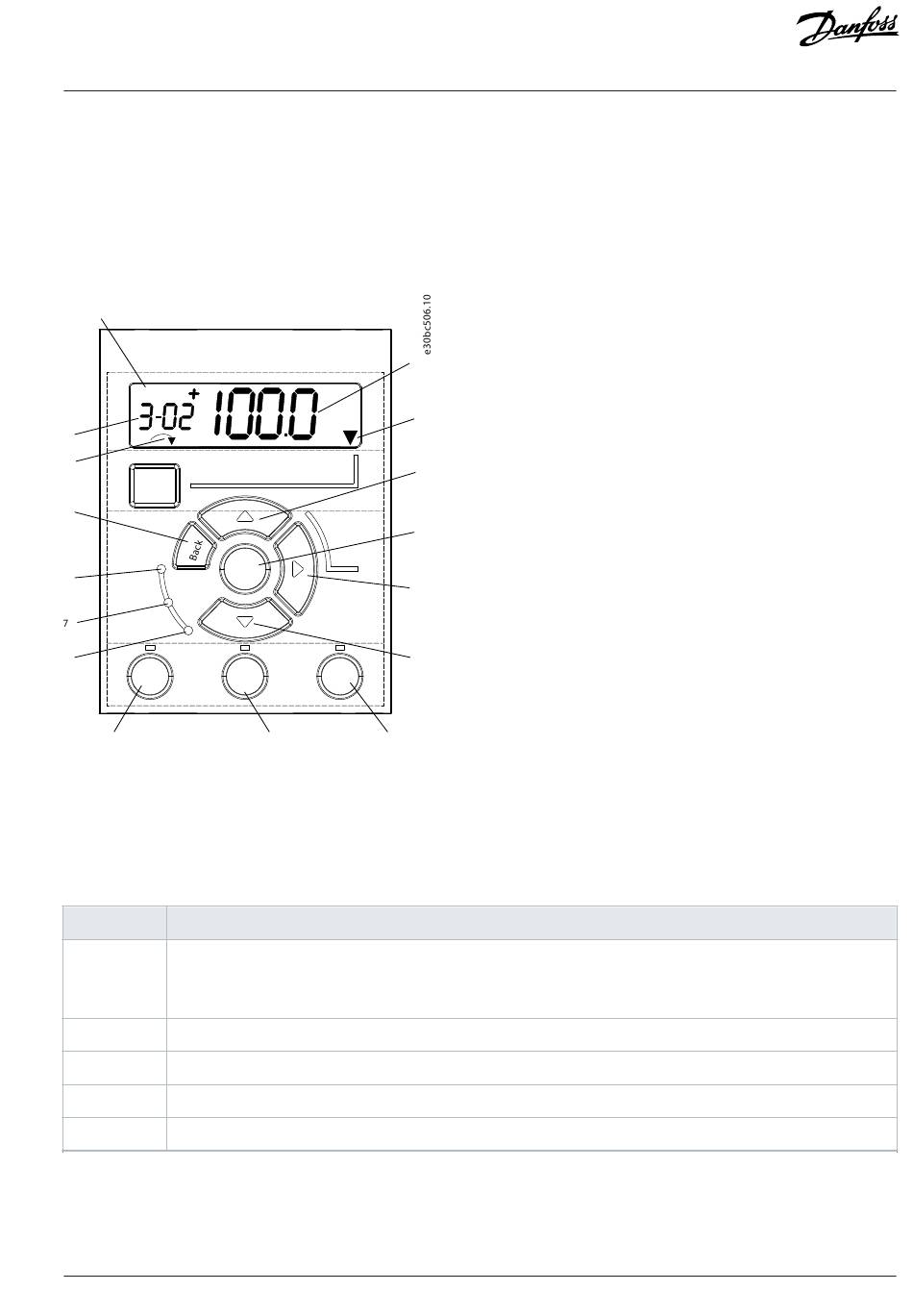

Figure 22: View of the NLCP
A. Numeric display
The LCD display is backlit with 1 numeric line. All data is shown in the LCP.
Table 6: Legend to Section A
Number Function
1 The setup number shows the active setup and the edit setup. If the same setup acts as both active and edit setup,
only that setup number is shown (factory setting). When active and edit setups differ, both numbers are shown in
the display (setup 12). The number flashing indicates the edit setup.
2 Parameter number.
3 Parameter value.
4 Motor direction is shown at the bottom left of the display. A small arrow indicates the direction.
5 The triangle indicates whether the LCP is in Status, Quick Menu, or Main Menu.
Danfoss A/S © 2024.10
Quick Main
Menu Menu
OK
Off
Auto
On
14 15
3
5
10
11
12
10
Commissioning
