2) If SS1 is triggered by safe DI, this bit also indicates "active".
3) Bits that are not supported are set to 0.
Byte 0 Bit 0, STO
Bit 0.0=0, Safe Torque Off inactive.
l
Bit 0.0=1, Safe Torque Off active (one-active).
l
Byte 0 Bit 1, SS1
Bit 0.1=0, safe stop 1 inactive.
l
Bit 0.1=1, safe stop 1 active (one-active).
l
Byte 0 Bit 7, INTERNAL_EVENT
Bit 0.7=0, no safety fault.
l
Bit 0.7=1, safety fault present.
l

Installation

6.6
Safe Input Terminals
6.6.1
All short-circuit risks must be eliminated!

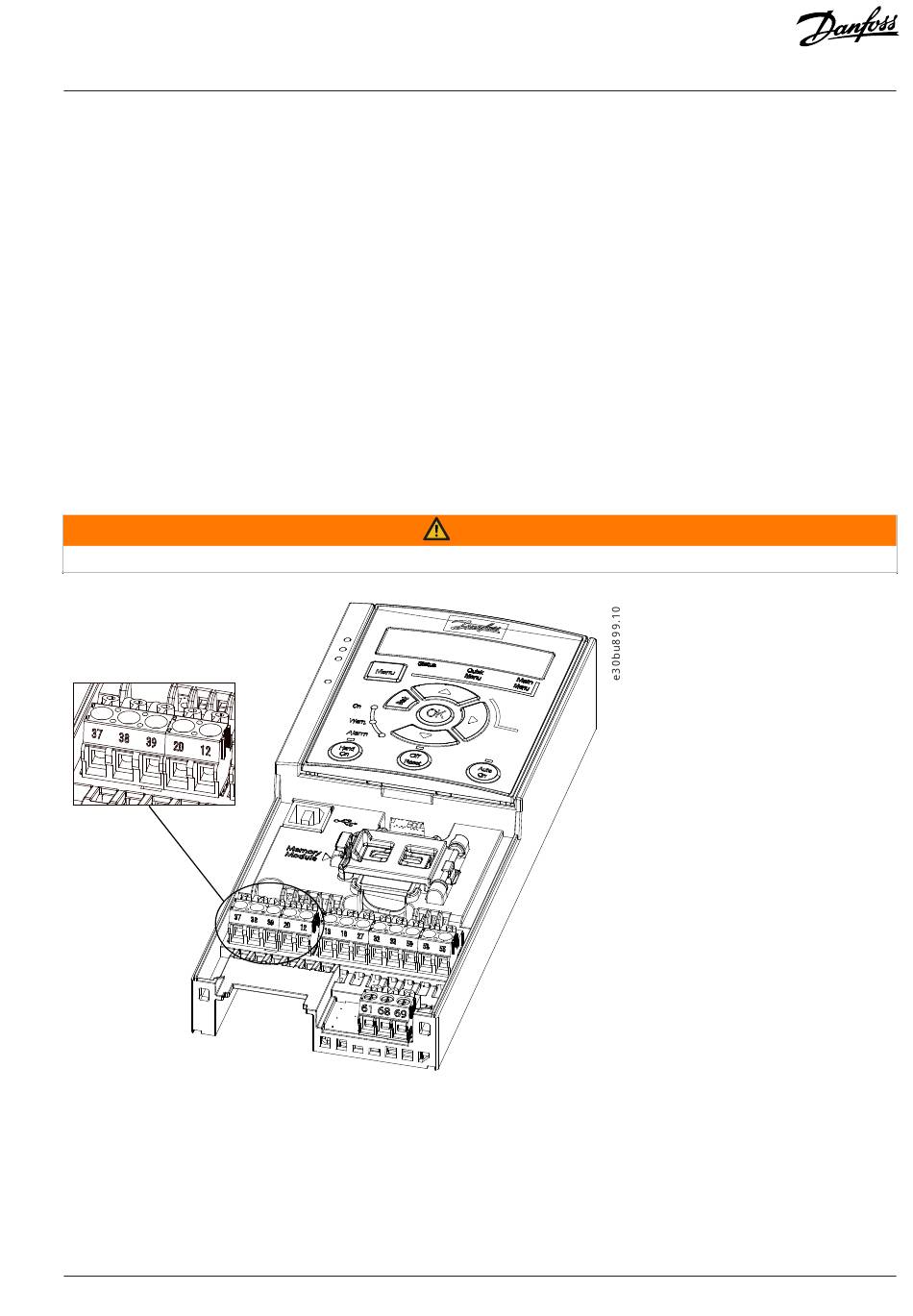

Figure 38: Safe Input Terminals
