SLC
7.7

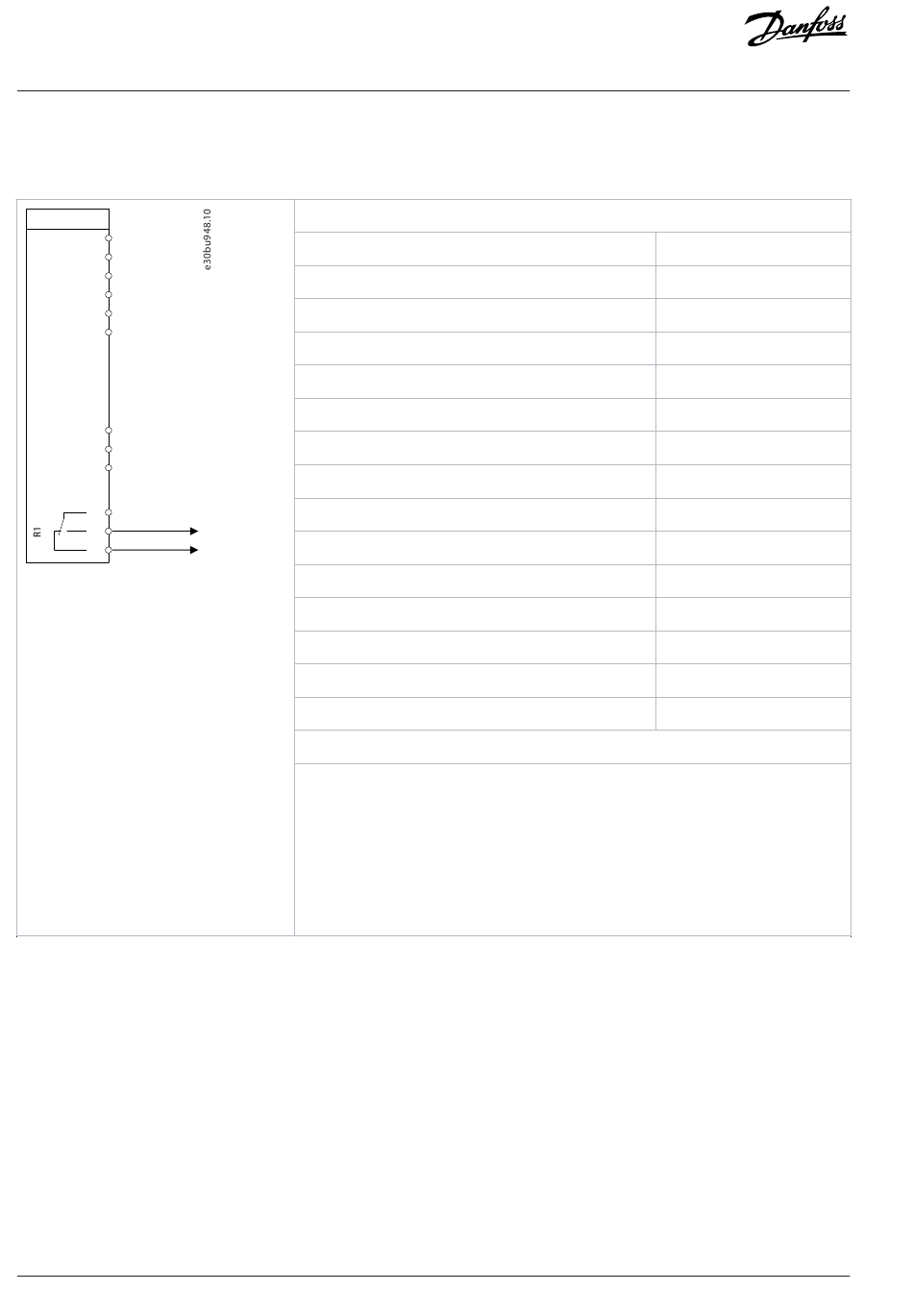

Table 57: Using SLC to Set a Relay
FC
+24 V 12
+24 V
13
D IN 18
D IN 27
D IN 32
33
D IN
+10 V 50
A IN
53
COM
55
01
02
03
112 | Danfoss A/S © 2024.10
Parameters
Function
Parameter 4-30 Motor Feedback Loss Function
Parameter 4-31 Motor Feedback Speed Error
Parameter 4-32 Motor Feedback Loss Timeout
Parameter 7-00 Speed PID Feedback Source
Parameter 5-70 Term 32/33 Pulses Per Revolution
Parameter 13-00 SL Controller Mode
Parameter 13-01 Start Event
Parameter 13-02 Stop Event
Parameter 13-10 Comparator Operand
Parameter 13-11 Comparator Operator
Parameter 13-12 Comparator Value
Parameter 13-51 SL Controller Event
Parameter 13-52 SL Controller Action
Parameter 5-40 Function Relay
*=Default value
Notes/comments:
If the limit in the feedback monitor is exceeded, warning 61, feedback monitor is issued.
The SLC monitors warning 61, feedback monitor. If warning 61, feedback monitor be-
comes true, relay 1 is triggered.
External equipment could indicate that service is required. If the feedback error goes be-
low the limit again within 5 s, the drive continues, and the warning disappears. Relay 1
persists until [Off/Reset] is pressed.
Application Examples
Setting
[1] Warning
50
5 s
[1] 24 V encoder
*1024
[1] On
[19] Warning
[44] Reset key
[21] Warning no.
*[1] ≈
61
[22] Comparator 0
[32] Set digital out A low
[80] SL digital output A
