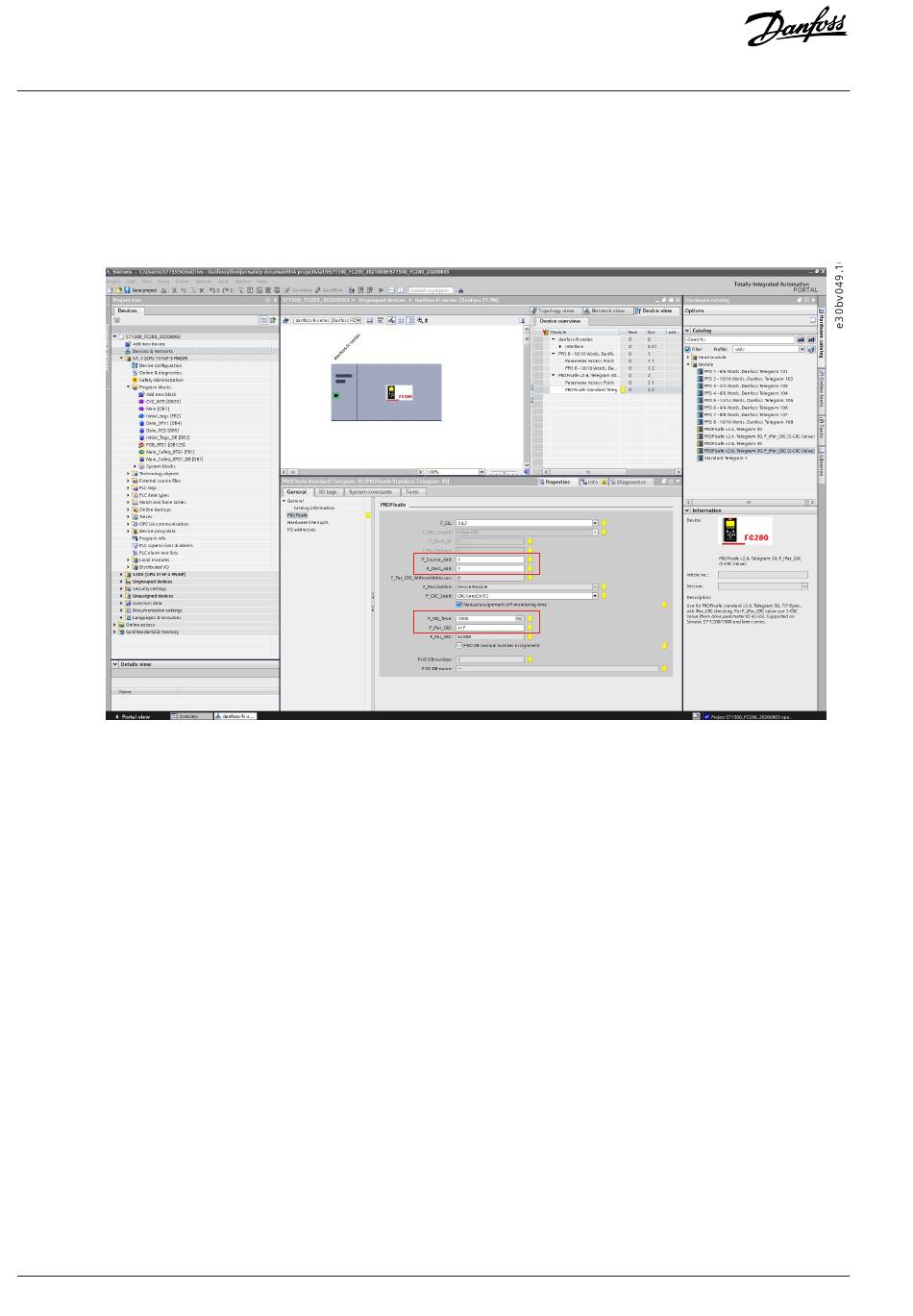

F_Dest_Add - the destination address of the safety option. This address must be the same as set in the VLT® Motion Control
¢
Tool MCT 10 software, parameter 42-61 Destination Address.
F_WD_Time - the watchdog time for the PROFIsafe connection. This setting depends on the speed of the PROFINET
¢
connection and the number of slaves.
F_iPar_CRC - if the F_iPar_CRC module is enabled. To set up communication, copy the value of parameter 42-35 S-CRC
¢
Value from the VLT® Motion Control Tool MCT 10 software and insert the value here.
6.7.3 Programming Safety Functions with Siemens TIA Portal
Refer to the Siemens documentation for more information on distributed safety. Refer to the following documentation for information
on how to use safety inputs and outputs for passivation and reintegration.
Industrial Software SIMATIC Safety - Configuring and Programming . Programming and Operating Manual.
l
Fail-safe Controllers SIMATIC Safety Integrated. Emergency Stop with Acknowledgment in Category 4 according to EN 954-1.
l
Fail-safe Controllers SIMATIC Safety Integrated. Passivation and Reintegration of F-I/O considering as example the ET 200S.
l

Reset Function

6.8
When the safety function is activated, reset the safety option. Depending on the configuration, the following sources can reset the safety
option:
The [Reset] key on the LCP or the digital input of the drive.
l
The reset signal via the safe fieldbus.
l
Parameter 42-24 Restart Behavior determines whether the safety option restarts automatically or waits for a manual reset after the safety
function was activated:
Manual reset behavior - when the safety function is activated, the safety option requires a reset from a reset source before it can run
l
again.
Automatic reset behavior - when the safety function is activated, the safety option can run again when the condition that triggered
l
the safety function ceases. This behavior is only valid for the digital input where this reset behavior is defined. For instance, if there is
an external error, a manual reset from the reset source is required regardless of the setting in Parameter 42-24 Restart Behavior.
