Operating Guide | VLT® Midi Drive FC 280
1
2
3
4
L1
L2
L3
PE
5
L1
L2
L3
PE
IEC 60309

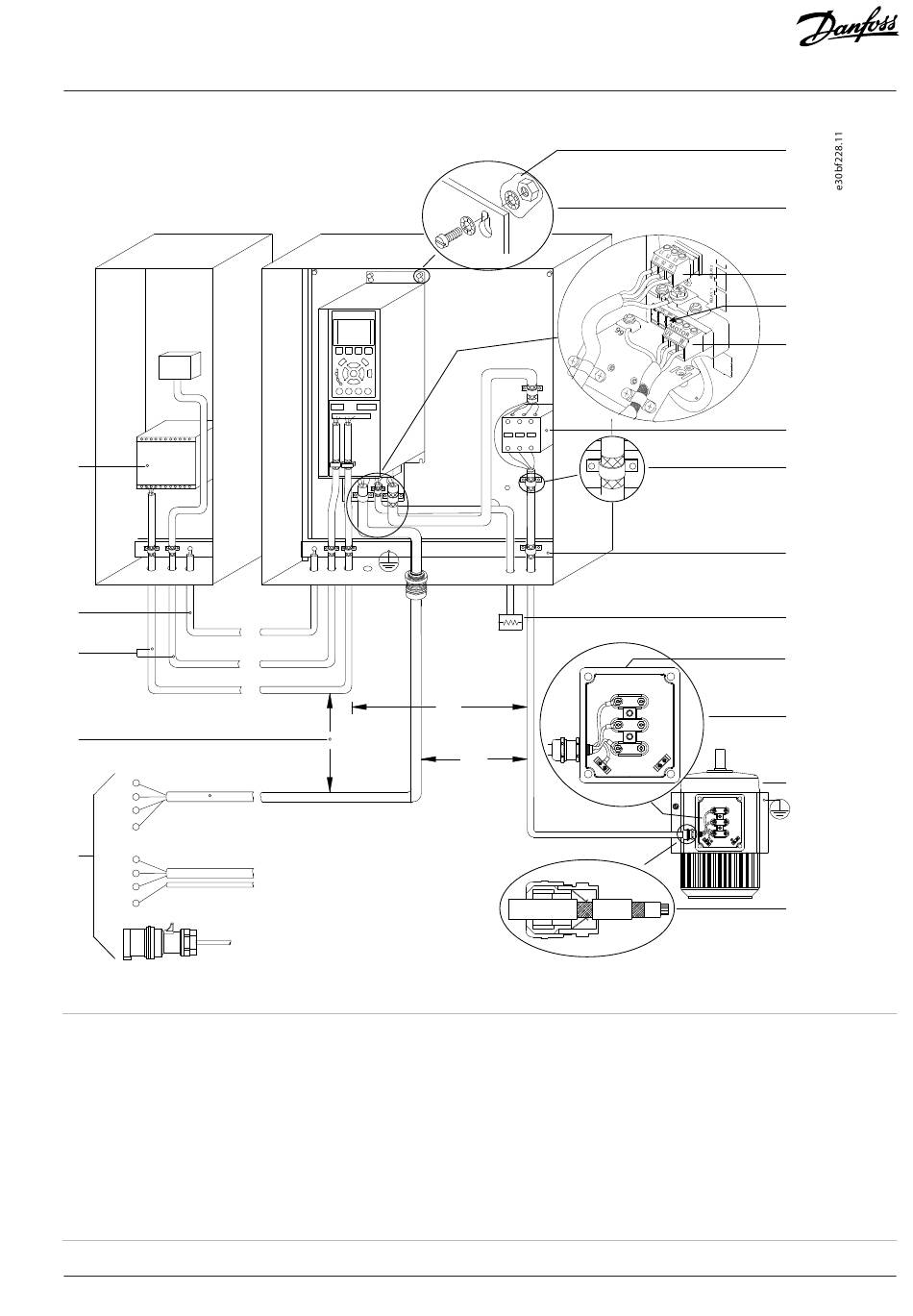

Figure 10: Example of Proper EMC Installation (Generic Drawing)
1
PLC
3 Control cables
5 Mains supply
7
Star washers
9 Motor cable (shielded)
11
Output contactor, and more.
Danfoss A/S © 2024.10
90
4
4
2
Minimum 16 mm
4 Minimum 200 mm (7.87 in) between control cables, motor
cables, and mains cables.
6 Bare (unpainted) surface
8
Brake cable (shielded)
10 Mains cable (unshielded)
12
Cable insulation stripped
Electrical Installation
- LC -
11
12
13
15
u
16
v
w
PE
17
18
2
(6 AWG) equalizing cable
AQ381425076031en-000201 / 130R1223 |
