Operating Guide | VLT® Midi Drive FC 280
FC 280
T37
T38
T39
T20
T12

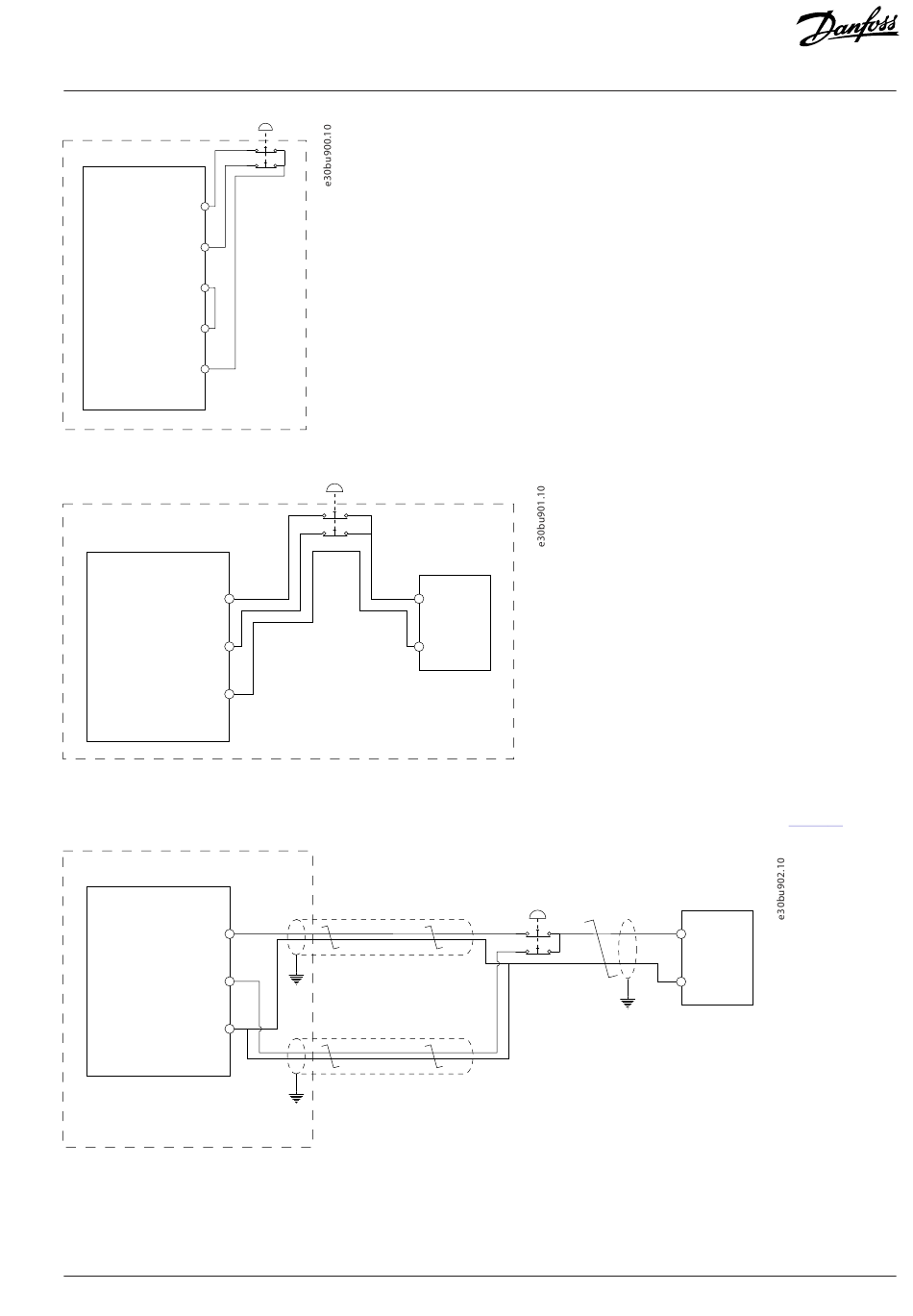

Figure 40: In Cabinet Connection: Use Self 24 V Supply
FC 280
T37
T38
T39
Figure 41: In Cabinet Connection: Use External 24 V Supply
For applications with an emergency button or other equivalent device outside cabinet, see the connection as shown in
FC 280
T37
T38
T39
Figure 42: Outside Cabinet Connection
Danfoss A/S © 2024.10
Cabinet
External power
+24 V
0 V
Cabinet
Cabinet
Safety Functions
Figure
External power
+24 V
0 V
