Operating Guide | VLT® Midi Drive FC 280

Quick Menu on NLCP

5.4.4
5.4.4.1

Operating Quick Menu

The Quick Menu gives easy access to the most frequently used parameters.
1. To enter Quick Menu, press [Menu] until the indicator in the display is placed above Quick Menu.
2. Press [▲] [▼] to select either QM1 or QM2, then press [OK].
3.
Press [▲] [▼] to browse through the parameters in Quick Menu.
4.
Press [OK] to select a parameter.
5. Press [▲] [▼] to change the value of a parameter setting.
6.
Press [OK] to accept the change.
7.
To exit, press either [Back] twice (or 3 times if in QM2 and QM3) to enter Status, or press [Menu] once to enter Main Menu.

Quick Menu Structure

5.4.4.2
QM 1
0-01 [0]
Language
Motor Type
1-10 [0]
PM motor
Asynchronous motor
Motor current 1-24 XXXX A Motor power
1-20 XXXX kW
Motor
1-22 XXXX V
1-25 XXXX RPM
Motor voltage
nominal
speed
Motor cont.
1-26 XXXX 1-23 XXXX Hz
Motor frequency
rated torque
Stator
1-30 XXXX Motor current
1-24 XXXX A
Resistance (Rs)
1-39 XXXX
Motor poles Motor
1-25 XXXX RPM
nominal
speed
1-40 XXXX
Back EMF at
1000 RPM
1-37 XXXX
d-axis
inductance (Ld)
3-02 XXXX Hz Minimum reference
3-03 XXXX Hz
Maximum reference
3-41 XXXX S Ramp 1 ramp-up time
3-42 XXXX S
Ramp 1 ramp-down time
5-12 [2]
Terminal 27 digital input
1-29 [1]
AMA

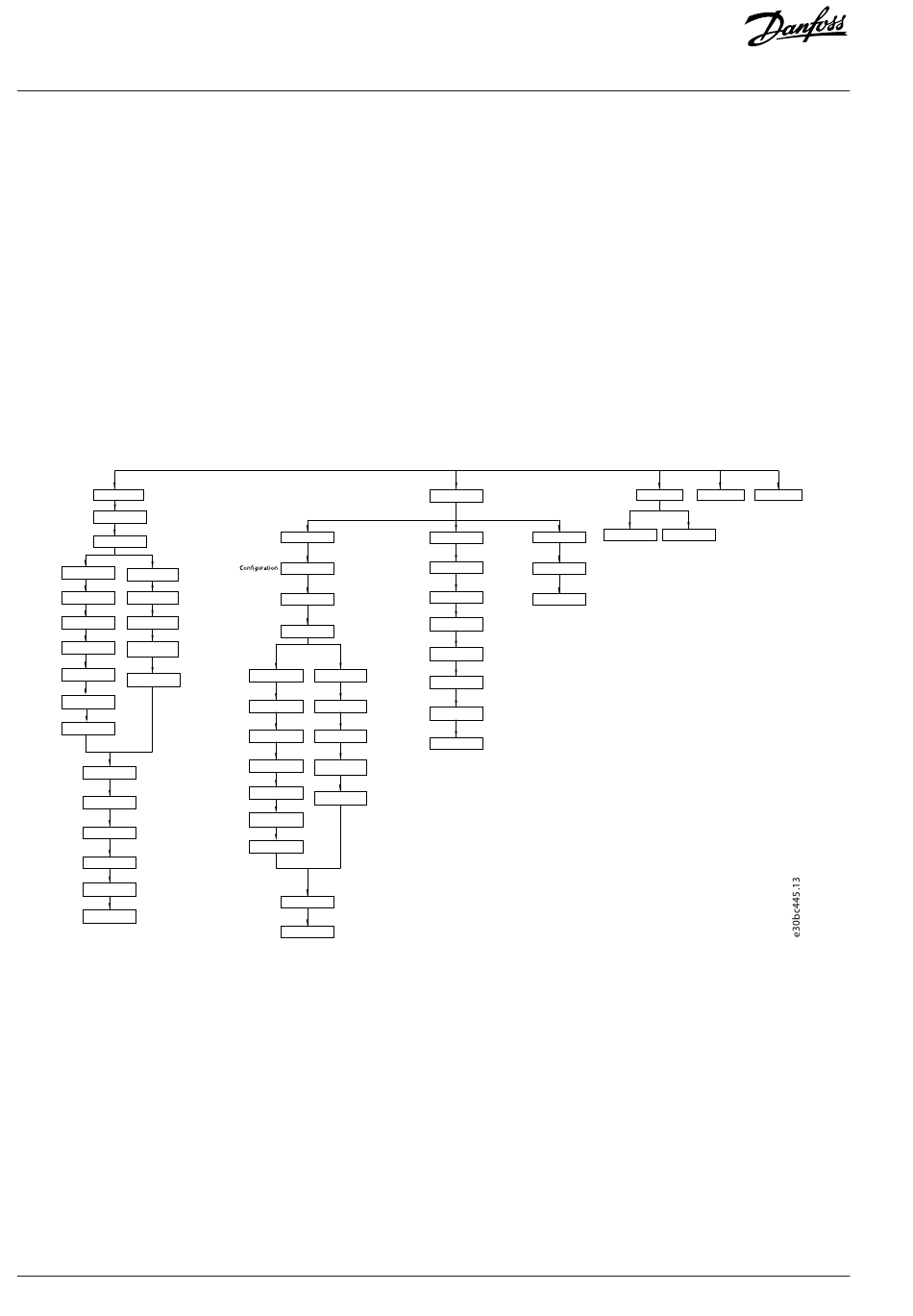

Figure 25: Quick Menu Structure

Main Menu on NLCP

5.4.5

Operating Main Menu

5.4.5.1
The Main Menu gives access to all parameters.
1.
To enter Main Menu, press [Menu] until the indicator in the display is placed above Main Menu.
2.
[▲] [▼]: Browse through the parameter groups.
3. Press [OK] to select a parameter group.
4. [▲] [▼]: Browse through the parameters in the specific group.
5.
Press [OK] to select the parameter.
42 | Danfoss A/S © 2024.10
Basic motor set-up
BMS
1-00 [0]
mode
Motor control
1-01 [1]
principle
Motor type
1-10 [0]
PM motor Asynchronous motor
Motor
1-24 XXXX A 1-20 XXXX kW
Motor power
current
Motor
1-25 XXXX
1-22 XXXX V
RPM
nominal Motor voltage
speed
Motor cont.
1-26 XXXX 1-23 XXXX Hz
Motor frequency
rated torque
Stator
1-30 XXXX
1-24 XXXX A Motor current
Resistance (Rs)
Motor poles 1-39 XXXX Motor
1-25 XXXX
RPM nominal
speed
Back EMF at
1-40 XXXX
1000 RPM
1-37 XXXX
d-axis
inductance (Ld)
4-19 XXXX Hz
Maximum output frequency
4-14 XXXX Hz
Motor speed high limit [Hz]
Changes made
QM 2
Adv. motor set-up Encoder set-up
ES
AMS
Stator Terminal 32/33
1-30 XXXX
5-70 XXXX
Resistance (Rs) pulses per revolution
Terminal 32/33
1-39 XXXX
Motor poles
5-71 [0]
encoder direction
Motor thermal
1-90 [0]
protection
2-10 [0]
Brake function
4-16 XXXX %
Torque limit motor mode
4-17 XXXX % Torque limit generator mode
4-18 XXXX %
Current limit
Commissioning
QM 3 QM 4 QM 5
Alarm log TBD
SFS
L10C
Last 10 changes Since factory setting
AQ381425076031en-000201 / 130R1223
