Cctv Cameras - urmet domus iPercom 1060 Installation And User Manual

7.2.5 CCTV C
AMERAS
Clicking on item "CCTV Cameras" from menu "Tools", all the camera units in the system are displayed.
These can be the cameras of the Call Module 1060/12-13-17-18-23, Entry panel 1060/71-74-75-78,
Modular Calling Station with 1060/48, Entry panel 1060/21-22-33-34.
To display images coming from one of these cameras, follow the procedure below:
• select a calling station;
•
Click on button "Watch & Talk" to see images and establish a bidirectional audio connection
with the camera unit or on button "Watch & Listen" if you only want to view the video
stream and listen to the audio coming from the calling station without the ability to
communicate
In the first case, camera leds will turn on, in the second case they will stay off to keep audio-video
control secret.
Status "Reachable" means that the device is working properly, on the contrary status
"Unreachable" means that the device is not working properly.
78
.

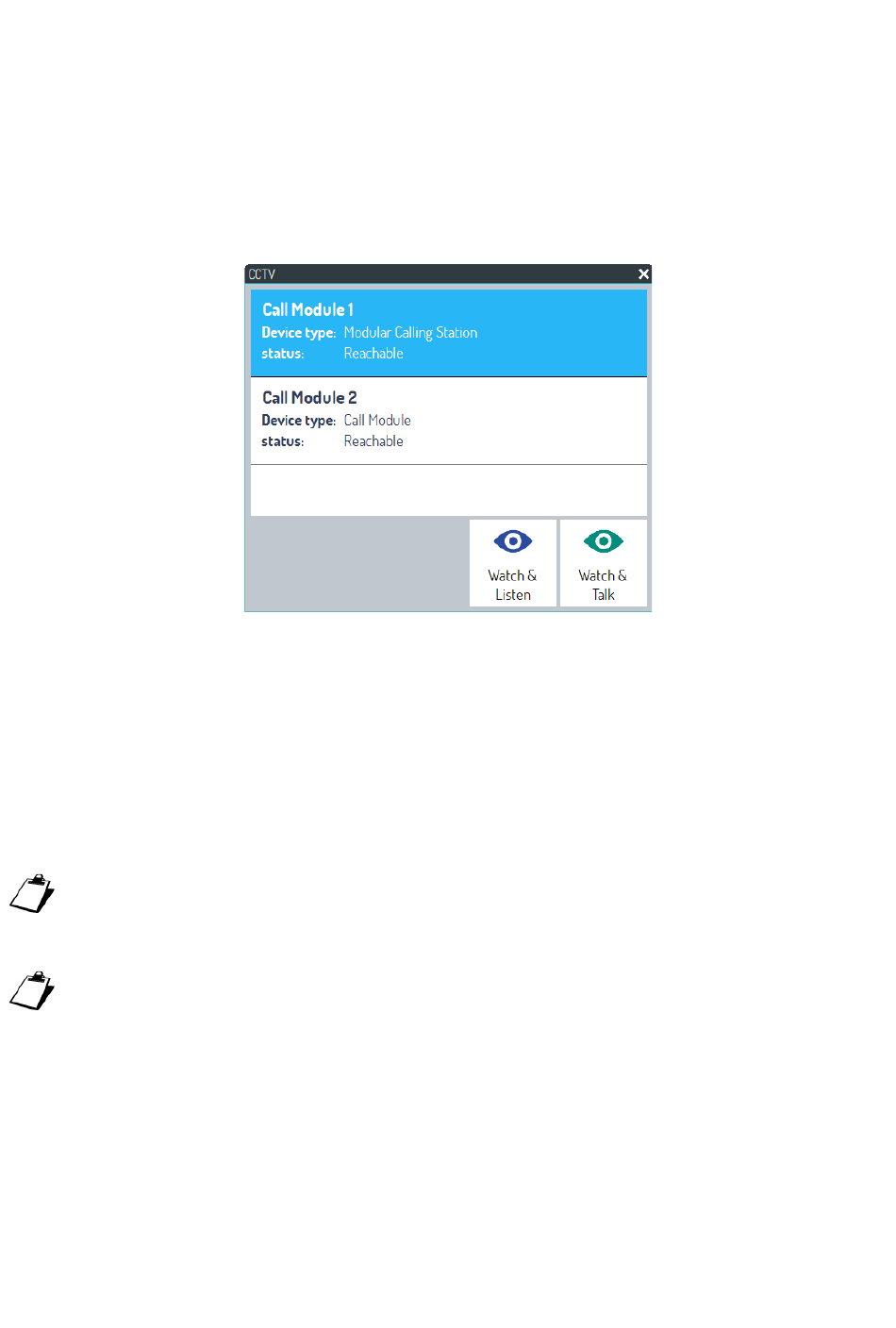

Figure 72: camera list
DS1060-121G
