7.5.2 E
XAMPLE OF MAP CONSTRUCTION OF AN INSTALLATION
We will assume the example of a plant formed of five blocks, with seven stairs each, five floors for each
stair and four apartments on each floor. On each block there is a Call Module 1060/12-13-17-18-23 and
on each stair, there is an Entry Panel 1060/71-74-75-78. In each apartment, there is a 7"
videodoorphone VOG
To enter the map construction phase, click on "Settings" --> "Maps" --> "Edit". The following page will
appear:
Three main zones can be identified:
• on the left there is a navigation module to go to the topological nodes of the plant, i.e. site,
blocks, stairs, floors, and apartments;
• in the middle, there is the area where to load the plan plant images and draw the "sensitive"
areas;
• on the right, there is an area in which you can select and position the plant devices on the
individual maps.
DS1060-121G
7
.

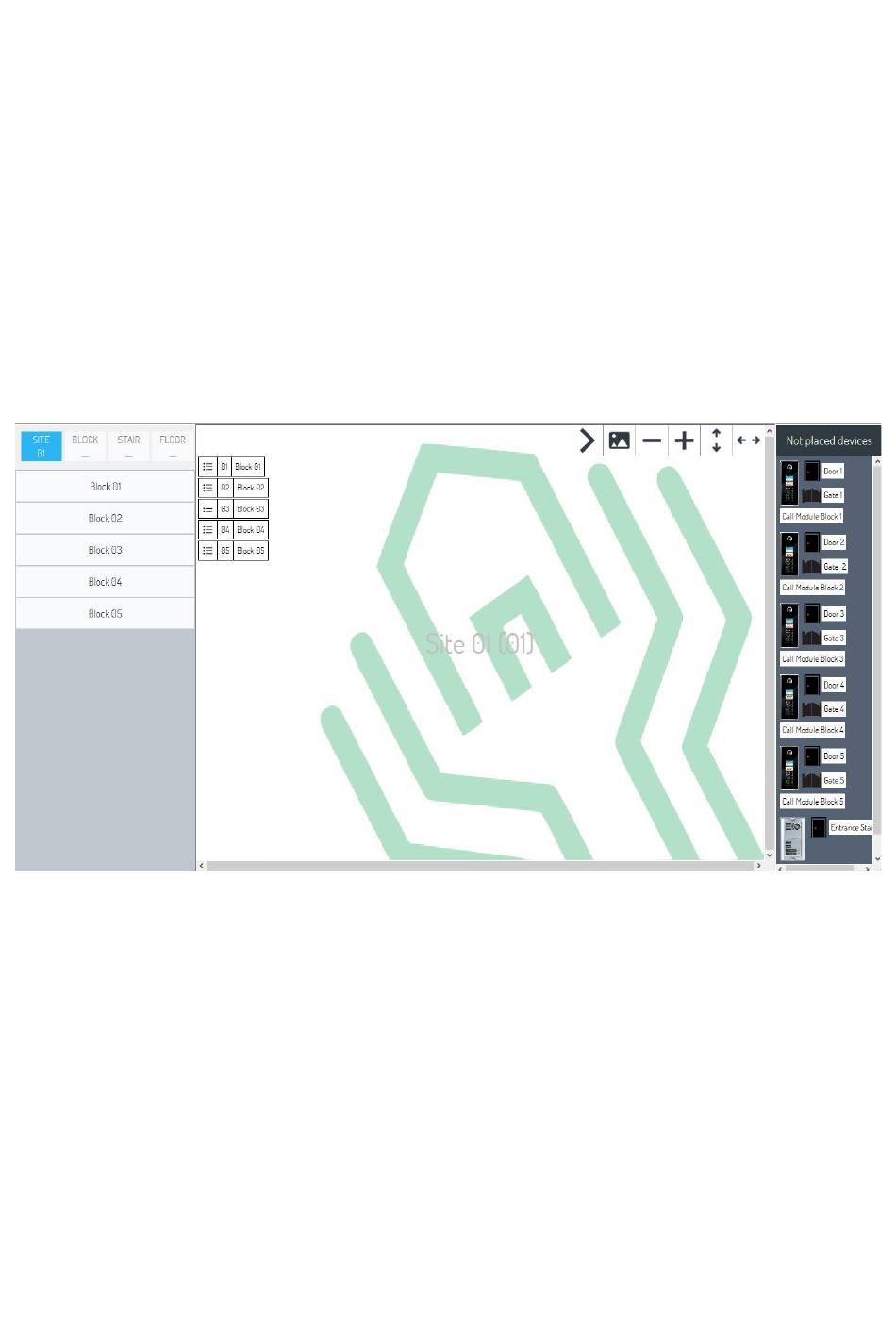

Figure 95: first page of a map
