The video door phone or door phone apartment stations in the apartments are the only devices
that cannot be placed on the maps and therefore do not appear on the right side of the screen.
The three components of the previous screen are now described in greater detail.
N
AVIGATION MODULE
The navigation module shows the topology of the plant. The node selected at the beginning of the map
configuration phase is the node under which the blocks are displayed:
Left-click on one of the five blocks, to see the eight stairs below:
You can view the floors and apartments in the same way. The screen below shows the apartments by
floor, for example:
108

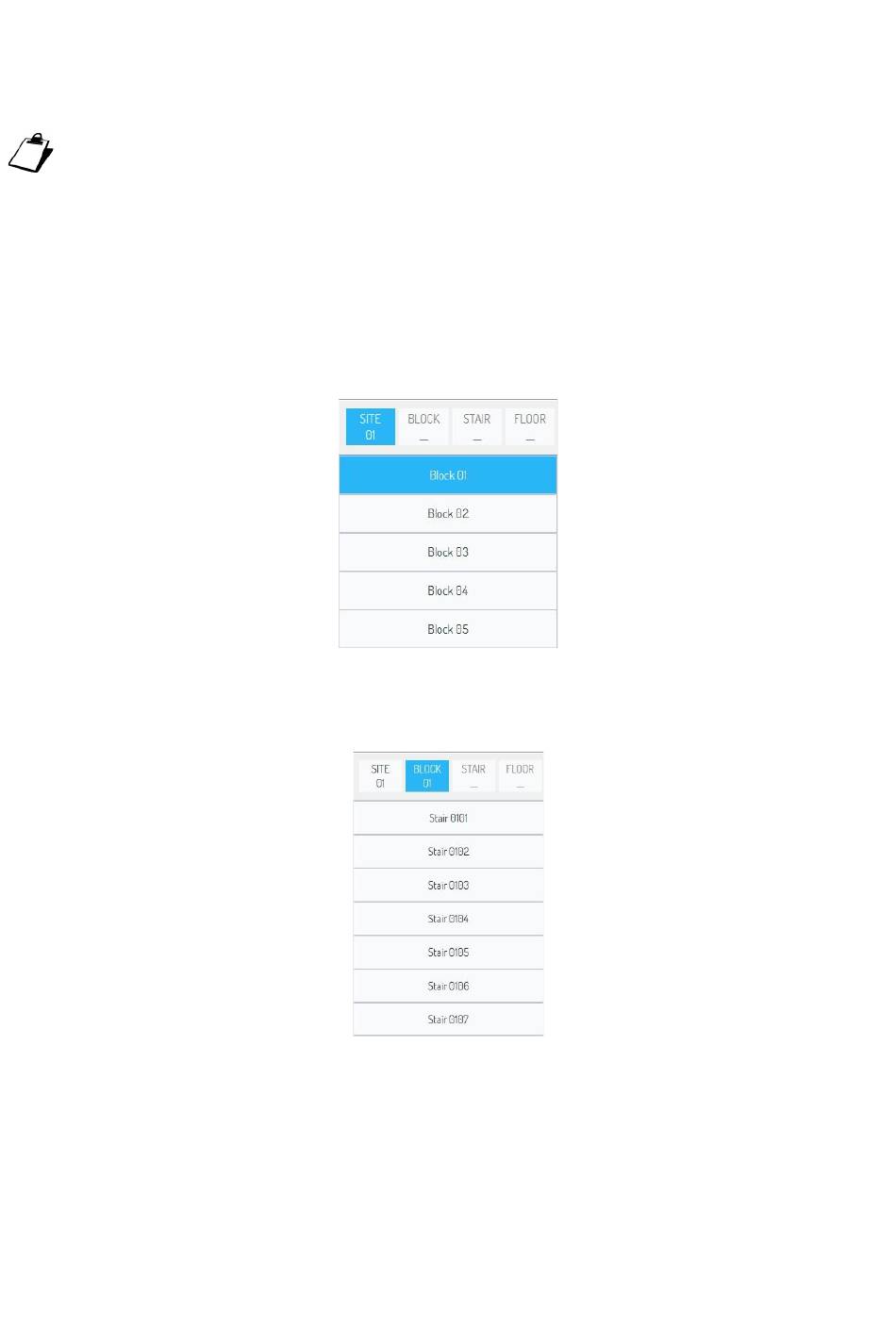

Figure 96: plant navigation (blocks)
Figure 97: plant navigation (stairs)
