urmet domus iPercom 1060 Installation And User Manual page 141

To correctly enter the above values (as an example), follow the instructions below.
o Right-click on the "Open Network and Internet settings" item
your PC monitor). A screen opens with the list of available networks (red box):
o In the screen above, press on the "Change adapter options" item (red arrow);
o In the screen that appears, locate the network card through which your PC is connected to the
IPerCom system and then press the right mouse button;
o Press on the "Properties" item;
o In the window that appears, select the item "Internet Protocol version 4 (TCP/IPv4)" and press
the left mouse button twice;
o Select item "Use the following IP address" and "Use the following DNS server addresses" and
enter values shown in the first window, then confirm with "OK" button;
DS1060-121G

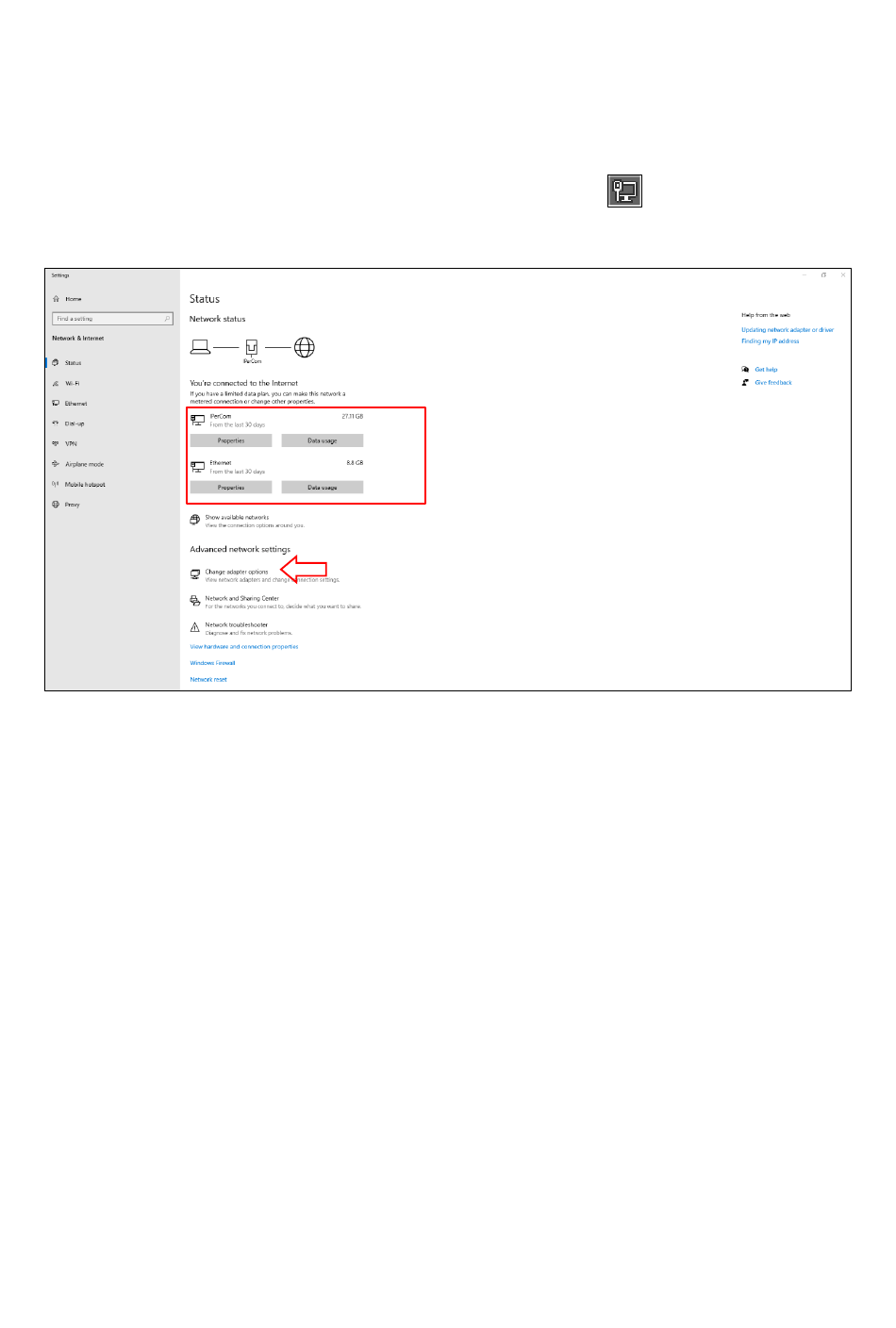

Figure 134: list networks
(icon at the bottom right of
141
