Once positioned on the map, the device disappears from the list to the right of the image above.

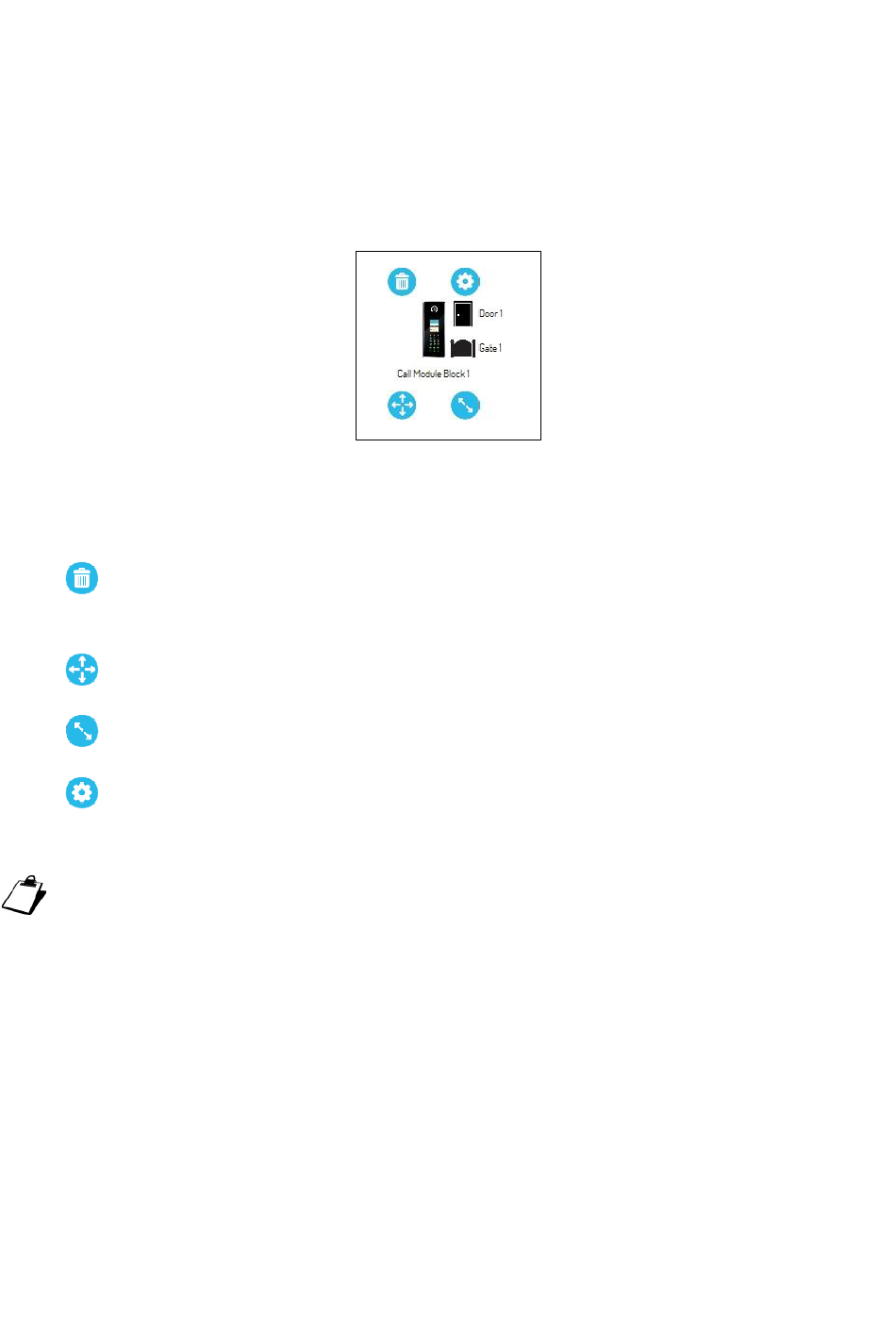

By left-clicking on the newly positioned device or on the respective associated doors (if present), the
four buttons shown in the figure will appear:
The following operations can be performed after clicking on one of the four buttons:
•
: delete the newly positioned device after a confirmation message, taking it back to the list of
devices to be positioned;
•
: move the selected device or the doors associated with it;
•
: increase or decrease the dimensions of the device or the doors associated with it;
•
: set the actions to associate with one or two mouse clicks on the device or on the doors
associated with it.
Deleting a door of a device will have the effect of taking the door back to its starting position, if it
was moved.
DS1060-121G
Figure 111: buttons on the positioned device
