Asynchronous Serial Connectors

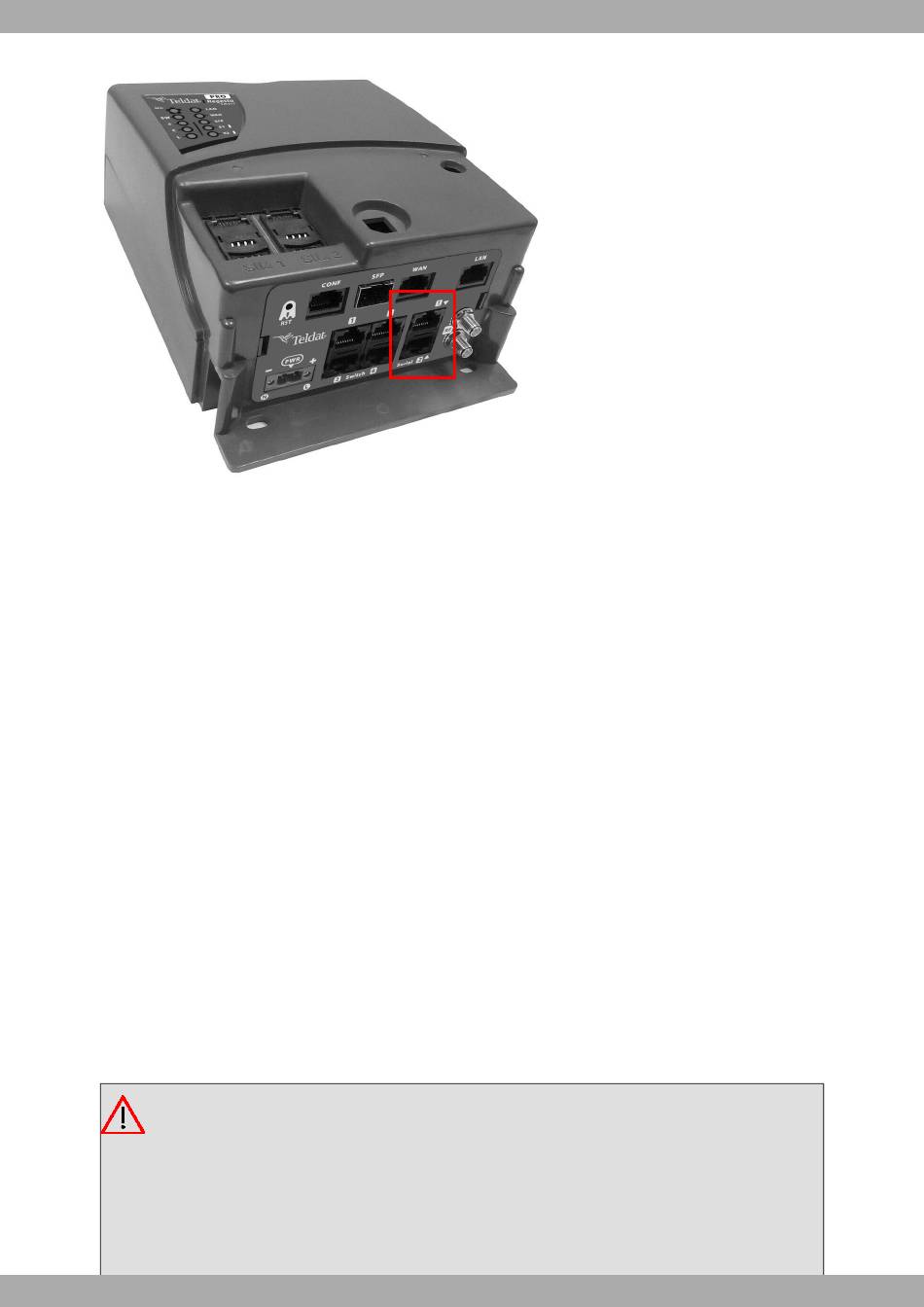

Fig. 15:
These serial ports support RS-232 and/or RS-485/RS-422, and include the following characteristics:
4.2.5.2.1 RS-232 Serial Port
4.2.5.2.2 RS-485/RS-422 Serial Port

4.3 Installing the SIM Card

The Regesta Smart PRO includes a Wireless WAN interface that requires at least one SIM card for operation.
However, in some countries, certain CDMA services offered by specific operators do not require a SIM card.
The Regesta Smart PRO is equipped with two SIM trays located beneath the protective case, labeled SIM1 and
SIM2.
For setups using only one SIM card, we recommend placing it in the SIM1 tray.
Warning
Never install SIM cards while the device is powered on.
Always disconnect the device from the main power supply before inserting or removing SIM cards.
Additionally, ensure the device is disconnected before removing the protective casing to access the
trays.
When inserting the SIM cards, take precautions to prevent electrostatic discharges (ESD).
Regesta Smart PRO
(1) DCE port.
(2) A maximum speed of 115200 bps.
(3) Control signals available. For detailed pin assignments, please refer to the
RS-232 Serial Port Connectors
(4) RJ45 connector.
(1) 2/4 wire configurable via software.
(2) Bus termination configurable via software. For detailed pin assignments,
please refer to the RS-485 Serial Port Connectors
(3) A maximum speed of 115200 bps.
(4) RJ45 connector.
on page 37 section.
on page 37 section.
