- Page 1 Manual Teldat S.A. RS1800 series Installation Manual Copyright© Teldat Dm1010-I Version 1.2 07/2020 Teldat S.A. RS1800 series...
- Page 2 This publication is subject to change. Teldat S.A. offers no warranty whatsoever for information contained in this manual. Teldat S.A. is not liable for any direct, indirect, collateral, consequential or any other damage connected to the deliv- ery, supply or use of this manual.
-
Page 3: Table Of Contents
Chapter 2 RS1800 series ........4 Characteristics . - Page 4 Configuration connector ....... . A.4.7 Power supply connector ....... . RS1800 series...
- Page 5 FCC Radio Information ......40 LTE EM7455 WWAN frequency requirements ..... . RS1800 series...
-
Page 6: I Related Documents
Related Documents Teldat S.A. I Related Documents Teldat Dm704-I Configuration and Monitoring Teldat Dm748-I Software Updating Teldat Dm781-I Cellular Interface Teldat Dm812-I GPS Teldat Dm830-I MNGPLAT Feature bintec Next Generation WLAN Manual RS1800 series... -
Page 7: About This Guide
1 About this Guide Teldat S.A. Chapter 1 About this Guide This is the installation manual for the RS1800 series router and contains information on how to correctly install the device in a working environment. 1.1 Supported devices The information provided in this installation manual only applies to the RS1800 series router. -
Page 8: How Is The Information Organized
1.7 Technical support Teldat S.A. offers technical support. Device software can be upgraded on a regular basis for maintenance purposes and in case new features are developed. -

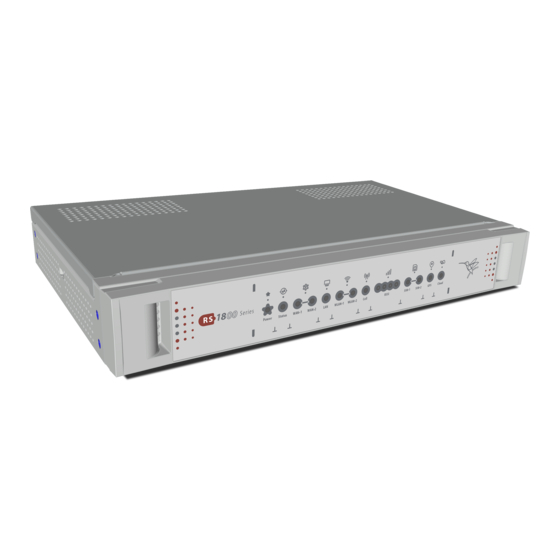

Page 9: Rs1800 Series
2.1.2 Hardware monitoring The LEDs on the front panel are used to monitor the hardware in the RS1800 series router. These LEDs provide visual information on the state of the device and reference the condition of the hardware components, indicating whether or not there is connectivity, data flow, etc. -
Page 10: Components And Power Supply
3 Components and Power Supply Teldat S.A. Chapter 3 Components and Power Supply The following chapter provides detailed information on the chassis of the RS1800 series router and its components. This information includes: • Components. • Information on assembly. • Power supply. - Page 11 • Steady. WCDMA (UMTS / HSDPA) connection. Green -> Connected. Blinking: connection data activity. RSSI. Off -> No coverage. Coverage indication 1-to-4 LEDs -> Level of coverage. SIM-1 Off -> SIM-1 not used. ON -> SIM-1 in use. RS1800 series...
-
Page 12: Rear Panel
Cloud controller. Red -> Cloud registration error. 3.1.2 Rear panel The following figure shows the rear panel. Here you will find the majority of the RS1800 series router connectors. Rear panel Fig. 3: The following table provides information on each connector, as well as a description:... - Page 13 WAN SFP connector on page 29 WAN SFP interface on page 31 Aux. Provides access to the RS1800 series local console for configuration and monitoring purposes. For more information on the Aux connector, refer to: Connecting for configuration on page 18...
- Page 14 - Steady: Not transferring data. - Blinking: Transferring data. None The interface is either unavailable, not installed or not registered. The following figure shows the router's WAN LED indicators (only for the Base-T connector): WAN LEDs Fig. 5: WAN LED indicators Description RS1800 series...
-
Page 15: Side Panels
Left and right side panels Fig. 6: The connectors are as follows: Side panel connectors Item Description Aux 2 and Aux 3 connectors. Reserved for future use. 3.1.4 Underside panel The following components are located on the underside panel: RS1800 series... -
Page 16: Mounting An Anti-Theft Security Cable
Fig. 8: 3.3 Rack installation The RS1800 series device can be installed in a 19” rack. The rack mounting brackets and screws are not provided by default and must be acquired separately. Both mounting brackets are attached to the device by means of 5 screws, as shown in the following figure: Rack anchors Fig. -
Page 17: Standalone
3.3.1 Standalone RS1800 series devices can be placed as standalones on a flat, stable surface. The adhesive rubber feet must be stuck to the underside panel to prevent the router from sliding. Make sure there is enough space around the router (for ventilation purposes) and check that the power cord and data cables can easily reach it. -
Page 18: Rst Button
• The PWR LED (green) will light up and LED 'S' will begin to blink (amber). It will carry on blinking for 10 seconds. • To boot the device with the default configuration, release the RST button while LED 'S' is still blinking (i.e., before the 10-second period expires). RS1800 series... -
Page 19: Data Connections
The RS1800 series router has the following data connections. 3.7.1 4-port Ethernet switch connections The RS1800 series router incorporates a 4-port 10/100/1000 Base-T switch with automatic MDI/MDIX to connect to a local area network (LAN). Please pay careful attention to the labeling to avoid mistaking this switch for other types of ports:... -
Page 20: Wan Connections
3.7.2 WAN connections The RS1800 series has 4 Ethernet interfaces for WAN connection. These ports have 2 connectors - SFP for an op- tical link and RJ45 for a 10/100/1000 Base-T link - but they cannot work simultaneously. These interfaces are totally independent from the switch and are handled like every other interface. - Page 21 To assemble or dismantle the antennas, simply screw or unscrew them into or out of the connectors labeled Cell (located on the rear and side panels of the router). Installing these antennas in the RS1800 series is essential to improve the quality of the signal received and transmit- ted by the cellular model.
-
Page 22: Connecting The Gps Antenna
For further information on GPS configuration, please see the following manual: Teldat Dm812-I GPS. 3.7.5 Wireless LAN internal antennas The RS1800 series has two integrated antennas for a Wireless LAN module covering both the 2.4 GHz and 5 GHz bands. -
Page 23: Connecting For Configuration
Fig. 17: 3.8 Installing the SIM card Depending on the model, the RS1800 series router has a Wireless WAN interface that may need a SIM card (or two) to operate. The RS1800 series device is equipped with two SIM trays located on its rear panel, as shown in the following figure. - Page 24 Press to open the SIM tray cover Fig. 20: (3) Insert the SIM card into the selected tray Press to insert the SIM card into the tray Fig. 21: (4) Press to remove the SIM card from the tray RS1800 series...
- Page 25 Always disconnect the device form the main power supply before installing the SIM cards. Always disconnect the device before removing the casing to access the trays. When inserting the SIM cards, please protect yourself against electrostatic discharges (ESD). Do not touch the SIM card connectors. RS1800 series...
-
Page 26: Compliance
Tres Cantos, Madrid, Spain International Phone +34 91 807 65 65 4.2 Risk identification WARNING: Signal word used to designate a potentially dangerous situation that may cause severe injuries or death if not avoided. 4.3 Safety warnings Connecting Disconnecting RS1800 series... - Page 27 4 Compliance Teldat S.A. RS1800 series...
-
Page 28: Weee Information
Regulation (EC) No 278/2009, the instruction manuals for end-users shall include the following information: Model A0403TD Manufacturer Name Atech OEM Inc. Manufacturer Address 2F No. 135 Lane 235 Baociao Rd, Sindian City Taipei County, 23145 Input Voltage 100-240 Vac Input AC frequency 50-60 Hz RS1800 series... -
Page 29: Ec Declaration Of Conformity (Non-Radio Version)
Richtlinie 2009/125/EG (ErP) Richtlinien 2011/65/EU und 2015/863/EU (RoHS) des Europäischen Parlaments. Spanish (ES) Español Por la presente, Teldat S.A. declara que el tipo de equipo de telecomunicaciones RS1800 series es conforme con: Directiva 2014/30/UE (EMC) Directiva 2014/35/UE (LVD) Directiva 2009/125/CE (ErP) Directivas 2011/65/UE y 2015/863/UE (RoHS) del Parlamento Europeo y del Consejo. -
Page 30: Ec Declaration Of Conformity (Radio Version)
In accordance with Article 10 of 2014/53/EU, we inform you that national restrictions and requirements may apply for authorization purposes. These can change with time. Teldat S.A. recommends that you check with local authorities for the latest status of national regulations. -
Page 31: Fcc Statements
WI-FI specifications on page 4.14 Intended use of the equipment The RS1800 series can be deployed as a Customer Premises Equipment (CPE) in enterprise branch offices or in environments managed by the service provider. This product must only be used indoors. -
Page 32: Appendix A Technical Information
If the device has a cellular interface, check the SIM installation, PIN setting and network configuration: APN and Authentication parameters. For further information, please see manual: “Teldat Dm781-I Cellular Interface ” . No RSSI LED lights up. Check the antenna connection. Make sure the SMA connector is correctly threaded and tightened. -
Page 33: Updating The Software
Teldat S.A. A.2 Updating the software The RS1800 series router can be updated to new versions. Please contact your dealer for further details on new re- leases. There are several ways to update a Teldat router. For further information, please see manual: “Teldat Dm748-I Soft- ware Updating”... -
Page 34: Connectors
FE Signals GE Signals BI-DA+ BI-DA+ BI-DA- BI-DA- BI-DB+ BI-DB+ BI-DC+ BI-DC- BI-DB- BI-DB- BI-DD+ BI-DD- A.4.3 WAN SFP connector Standard SFP connector A.4.4 WWAN connector Devices equipped with this interface have up to four SMA female connectors installed. RS1800 series... -
Page 35: Gps Connector
Devices equipped with this interface have one SMA female connector installed. SMA Female Internal RF in/out External A.4.6 Configuration connector RJ45 CONFIGURATION RJ45 PIN CONF A.4.7 Power supply connector Jack 5.5/2.5mm Internal -> POSITIVE External -> NEGATIVE A.5 Technical specifications RS1800 series... -
Page 36: Hardware Architecture
CONNECTOR RJ45 female. A.5.4 WAN SFP interface STANDARDS 802.1Q (VLAN). 1000-Base-X. MSA and SFF 8472 compliant. SPEED 1000 Mbps full duplex. TYPES LX/LH (single-mode 1310 nm). SX (multi-mode 850 nm). ZX (single-mode 1550 nm). CONNECTOR Standard SFP connector. RS1800 series... -
Page 37: Wireless Wan Interface
• B38 + B38 • B39 + B39 • B40 + B40 • B41 + B41 Speed (DL/UL) EM7455: • LTE Cat 6. • FDD. 300Mbps/50Mbps • TDD: 222Mbps/26Mbps • HSPA+ Cat 24/6: 42Mbps/5.76Mbps EM7430: • LTE Cat 6. RS1800 series... -
Page 38: Gps Interface
• GLONASS (G1, 1559-1610 MHz) • BeiDou (B1, 1559-1610 MHz) • Galileo (E1, 1559-1610 MHz) • 16 GPS SATELLITE CHANNELS • 14 GLONASS • 16 BeiDou • 12 Galileo Simultaneous tracking. CONNECTOR SMA female. ANTENNA Active and Passive. RS1800 series... -
Page 39: Wireless Lan Interface (Radio 1)
800ns to 400ns Output power limitation Adjustable Output Power @ 2.4 GHz Max. 16,35 dBm 20 MHz / (40MHz with coexistence check under preparation) Bandwidth (802.11n) Integrated directional dual-band MIMO array with 3.65 dB peak gain @ 2.4 GHz Antenna RS1800 series... -
Page 40: Wireless Lan Interface (Radio 2)
Max. 18,12 dBm (200mW EIRP) Bandwidth (802.11ac) 20/40/80 MHz Integrated directional dual-band MIMO array with 4.88 dB peak gain @ 5 GHz Antenna A.5.9 Configuration interface LOCAL TERMINAL RS-232 9600-8-N-1 without flow control. CONNECTOR RJ45 female on the rear panel. RS1800 series... -
Page 41: Power Supply
No Wi-Fi versions: 310 x 180 x 45 mm. Wi-Fi versions: 310 x 197 x 45 mm. WEIGHT 2.04 Kg. A.5.12 Environmental specifications TEMPERATURE OPERATING NORMALLY: 0 ºC to 45 ºC. STORED: -25 ºC to 70 ºC. RELATIVE HUMIDITY 5 % to 90 %. RS1800 series... -
Page 42: Appendix Bce Radio Information
Band 1 Tx: 1920-1980 MHz +23 dBm ± 1 dB Rx: 2110-2170 MHz Band 3 Tx: 170–1785 MHz +23 dBm ± 1 dB Rx: 1805–1880 MHz Band 8 Tx: 880–915 MHz +23 dBm ± 1 dB Rx: 925–960 MHz RS1800 series... -
Page 43: Wi-Fi Specifications
(channel 106), 5610 MHz (channel 122), 5775 MHz (channel 155). Number of Channels EU: 802.11a/n-HT20/ac-VHT20: 19 EU: 802.11n-HT40/ac-VHT40: 9 EU: 802.11ac-VHT80: 4 USA: 802.11a/n-HT20/ac-VHT20: 24 USA: 802.11n-HT40/ac-VHT40: 11 USA: 802.11ac-VHT80: 5 Type of modulation 2.4 GHz: 802.11b: DSSS 802.11g/n: OFDM. 5.0 GHz: RS1800 series... - Page 44 CE Radio Information Teldat S.A. 802.11a/n/ac: OFDM. RS1800 series...
-
Page 45: Appendix Cfcc Radio Information
0.234 W 1710.0 - 1755.0 MHz 0.145 W 1850.0 - 1915.0 MHz 0.251 W 1850.0 - 1915.0 MHz 0.248 W 1850.0 - 1915.0 MHz 0.227 W 2305.0 - 2315.0 MHz 0.197 W 2305.0 - 2315.0 MHz 0.191 W RS1800 series... - Page 46 0.197 W 2496.0 - 2690.0 MHz 0.171 W 2496.0 - 2690.0 MHz 0.109 W 2500.0 - 2570.0 MHz 0.196 W 2500.0 - 2570.0 MHz 0.133 W 2500.0 - 2570.0 MHz 0.167 W 2500.0 - 2570.0 MHz 0.105 W RS1800 series...
