Summary of Contents for Teldat M8-Smart

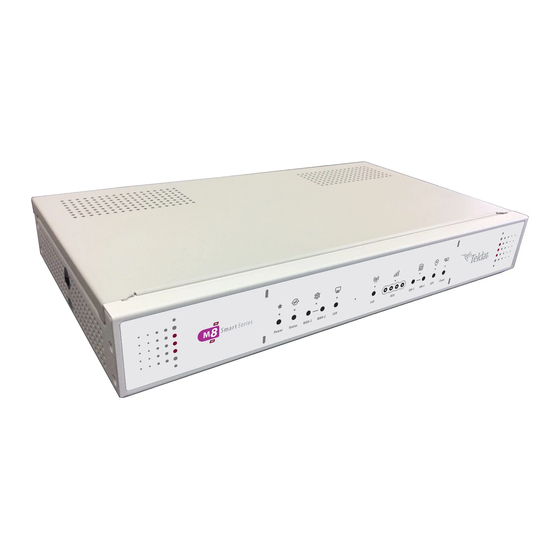

- Page 1 Manual Teldat S.A. M8-Smart Installation Manual Copyright© Teldat Dm654-I Version 1.1 05/2019 Teldat S.A. M8-Smart...
- Page 2 This publication is subject to change. Teldat S.A. offers no warranty whatsoever for information contained in this manual. Teldat S.A. is not liable for any direct, indirect, collateral, consequential or any other damage connected to the deliv- ery, supply or use of this manual.
-
Page 3: Table Of Contents
M8-Smart ........4... - Page 4 Table of Contents Teldat S.A. 3.7.4 Connecting the GPS antenna ......3.7.5 Wireless LAN internal antennas .
- Page 5 Table of Contents Teldat S.A. A.5.2 LAN Interface ........
-
Page 6: I Related Documents
Related Documents Teldat S.A. I Related Documents Teldat Dm704-I Configuration and Monitoring Teldat Dm748-I Software Updating Teldat Dm781-I Cellular Interface Teldat Dm812-I GPS Teldat Dm830-I MNGPLAT Feature bintec Next Generation WLAN Manual M8-Smart... -
Page 7: About This Guide
1 About This Guide Teldat S.A. Chapter 1 About This Guide This installation guide for the M8-Smart router contains information on how to correctly install the device in a working environment. 1.1 Supported Devices The information provided in this installation guide only applies to the M8-Smart router. -
Page 8: Technical Support
1 About This Guide Teldat S.A. 1.7 Technical Support Teldat S.A. offers a technical support service. Device software can be upgraded on a regular basis for maintenance purposes and in case new features are developed. Contact information: Web: http://www.teldat.com - Email: support@teldat.com Tel.: +34 918 076 565 - Fax: +34 918 076 566... -
Page 9: M8-Smart
2.1.2 Hardware Monitoring The LEDs on the front panel are used to monitor the hardware in the M8-Smart router. These LEDs provide visual information on the state of the device and reference the condition of the hardware components, indicating whether there is connectivity, data flow, etc. -
Page 10: Components And Power Supply
3 Components and Power Supply Teldat S.A. Chapter 3 Components and Power Supply The following chapter provides detailed information on the chassis of the M8-Smart router and its components. This information includes: • Components. • Information on assembly. • Power supply. - Page 11 3 Components and Power Supply Teldat S.A. Amber (blink) -> Default configuration. WAN-1 Base-T / SFP Off -> No link or not used. Green -> Link (1G). Blinking: traffic activity. Amber -> Link (<1G). Blinking: traffic activity. Red -> Error. Interface failure.
-
Page 12: Rear Panel
Cloud controller. Red -> Cloud registration error. 3.1.2 Rear Panel The following figure shows the rear panel. Here you will find the majority of the M8-Smart router connectors. Rear panel Fig. 16: The following table provides information on each connector, as well as a description:... - Page 13 WAN SFP Connector on page 29 WAN SFP Interface on page 31 Aux. Provides access to the M8-Smart local console for configuration and monit- oring purposes. For more information about the Aux connector, refer to: Connecting for Configuration on page 17...
- Page 14 3 Components and Power Supply Teldat S.A. Cell connectors. Depending on the model. For more information about Cellular interface, refer to: WWAN Antenna Connection (Cell connector) on page 15 WWAN Connector on page 29 Wireless WAN interface on page 33 GPS connector.
-
Page 15: Side Panels
3 Components and Power Supply Teldat S.A. WAN LEDs Fig. 18: WAN LED indicators Description Yellow Connected to 10 M: - Steady: Not transferring data. - Blinking: Transferring data. Yellow + Green Connected to 100 M: - Steady: Not transferring data. -
Page 16: Underside Panel
Fig. 21: 3.3 Rack installation The M8-Smart device can be installed in a 19” rack. The necessary strips and screws are not provided by default and must be acquired separately. Both strips are attached to the device by means of 5 screws, as shown in the following figure:... -
Page 17: Standalone
Fig. 22: 3.3.1 Standalone M8-Smart devices can be placed as standalones on a flat, stable surface. The adhesive rubber feet must be stuck to the underside panel to prevent the router from sliding. Make sure there is enough space around the router (for ventilation purposes) and check that the power cord and data cables can easily reach it. -
Page 18: Power Source
3 Components and Power Supply Teldat S.A. 3.5.1 Power Source To connect the power supply to the device, please follow the steps set out in Connecting on page 13. To avoid electric shocks, residual current circulation and other unwanted effects that affect communications, the fol-... -
Page 19: Default Configuration
3.7.2 WAN Connections The M8-Smart has 4 Ethernet interfaces for WAN connection. These ports have 2 connectors - SFP for an optical link and RJ45 for a 10/100/1000 Base-T link - but they cannot work simultaneously. These interfaces are totally inde- pendent from the switch and are handled as every other interface. -
Page 20: Wwan Antenna Connection (Cell Connector)
EN 60825-1:2007 standard 3.7.3 WWAN Antenna Connection (Cell connector) The M8-Smart has two connectors for WWAN antennas in the rear panel and two connectors for WWAN antennas in the side panels (on models equipped with this interface). To assemble or dismantle the antennas, simply screw or unscrew them into or out of the connectors labeled Cell (located on the rear panel and side panels of the router). - Page 21 To achieve optimum performance, the radio frequency accessories installed (antennas and cables) should be those recommended by Teldat. Teldat offers a range of suitable accessories (90º mount antennas, antennas for outdoor installation, antennas for ceiling installation, extension cables, etc.) for different locations.
-
Page 22: Connecting The Gps Antenna
For further information on GPS configuration, please see the following manual: Teldat Dm812-I GPS. 3.7.5 Wireless LAN internal antennas The M8-Smart has two integrated antennas for a Wireless LAN module covering both the 2.4 GHz and 5 GHz bands. The WLAN module is internal and is only available for the M8-Smart-WiFi version. -
Page 23: Installing The Sim Card
The M8-Smart is equipped with two Wireless WAN interfaces that may need a SIM card (or two) to operate. Certain services (CDMA) provided by some carriers in several countries do not require SIM cards. The M8-Smart is equipped with two SIM trays located on the rear panel of the router, as shown in the following fig- ure. - Page 24 3 Components and Power Supply Teldat S.A. Press to open the SIM trays cover Fig. 34: (3) Insert the SIM card into the selected tray Press to insert the SIM card into the tray Fig. 35: (4) Press to remove the SIM card from the tray...
- Page 25 3 Components and Power Supply Teldat S.A. Press to remove the SIM card from the tray Fig. 36: Warning Never install the SIM cards when the device is switched on. Always disconnect the device form the main power supply before installing the SIM cards.
-
Page 26: Compliance
4 Compliance Teldat S.A. Chapter 4 Compliance 4.1 Manufacturer Information Brand Teldat Manufacturer Teldat S.A. Country Spain Postal Address Isaac Newton, 10 Parque Tecnológico de Madrid, 28760 Tres Cantos, Madrid, Spain International Phone +34 91 807 65 65 4.2 Risk identification WARNING: Signal word used to designate a potentially dangerous situation that may cause severe injuries or death if not avoided. - Page 27 4 Compliance Teldat S.A. M8-Smart...
-
Page 28: Weee Information
4 Compliance Teldat S.A. 4.4 WEEE Information The waste container symbol with the >X< indicates that the device must be dis- posed of separately from normal domestic waste at the end of its useful service life. Please use an appropriate waste disposal facility. -
Page 29: Ec Declaration Of Conformity (No Radio Version)
Richtlinie 2009/125/EG (ErP) Richtlinien 2011/65/EU und 2015/863/EU (RoHS) des Europäischen Parlaments. Spanish (ES) Español Por la presente, Teldat S.A. declara que el tipo de equipo de telecomunicaciones M8-Smart es conforme con: Directiva 2014/30/UE (EMC) Directiva 2014/35/UE (LVD) Directiva 2009/125/CE (ErP) Directivas 2011/65/UE y 2015/863/UE (RoHS) del Parlamento Europeo y del Consejo. -
Page 30: Ec Declaration Of Conformity (Radio Version)
In accordance with Article 10 of 2014/53/EU, we inform you that national restrictions and requirements may apply when it comes to authorization. These can evolve with time. Teldat S.A. recommends that you check with local au- thorities what the latest status of national regulations is. -
Page 31: Interference
38. 4.13 Intended use of the equipment The M8-Smart can be deployed as a Customer Premises Equipment (CPE) in enterprise branch offices or in envir- onments managed by the service provider. This product must only be used indoors. -
Page 32: Appendix A Technical Information
If the device has a cellular interface, check the SIM installation, PIN setting and network configuration: APN and Authentication parameters. For further information, please see manual: “Teldat Dm781-I Cellular Interface ” . None RSSI LED lights up. Check the antenna connection. Make sure the SMA connector is correctly threaded and tightened. -
Page 33: Updating The Software
A.3 Connecting to the device A.3.1 Connecting using the local console (Aux connector) The M8-Smart router has a RJ45 female connector on the front panel, known as Aux, which provides access to the device's local console. Aux Connector Fig. -
Page 34: Connectors
Technical Information Teldat S.A. For further information, please see manual: “Teldat Dm704-I Configuration and Monitoring” . A.4 Connectors A.4.1 LAN Connector (Switch) RJ45 LAN RJ45 PIN FE Signals GE Signals BI-DA+ BI-DA+ BI-DA- BI-DA- BI-DB+ BI-DB+ BI-DC+ BI-DC- BI-DB- BI-DB-... -
Page 35: Gps Connector
Technical Information Teldat S.A. SMA Female Internal RF in/out External A.4.5 GPS Connector Devices equipped with this interface have one SMA female connector installed. SMA Female Internal RF in/out External A.4.6 Configuration Connector RJ45 CONFIGURATION RJ45 PIN CONF A.4.7 Power Supply Connector Jack 5.5/2.5mm... -
Page 36: Hardware Architecture
Technical Information Teldat S.A. A.5.1 Hardware Architecture PROCESSORS Freescale QorIQ. MEMORY 1 Gbyte in SDRAM. STORAGE UNIT FLASH Memory (32 Mbytes). A.5.2 LAN Interface PROTOCOLS Ethernet (802.3). PORTS 4 port switch managed with MDI/MDX auto-detection. SPEED 10/100/1000 Mbps (Base-T). CONNECTOR RJ45 female. -
Page 37: Wireless Wan Interface
Technical Information Teldat S.A. A.5.5 Wireless WAN interface WWAN Standard/Bands EM7455: • LTE: • FDD. B1-B5, B7, B12, B13, B17, B20, B25, B26, B29, B30 • TDD: B41 • 2xCA : • B1 + B8; • B2 + B2/B5/B12/B13/B29; • B3 + B7/B20;... -
Page 38: Gps Interface
Technical Information Teldat S.A. • FDD. 300Mbps/50Mbps • TDD: 222Mbps/26Mbps • HSPA+ Cat 24/6: 42Mbps/5.76Mbps GNSS GPS/GLONASS/BeiDou/Galileo/QZSS CONNECTOR Three SMA connectors. SIM Slots 2 Mini-SIM (2FF) ISO/IEC 7810:2003, ID-000 (1.8V / 3V) ANTENNA Devices equipped with this interface are shipped with two multiband swivel-mount dipole antennas. -
Page 39: Wireless Lan Interface (Radio 1)
Technical Information Teldat S.A. A.5.7 Wireless LAN Interface (Radio 1) WLAN standards 802.11b; 802.11g; 802.11n (MIMO 2x2) 2.4 GHz Frequency bands 2.4 GHz in- 2.4 GHz Indoor/Outdoor (2412-2484 MHz) max. 100 mW EiRP (20dBm). door/outdoor (EU) WLAN modes 2.4 GHz Operation: 802.11b only; 802.11g only; 802.11b/g; 802.11b/g/n;... -
Page 40: Wireless Lan Interface (Radio 2)
Technical Information Teldat S.A. A.5.8 Wireless LAN Interface (Radio 2) WLAN standards IEEE 802.11ac/an; MU-MIMO 2x2; 20/40/80 MHz; 5 GHz Frequency bands 5 GHz indoor 5 GHz indoor (5150-5350 MHz) max. 200 mW EiRP allowed (EU) Frequency bands 5 GHz out- 5 GHz outdoor (5470-5725 MHz) max. -
Page 41: Dimensions And Weight
Technical Information Teldat S.A. A.5.11 Dimensions and weight TYPE Desktop / chassis for a 1 U high Rack mount enclosure. LENGTH x WIDTH x HEIGHT No WiFi version: 310 x 180 x 45 mm. WiFi version: 310 x 197 x 45 mm. -
Page 42: Appendix Bce Radio Information
CE Radio Information Teldat S.A. Appendix B CE Radio Information This section includes some of the European radio frequencies that comply with the CE regulatory requirements. Cus- tomers may obtain additional country-specific bands upon request. B.1 RF WAN specifications LTE/WCDMA connectivity is provided by Sierra Wireless modules. The exact modules installed will depend on your particular router model. -
Page 43: Wifi Specifications
CE Radio Information Teldat S.A. Technology: UMTS(WCDMA)/ HSDPA/ HSUPA/ HSPA+/ DC-HSPA+. EM7430 specifications. Bands Frequencies Conducted Transmit Power Band 1 Tx: 1920–1980 MHz +23 dBm ± 1 dB Rx: 2110–2170 MHz Band 8 Tx: 880–915 MHz +23 dBm ± 1 dB Rx: 925–960 MHz... -
Page 44: Appendix Cfcc Radio Information
FCC Radio Information Teldat S.A. Appendix C FCC Radio Information C.1 LTE EM7455 WWAN Frequency Requirements This device contains FCC ID: N7NEM7455. This device is restricted to mobile and fixed applications and must not be co-located or operating in conjunction with any other antenna or transmitter except in accordance with FCC multi-transmitter evaluation procedures as docu- mented in this filing. - Page 45 FCC Radio Information Teldat S.A. 2305.0 - 2315.0 MHz 0.175 W 2496.0 - 2690.0 MHz 0.197 W 2496.0 - 2690.0 MHz 0.171 W 2496.0 - 2690.0 MHz 0.109 W 2500.0 - 2570.0 MHz 0.196 W 2500.0 - 2570.0 MHz 0.133 W 2500.0 - 2570.0 MHz...
