4 Connecting the Router

LAN Switch Ports

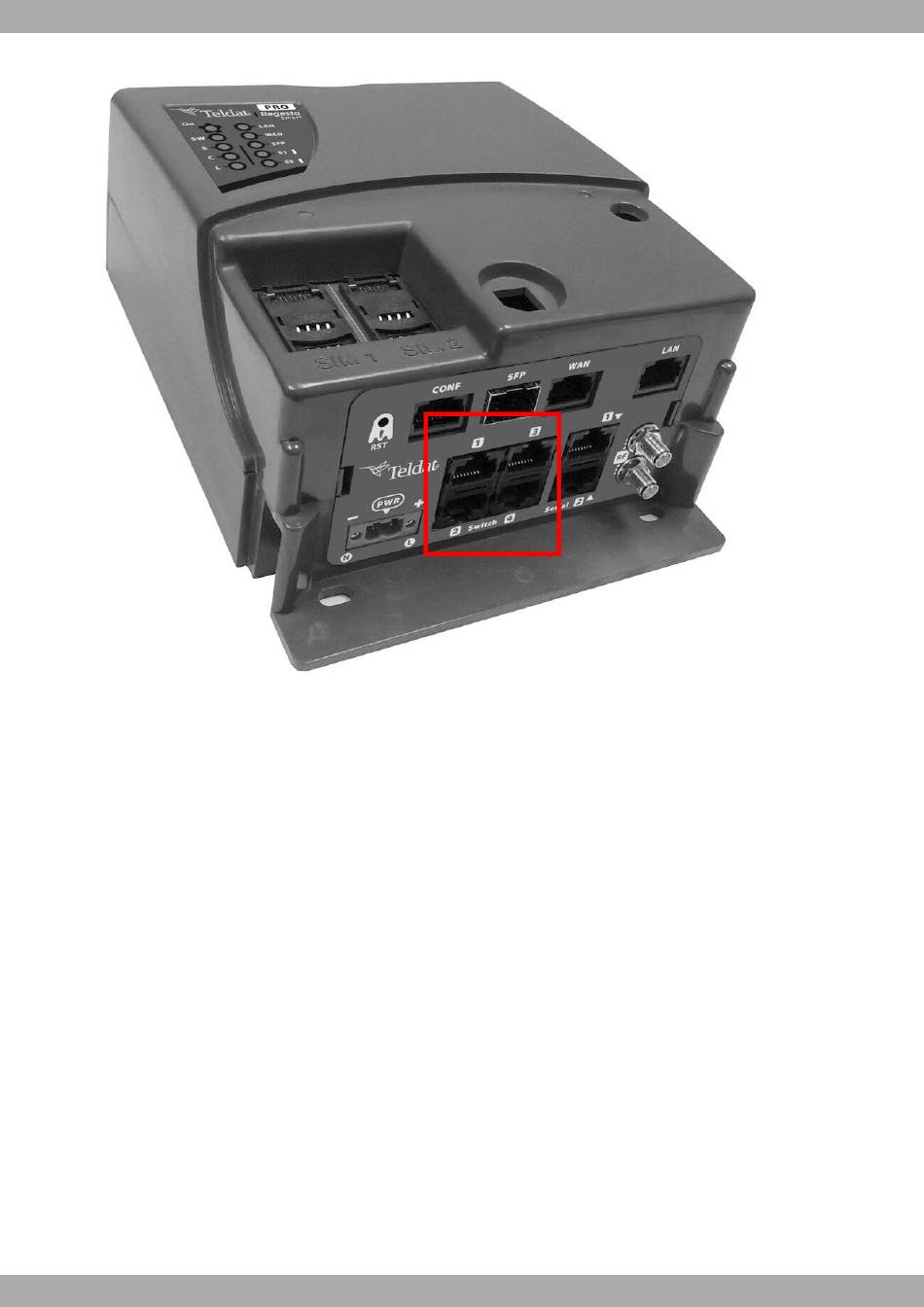

Fig. 12:

4.2.4 WWAN Antenna Connections (RF Connectors)

Certain models of the Regesta Smart PRO router are equipped with a pair of RF antenna connectors. The antennas

can be easily attached and detached by securely screwing and unscrewing them into the designated RF1 or RF2

connectors on the device's connector panel.

The RF1 connector is directly connected to the MAIN connector of the module, while RF2 is connected to the AUX

connector.

Using these antennas with the Regesta Smart PRO router significantly enhances the signal reception and transmis-

sion capabilities of the WWAN module.

To further improve signal quality for cellular technologies such as HSUPA and LTE, the router includes two WWAN/

RF connectors. Regardless of the configuration, it is essential to always install the antenna on RF1, while the an-

tenna on RF2 remains optional.
