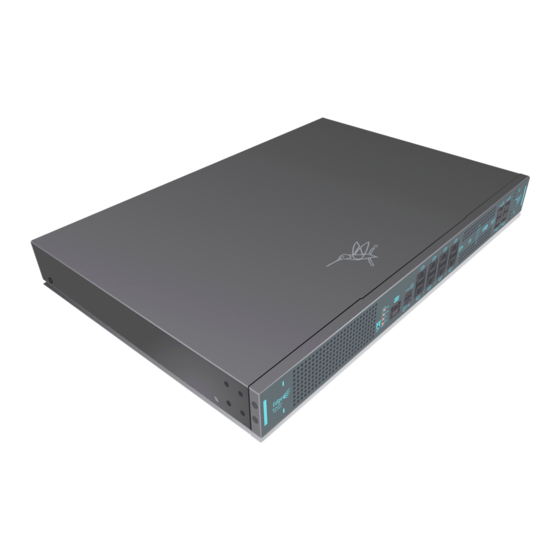

- Page 1 Manual Teldat S.A. Teldat Edge Router RXL15000 Installation Manual Copyright© Teldat-DM1055-I Version 1.0 05/2023 Teldat S.A. Teldat Edge Router RXL15000...
- Page 2 This publication is subject to change. Teldat S.A. offers no warranty whatsoever for information contained in this manual. Teldat S.A. is not liable for any direct, indirect, collateral, consequential or any other damage connected to the deliv- ery, supply or use of this manual.
-
Page 3: Table Of Contents
Chapter 2 RXL15000 ........3 Characteristics . - Page 4 Dimensions and weight ....... . A.5.8 Environmental specifications ......Teldat Edge Router RXL15000...
-
Page 5: I Related Documents
Related Documents Teldat S.A. I Related Documents Teldat Dm748-I Software Updating Teldat Edge Router RXL15000... -
Page 6: About This Guide
1 About this Guide Teldat S.A. Chapter 1 About this Guide This installation guide for the RXL15000 router contains information on how to correctly install this device in a work- ing environment. 1.1 Supported devices The information provided in this installation guide only applies to the RXL15000 router. -
Page 7: Rxl15000
2.1.2 Hardware monitoring The LEDs on the front panel are used to monitor the hardware in the RXL15000 router. These LEDs provide visual information on the state of the device and reference the condition of the hardware components, indicating whether there is connectivity, data flow, etc. -
Page 8: Components And Power Supply
• RST button • Data connection 3.1 Components 3.1.1 Front panel The following figure shows the front panel. Here you will find the majority of the RXL15000 router connectors. Front Panel Fig. 2: The front panel components are as follows:... - Page 9 In addition to the LEDs described in the above table, the front panel also has LEDs linked to the Switch Ethernet and SFP/SFP+ interfaces. Ethernet interface LEDs Fig. 4: The table below provides information on the LEDs associated with the Switch Ethernet interface: Switch Ethernet interface LED indicators Teldat Edge Router RXL15000...
-
Page 10: Rear Panel
Rear panel components Item Description Ventilation slots. Power sockets. Refer to Power source on page 7 for more information on Power Connection and Power supply on page 18 for power specifications applicable to the RXL15000 device. Teldat Edge Router RXL15000... -
Page 11: Installation
The RXL15000 router is powered through two internal AC/DC sources. The RXL15000 has two power inputs and two power supplies that operate simultaneously. It can operate one, the other, or both at once. If the RXL15000 is powered by the two power supplies and one of them fails, the other acts as a backup. -
Page 12: Rst Button
3.5 Connecting the data The RXL15000 router has the following data connections. 3.5.1 8-port Ethernet switch connections The RXL15000 router incorporates an 8-port 10/100/1000 Base-T Switch with automatic MDI/MDIX to connect to a local area network (LAN). Teldat Edge Router RXL15000... -
Page 13: Sfp/Sfp+ Connections
70ºC (160°F) and be too hot to touch with bare hands. 3.5.3 Connecting for configuration The RXL15000 has a RJ45 female connector on the front panel (labeled "Conf") that provides access to the device's local console. - Page 14 3 Components and Power Supply Teldat S.A. Conf Connector Fig. 10: For further information, please see Connecting to the device on page 15. Teldat Edge Router RXL15000...
-
Page 15: Compliance
Parque Tecnológico de Madrid, 28760 Tres Cantos, Madrid, Spain International Phone +34 91 807 65 65 4.2 Risk identification WARNING: Signal word used to designate a potentially dangerous situation that may cause severe injuries or death if not avoided. Teldat Edge Router RXL15000... -
Page 16: Safety Warnings
4 Compliance Teldat S.A. 4.3 Safety warnings Teldat Edge Router RXL15000... -
Page 17: Weee Information
This product is in compliance with the European REACH Regulation (EC) No 1907/2006. The Candidate List of sub- stances of very high concern for Authorization is published by ECHA and periodically updated. Teldat S.A. accounts for substances found in a concentration over 0.1% in weight. A declaration is provided to customers upon request. -
Page 18: Laser Product
• FCC 21 CFR Chapter 1, Subchapter J (in accordance with FDA and CDRH re- quirements) • Application of CE marking in accordance with the 2014/30/EU EMC Directive and the 2014/35/EU Low Voltage Directives • UL and/or CSA registered component for North America • 47 CFR Part 15, Class A Teldat Edge Router RXL15000... -
Page 19: Appendix A Technical Information
A.3 Connecting to the device A.3.1 Connecting using the local console (Conf connector) The RXL15000 router has a RJ45 female connector on the front panel, known as "Conf", that provides access to the device's local console. Conf Connector Fig. 13: To configure this, you must connect the "Conf"... -
Page 20: Connectors
A.4 Connectors A.4.1 Eth RJ45 connector RJ45 LAN RJ45 PIN FE Signals GE Signals BI-DA+ BI-DA+ BI-DA- BI-DA- BI-DB+ BI-DB+ BI-DC+ BI-DC- BI-DB- BI-DB- BI-DD+ BI-DD- A.4.2 Eth SFP/SFP+ connector SFP/SFP+ Standard SFP/SFP+ connector Teldat Edge Router RXL15000... -
Page 21: Usb 3.0 Connector
GND_DRAIN SSTX- (USB 3.0) SSTX+ (USB 3.0) Shell Shield A.4.4 Configuration connector RJ45 CONFIGURATION RJ45 PIN CONF A.5 Technical specifications A.5.1 Hardware architecture PROCESSORS Freescale LayerScape. MEMORY 4 GByte (DDR4). STORAGE UNIT eMMC Memory (8 GBytes). Teldat Edge Router RXL15000... -
Page 22: Eth Rj45 Interface
A.5.7 Dimensions and weight TYPE Desktop / chassis for a 1 U high Rack mount enclosure. LENGTH x WIDTH x HEIGHT 315 x 444 x 44 mm 315 x 483 x 44 mm (with backets) WEIGHT 4 kg. Teldat Edge Router RXL15000... -
Page 23: Environmental Specifications
Technical Information Teldat S.A. A.5.8 Environmental specifications TEMPERATURE OPERATING NORMALLY: 0 ºC to 40 ºC RELATIVE HUMIDITY On: 5 % to 90 % Teldat Edge Router RXL15000...
