- Page 1 Manual Teldat S.A. Regesta Lite AU Installation Manual Copyright© Teldat-DM633-I Version 1.1 9/2015 Teldat S.A. Regesta Lite AU...
- Page 2 This publication is subject to change. Teldat S.A. offers no warranty whatsoever for the information contained in this manual. Teldat S.A. is not liable for any direct, indirect, collateral, consequential or any other damage connected to the deliv- ery, supply or use of this manual.
-
Page 3: Table Of Contents
Chapter 2 Regesta Lite AU Router ......4 Features........ - Page 4 Recycling and the Environment ......Translated Safety Warnings ......Regesta Lite AU...
-
Page 5: I Related Documents
Related Documents Teldat S.A. I Related Documents Teldat-Dm748-I Software Updating Teldat-Dm781-I Cellular Interface Regesta Lite AU... -
Page 6: Chapter 1 About This Manual
1 About This Manual Teldat S.A. Chapter 1 About This Manual This is the installation manual for the Regesta Lite AU router and contains information on how to correctly install this device in a working environment. 1.1 Supported Devices The information provided in this installation manual only applies to the Regesta Lite AU router, models 2G / 3G. - Page 7 1 About This Manual Teldat S.A. Email: support@teldat.com Regesta Lite AU...
-
Page 8: Chapter 2 Regesta Lite Au Router
Chapter 2 Regesta Lite AU Router 2.1 Features The Regesta Lite AU router family is a range of IP routers especially designed to operate in hostile and extreme en- vironments. Thanks to their ruggedized mechanics and special characteristics, which allow them to bear extreme temperatures, these routers are particularly suited for: industrial environments, industrial telecontrol, distribution in- stallations for electricity, gas, water, etc. -
Page 9: Chapter 3 Components And Power Supply
3 Components and Power Supply Teldat S.A. Chapter 3 Components and Power Supply The following chapter provides detailed information on the chassis of the Regesta Lite AU router and its compon- ents. This information includes: • Components • Assembly instructions •... - Page 10 OFF -> Connection at 10Mbps. (LAN1..LAN2) Associated to each Green ON -> Ethernet connection (link) established: Ethernet switch connector (LAN1..LAN2) • Steady: Data is not being transferred. • Flashing: Data is being transferred. OFF -> Ethernet connection is not established Regesta Lite AU...
-
Page 11: Rear Panel
3 Components and Power Supply Teldat S.A. 3.1.2 Rear Panel The following figure shows the rear panel. Here you will find the remaining connectors of the Regesta Lite AU router. Rear Panel Fig. 4: The following table provides information on each connector, as well as a description:... -
Page 12: Upper Panel
3.2 Assembly 3.2.1 Installing a DIN rail mount accessory The Regesta Lite AU packaging includes a DIN rail mount kit to which the device can be connected (allowing for several positions). The kit contains 2 screws to adjust the rail mount to the underside of the device. There are a set of holes on the un-... -
Page 13: Installing The Protector

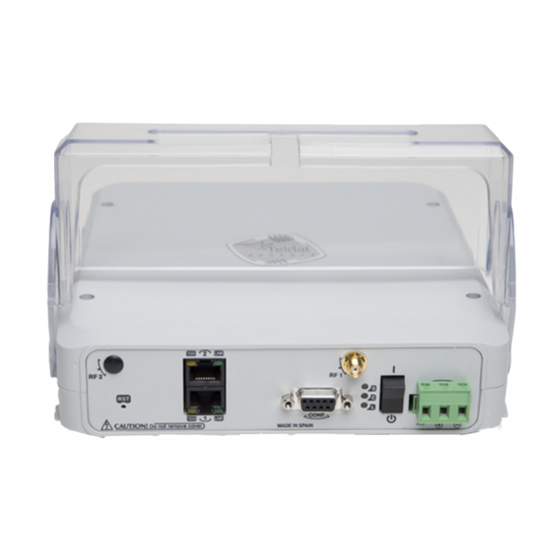

3.2.2 Installing the Protector The transparent protector protects the Regesta Lite AU connectors from being manipulated while the device is oper- ating. The device does not come out from the package with the protector on; it is a separate piece. -
Page 14: Power Source
Before connecting the router, please read the following instructions carefully! 3.3.1 Power Buffer The Regesta Lite AU has a special feature: the Power Buffer. This feature allows the device to keep working for a few seconds after the power goes off. -
Page 15: Connecting
Power Supply connector (located on the front panel) and insert the power cable connector. 3.4 RST Button The Regesta Lite AU router has a button that can be accessed from the outside and is labeled “RST” . It is located on the front panel and has two functions. -
Page 16: Default Configuration
The RF1 connector is connected to the module’s MAIN connector and the RF2 connector to the AUX connector. Installing these antennas in the Regesta Lite AU router is necessary to improve the quality of the signal received and transmitted by the WWAN module (GPRS, UMTS, HSDPA, HSUPA, etc.). - Page 17 (particularly face and eyes). • Do not install the device in areas where the atmosphere is potentially explosive. • Wireless devices can cause interferences in other devices. Do not use the device in areas where medical equip- ment is installed. Regesta Lite AU...
-
Page 18: Connecting The Serial Ports
3.6 Installing the SIM card The Regesta Lite AU has a Wireless WAN interface that, in order to operate, may require at least one SIM card to be inserted into the device. There are certain services (CDMA) provided by several carriers in some countries that do not require SIM cards. -
Page 19: Identifying The Sim Trays
Do not touch the SIM card connectors. To access the SIM tray you need to open the upper casing of the device. To do this, undo the four screws on the top panel of the Regesta Lite AU: Screws on the upper casing Fig. -
Page 20: Procedure To Install The Sim
(3) Fully insert the SIM card using the guides. (4) Return the tray to its original position (5) While pressing on the tray, push the fastening towards the word LOCK until it is firmly in place. Inserting the SIM in the internal tray Fig. 16: Regesta Lite AU... -
Page 21: Appendix A Technical Information
A.2 Updating the software The Regesta Lite AU router can be updated to new releases. Please contact your distributor for further details on new releases. There are various ways to update one of our routers. For further information, please see manual “ Dm 748-I Software Updating”... -
Page 22: Connecting To The Router
A.2.1.1 Connecting through the local console (CONF connector) The Regesta Lite AU has a DB-9 female connector on the front panel known as “CONF.” , which provides access to the device local console. In order to configure this, you must connect the “CONF.” port to an asynchronous terminal (or to a PC with terminal emulation). -
Page 23: Connectors
[192.168.1.2, 192.168.1.254] and with mask 255.255.255.0. E.g. 192.168.1.2, 255.255.255.0. • Connect the IP terminal Ethernet interface to any of the Regesta Lite AU Eth- ernet Switch ports (LAN1..2) through the Ethernet cable (RJ45) provided. • Initiate a Telnet session from the IP terminal to IP address 192.168.1.1 (Regesta Lite AU default address). -
Page 24: Configuration Connector
Technical Information Teldat S.A. A.3.3 Configuration Connector CONF A.3.4 RS-232 Serial Port Connectors SERIAL A.3.5 RS-485 Serial Port Connectors SERIAL 4H_RX+ 2H_R/TX+_4H_TX+ 4H_RX- 2H_R/TX-_4H_TX- A.4 Technical Specifications Regesta Lite AU... -
Page 25: Lan Interface
SPEED From 300 to 115200 bps CONNECTOR DB9 female on the device rear panel. (optional) A.4.6 Power Supply NOMINAL 24 V DC ABSOLUTE MAXIMUM 24V +/-5 % POWER Max: 10 W, Average: 7.2 W Regesta Lite AU... -
Page 26: Power Buffer
Without protector: 230 x 186 x 50 mm With protector: 270 x 186 x 50 mm WEIGHT 650 gr A.4.9 Environmental Specifications TEMPERATURE OPERATING NORMALLY: -10 ºC to +60 ºC STORED: -25º to +70 ºC RELATIVE HUMIDITY On: 5 % to 90 % Regesta Lite AU... -
Page 27: Appendix B Safety Information
B.1 Recycling and the Environment Please do not, under any circumstances, throw away any Regesta Lite AU with normal domestic waste. Ask your local town hall for information on how to correctly dispose of them in order to protect the environment against e- waste. -
Page 28: Translated Safety Warnings
Safety information Teldat S.A. B.2 Translated Safety Warnings Connecting Disconnecting Regesta Lite AU... - Page 29 Safety information Teldat S.A. Regesta Lite AU...
- Page 30 Safety information Teldat S.A. Regesta Lite AU Regesta Lite AU Regesta Lite AU Regesta Lite AU Regesta Lite AU...
