- Page 1 Manual Teldat S.A. RS300 Series Installation Manual Copyright© Teldat Dm1052-I Version 1.0 12/2022 Teldat S.A. RS300 Series...
- Page 2 This publication is subject to change. Teldat S.A. offers no warranty whatsoever for information contained in this manual. Teldat S.A. is not liable for any direct, indirect, collateral, consequential or any other damage connected to the deliv- ery, supply or use of this manual.
-
Page 3: Table Of Contents
WAN 2.5G connection ....... . . 3.6.4 Connecting for configuration ......RS300 Series... - Page 4 Dimensions and weight ....... . A.5.8 Environmental specifications ......RS300 Series...
-
Page 5: I Related Documents
Related Documents Teldat S.A. I Related Documents Teldat Dm704-I Configuration and Monitoring Teldat Dm709-I LAN interfaces Teldat Dm748-I Software Updating RS300 Series... -
Page 6: About This Guide
1.7 Technical support Teldat S.A. offers technical support. Device software can be upgraded on a regular basis for maintenance purposes and in case new features are developed. -

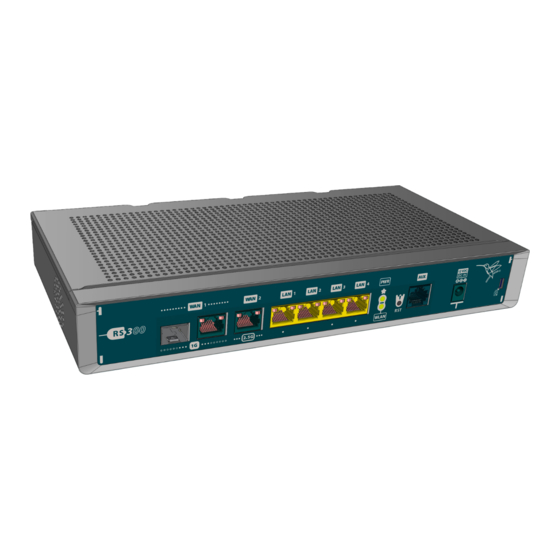

Page 7: Rs300
For further information on the LED panel, please see Components on page 4. RS300 Series... -
Page 8: Components And Power Supply
WAN Base-T connectors on page 21 WAN Base-T interface on page 22 Eth WAN-2 Base-T. WAN 2.5 Gigabit Ethernet. For more information on the WAN interface, refer to: WAN 2.5G connection on page 13 WAN Base-T connectors on page 21 RS300 Series... - Page 9 The following figure shows the router's WAN-1 LED indicators: WAN-1 LEDs Fig. 3: WAN-1 Ethernet LED indicators Description Copper status Green - Steady: 10/100/1000M link established. - Blinking: Transferring data. Yellow Fiber status: - Steady: 1000M link established. RS300 Series...
- Page 10 Switch LEDs Fig. 5: Switch LED indicators Description Yellow Connected to 10/100 M: - Steady: Not transferring data. - Blinking: Transferring data. Yellow + Green Connected to 1000 M: - Steady: Not transferring data. - Blinking: Transferring data. RS300 Series...
-
Page 11: Underside Panel
The T-bar lock of the security cable allows the device to be attached to an anchor point to help prevent theft. The security slot is located on the front panel of the housing, as shown in the following figure: Security Slot Fig. 7: RS300 Series... -
Page 12: Installation
Make sure that there are no concealed pipes and cables at the desired drilling location before drilling any mounting holes. Damage to electricity cables, gas, water and sewage pipes can result in death or material damage. Choose the installation location so that as few obstacles or electrical appliances as possible disturb the connection. RS300 Series... -
Page 13: 19'' Rack Installation
3.3.3 19'' Rack installation The RS300 device can be installed in a 19” rack. Note The rack mount kit, composed of strips and screws, is not delivered with the router by default and must be acquired separately. Rack installation Fig. 11: RS300 Series... -
Page 14: Power Source
We recommend connecting all data devices to the same power source regardless of whether the work- place has an uninterrupted power supply system (UPS), a regulated supply or is independent of other power supplies (such as lighting, etc.). This will help to prevent malfunctions and premature aging of the drivers and other components. RS300 Series... -
Page 15: Rst Button
The RS300 router incorporates a 4-port 10/100/1000 Base-T switch with automatic MDI/MDIX to connect to a local area network (LAN). Please pay careful attention to the labeling to avoid mistaking this switch for other types of ports: LAN ports Fig. 15: RS300 Series... -
Page 16: Wan Combo Connection
Laser Radiation. Do not use optical instruments directly or without proper protection. CLASS 1 LASER PRODUCT. The SFP modules to be installed in the card socket should be class 1 devices that comply with the IEC/ EN 60825-1:2007 standard. RS300 Series... -
Page 17: Wan 2.5G Connection
The RS300 router has an RJ45 female connector on the front panel (labeled "AUX.") that provides access to the device's local console. For further information, please see Connecting to the device on page 19. AUX. Connector Fig. 18: RS300 Series... -
Page 18: Compliance
Parque Tecnológico de Madrid, 28760 Tres Cantos, Madrid, Spain International Phone +34 91 807 65 65 4.2 Risk identification WARNING: Signal word used to designate a potentially dangerous situation that may cause severe injuries or death if not avoided. 4.3 Safety warnings RS300 Series... - Page 19 4 Compliance Teldat S.A. RS300 Series...
-
Page 20: Weee Information
Network Standby: 6W All RS300 interfaces can be shut down individually. Check the configuration manuals to learn how to disable each in- terface. For further information, please see manual: “Teldat Dm772-I Configuration Interfaces” . 4.7 PSU energy efficiency According to Commission Regulation (EU) 2019/1782 laying down ecodesign requirements for external power sup-... -
Page 21: Ec Declaration Of Conformity
Richtlinie 2009/125/EG (ErP) Richtlinien 2011/65/EU und 2015/863/EU (RoHS) des Europäischen Parlaments. Spanish (ES) Español Por la presente, Teldat S.A. declara que el tipo de equipo de telecomunicaciones RS300 es conforme con: Directiva 2014/30/UE (EMC) Directiva 2014/35/UE (LVD) Directiva 2009/125/CE (ErP) Directivas 2011/65/UE y 2015/863/UE (RoHS) del Parlamento Europeo y del Consejo. - Page 22 4 Compliance Teldat S.A. This product must only be used indoors. RS300 Series...
-
Page 23: Appendix A Technical Information
There are several ways to update a Teldat router. For further information, please see manual: “Teldat Dm748-I Soft- ware Updating” . The software required to update Teldat routers is supplied in a format known as distribution, which contains all the files needed to update your device and in-depth information on their content. -
Page 24: Connectors
Connection to the configuration port can be carried out using the the RJ45 connector cable, supplied with the device, and an RJ45 female-DB9 female adapter (also provided). Connecting for Configuration Fig. 20: For further information, please see manual: “Teldat Dm704-I Configuration and Monitoring” . A.4 Connectors A.4.1 LAN connectors RJ45 LAN... -
Page 25: Wan Base-T Connectors
A.4.2 WAN Base-T connectors RJ45 WAN RJ45 PIN FE Signals GE Signals BI-DA+ BI-DA+ BI-DA- BI-DA- BI-DB+ BI-DB+ BI-DC+ BI-DC- BI-DB- BI-DB- BI-DD+ BI-DD- A.4.3 WAN SFP connector Standard SFP connector A.4.4 Configuration connector RJ45 CONFIGURATION RJ45 PIN CONF RS300 Series... -
Page 26: Power Supply Connector
Memory (4 GBytes). A.5.2 LAN interface PROTOCOLS Ethernet (802.3). PORTS 4-port MDI/MDX auto-detection. SPEED 10/100/1000 Mbps (Base-T). CONNECTOR RJ45 female. A.5.3 WAN Base-T interface STANDARDS Ethernet (802.3). SPEED WAN-1: 10/100/1000 Mbps (Base-T). WAN-2: 10/100/1000/2500 Mbps (Base-T). CONNECTOR RJ45 female. RS300 Series... -
Page 27: Wan Sfp Interface
283mm x 144mm x 40mm WEIGHT 0.6 Kg A.5.8 Environmental specifications TEMPERATURE OPERATING NORMALLY: 0 ºC to 45 ºC. STORED: -25 ºC to 70 ºC. RELATIVE HUMIDITY 10 % to 95 %. NOISE 38.3 dB SPL (5000 rpm). RS300 Series...
