3 Components and Power Supply
• To ensure the R&TTE 1999/5/EC directive is complied with, the device must be at least 15 cm away from a per-
son's body when operating.
3.5.3 Connecting the Serial Ports
The Regesta Lite AU can have one or several female DB9 connectors, depending on the model.
3.5.3.1 Console Connector as Serial Port (CONF connector)
It's possible to convert the console port into an RS-232 asynchronous DCE serial port. This port has the following
characteristics:
3.5.3.2 Asynchronous Serial Ports
Some models are equipped with 2 additional serial ports. These serial ports can be RS-232 or RS-485/RS-422. They
have the following characteristics:
3.5.3.2.1 RS-232
3.5.3.2.2 RS-485/RS-422

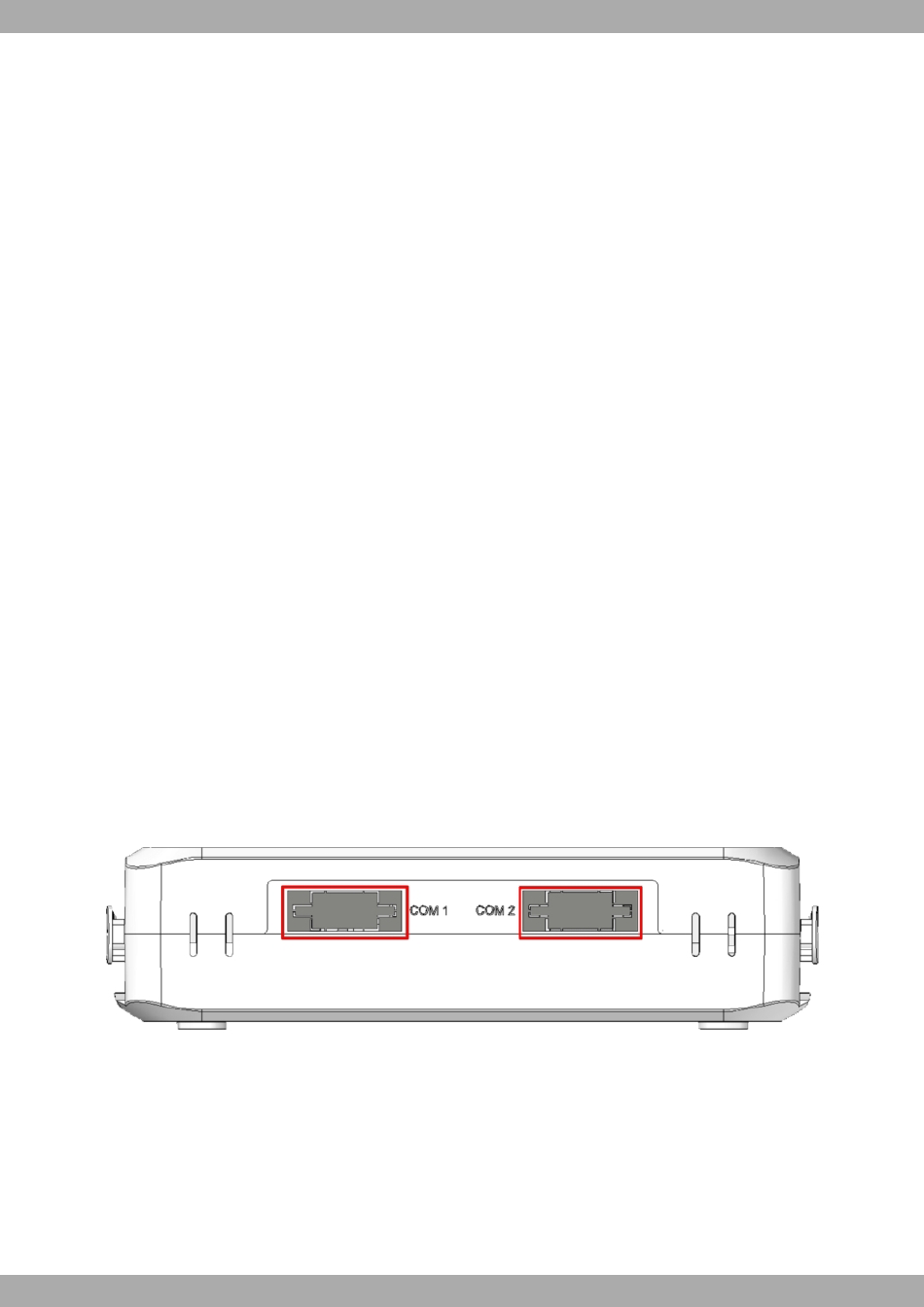

Asynchronous Serial connectors
Fig. 13:
3.6 Installing the SIM card
The Regesta Lite AU has a Wireless WAN interface that, in order to operate, may require at least one SIM card to
be inserted into the device. There are certain services (CDMA) provided by several carriers in some countries that do
not require SIM cards.
The Regesta Lite AU has two SIM trays. Both trays are located inside the device casing and are labeled SK1 and
SK2.
14
(1) DCE port
(2) RS-232 norm
(3) Maximum speed of 38400 bps
(4) Only the following signals are available: RxD (pin 2), TxD (pin 3) and GND
(5)
(5) DB-9 connector
(1) DCE port
(2) Maximum speed of 115200 bps
(3) All control signals are available
(4) DB-9 connector
(1) 2/4 wires configurable through software
(2) Bus termination configurable through software
(3) Maximum speed of 115200 bps
(4) DB-9 connector
Teldat S.A.
Regesta Lite AU
