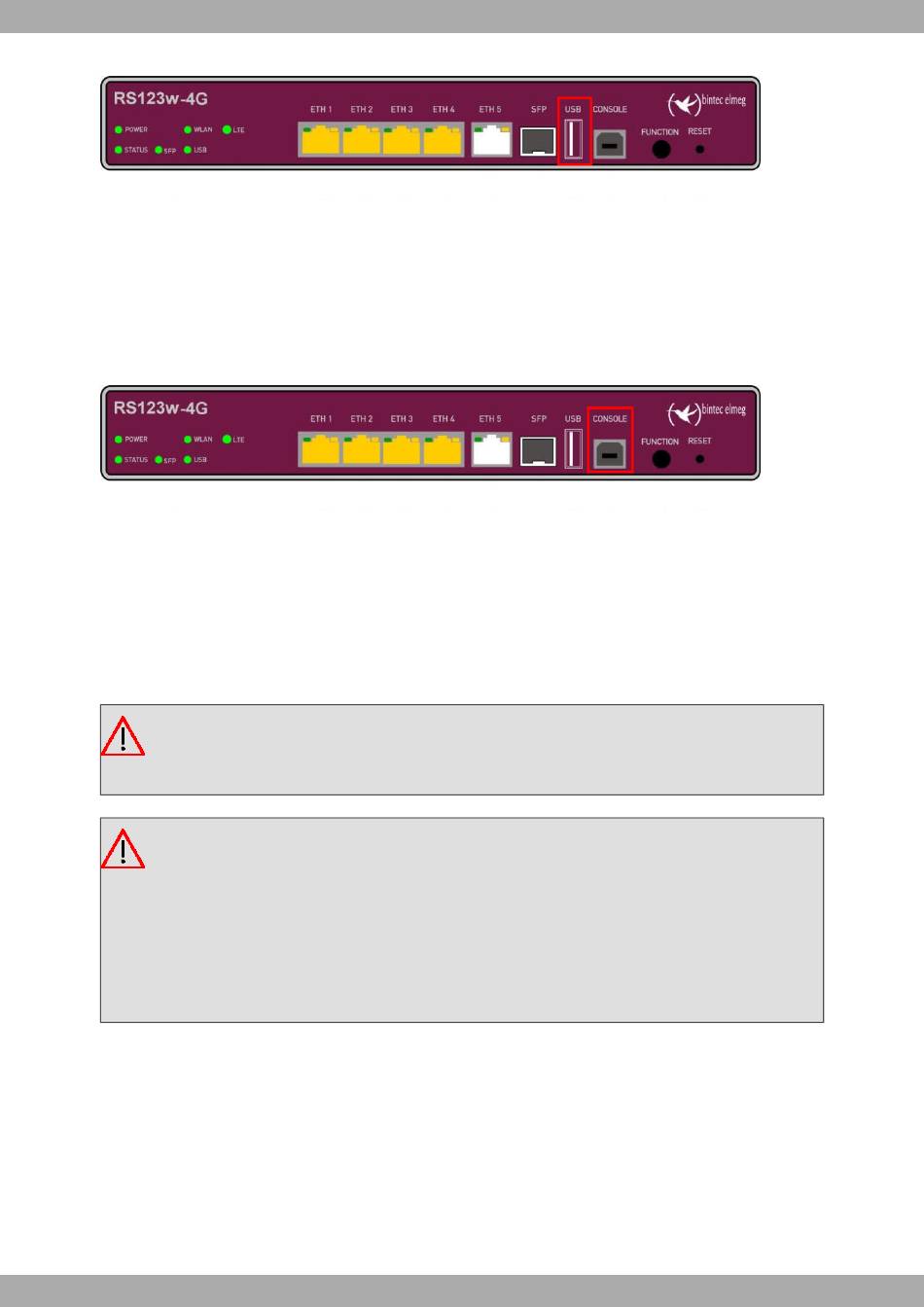

Fig. 14:

3.6.6 Connecting for configuration

The RS123 has an USB Type B connector on the front panel labeled Console, which provides access to the device
local console.
For further information, please see
CONSOLE Connector
Fig. 15:

3.7 Installing the SIM card

The RS123 has a Wireless WAN interface that, in order to operate, may require a SIM card to be inserted into the
device. Some carriers in certain countries provide services (CDMA) that do not require SIM cards.
The RS123 has one internal SIM tray located on the underside of the router.
Warning
This device is compatible with 1.8 V and 3 V SIMs. Do not install SIMs that do not support these
voltages.
Warning
Never install the SIM cards when the device is switched on.
Always disconnect the device from the main power supply before installing the SIM cards.
Always disconnect the device before removing the casing to access the trays.
When inserting the SIM cards, please protect yourself against electrostatic discharges (ESD).
Do not touch the SIM card connectors.

3.7.1 Procedure to install the internal SIM

To access the internal SIM, go to the underside of the router, open the flap (as shown in the following figure) and in-
sert the SIM card.
16
Connecting to the device on page 24.
