- Page 1 Manual Teldat S.A. RS123 Router Installation Manual Copyright© Teldat Dm674-I Version 1.6 05/2020 Teldat S.A. RS123 Router...
- Page 2 This publication is subject to change. Teldat S.A. offers no warranty whatsoever for information contained in this manual. Teldat S.A. is not liable for any direct, indirect, collateral, consequential or any other damage connected to the deliv- ery, supply or use of this manual.
-
Page 3: Table Of Contents
Table of Contents Teldat S.A. Table of Contents Related Documents....... . . 1 Chapter 1 About this Guide . - Page 4 Table of Contents Teldat S.A. 3.5.2 Default configuration ....... . .
- Page 5 Table of Contents Teldat S.A. Technical Specifications ....... . A.6.1 Hardware architecture .
-
Page 6: I Related Documents
Related Documents Teldat S.A. I Related Documents Teldat Dm748-I Software Updating RS123 Router... -
Page 7: About This Guide
1.5 What is not in this manual? This manual does not contain information relative to the device software or its configuration. To gather information on how to configure this device, please see the relevant protocol manuals found in the Teldat website: ht- tp://www.teldat.com 1.6 How is the information organized? - Page 8 1 About this Guide Teldat S.A. Fax: +34 918 076 566 Email: support@teldat.com RS123 Router...
-
Page 9: Rs123 Devices

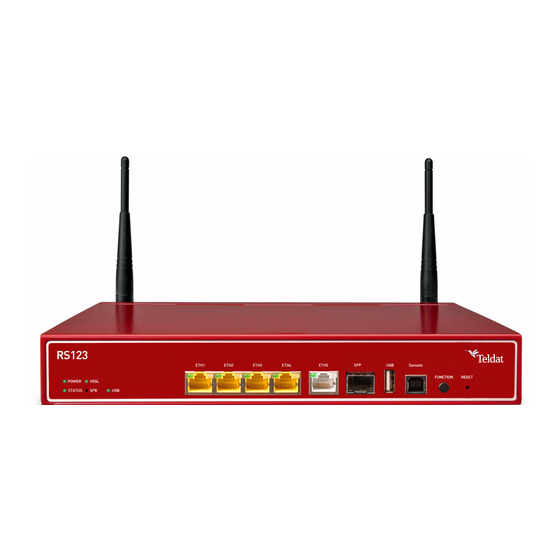

2 RS123 Devices Teldat S.A. Chapter 2 RS123 Devices 2.1 Description The RS123 Router is a powerful Gigabit Ethernet router that is mainly used in SMEs to provide connectivity to branch locations and home offices. The RS123 delivers advanced security, flexibility, and exceptional performance across a wide range of applications. -
Page 10: Hardware Monitoring
2 RS123 Devices Teldat S.A. 2.2.2 Hardware monitoring The LEDs on the front panel are used to monitor the RS123 hardware. These LEDs provide visual information on the state of the device and reference the condition of hardware components, indicating whether there is connectivity, data flow, etc. -
Page 11: Components And Power Supply
3 Components and Power Supply Teldat S.A. Chapter 3 Components and Power Supply The following chapter provides detailed information on the chassis of the RS123 router family and its components. This information includes: • Components. • Information on assembly. • Installing and uninstalling modules. - Page 12 3 Components and Power Supply Teldat S.A. LED panel Fig. 3: LEDs Color Description POWER Green Off -> Power supply is not connected. On -> Power supply is connected. STATUS Green Off -> System off. On -> Software is running.
-
Page 13: Rear Panel
3 Components and Power Supply Teldat S.A. ETH LEDs Fig. 4: Switch and WAN LED indicators Description Yellow OFF -> Interface is either unavailable, not installed or not registered. ON -> Connected to 10 M: - Steady: Not transferring data. -
Page 14: Side Panels
3 Components and Power Supply Teldat S.A. 3.1.3 Side panels On models RS123w and RS123w-4G, two 3G/4G antenna connectors are located on the side panels, one on each side: Fig. 6: Side panels The connectors are as follows: Side panel connectors... -
Page 15: Installation
3 Components and Power Supply Teldat S.A. 3.2 Installation 3.2.1 Installation in a rack The RS123 can be installed in a 19” rack. The strips and screws needed are provided by default. Both strips are attached to the device through 8 screws (4 on each side), as shown in the following figure: Anchor bolts for a rack Fig. -
Page 16: Plug-In Modules
The only devices that can be inserted in the USB connector are 3G USB modems and USB to RS232 converters to connect a control line to MTC devices. To view the list of supported 3G modems, please visit the Teldat website: http://www.teldat.com. The USB to RS232 converter is provided by Teldat. -
Page 17: Connecting
3 Components and Power Supply Teldat S.A. OUTLET, which should at the same time be of good quality (lower than 10 ohms). We recommend connecting all data devices to the same power source regardless of whether the work- place is provided with an uninterrupted power supply (UPS), a regulated supply or is independent of other power supplies (such as lighting, etc.). -
Page 18: Connecting The Data
3 Components and Power Supply Teldat S.A. 3.6 Connecting the data The RS123 has the following data connections. 3.6.1 4-port Ethernet switch The RS123 incorporates a 4-port 10/100/1000 BaseT switch with automatic MDI/MDIX to connect to a local area net- work (LAN). -
Page 19: Wwan Antenna Connection (3G/4G Connector)
To achieve optimum performance, the radio frequency accessories installed (antennas and cables) should be those recommended by Teldat. Teldat has a series of accessories (90º mount antennas, antennas for exterior installation, antennas for ceiling install- ation, extension cables, etc) that allow you to install the devices in different locations. -
Page 20: Wireless Lan Antenna Connection (Wlan Connectors)
3 Components and Power Supply Teldat S.A. 3.6.3.1 Placing the antenna Antenna orientation and its location with respect to other wireless devices and radiation devices (such as communic- ation devices, personal computers, etc.) can significantly influence device performance. Antennas transmit and receive radio signals. Performance is also affected by environmental factors (such as the dis- tance between the device and the base station), physical obstacles and other interferences caused by radiofrequen- cies (RF). -
Page 21: Connecting For Configuration
3 Components and Power Supply Teldat S.A. USB Connector Fig. 14: 3.6.6 Connecting for configuration The RS123 has an USB Type B connector on the front panel labeled Console, which provides access to the device local console. For further information, please see Connecting to the device on page 24. - Page 22 3 Components and Power Supply Teldat S.A. Internal module SIM tray Fig. 16: Proceed as follows in order to insert the SIM card: (1) Use a Phillips PH1 screwdriver to loosen the screw of the card slot cover found on the bottom of the device and remove the cover.
-
Page 23: Compliance
4 Compliance Teldat S.A. Chapter 4 Compliance 4.1 Manufacturer information Brand Teldat Manufacturer Teldat S.A. Country Spain Postal Address Isacc Newton, 10 Parque Tecnológico de Madrid, 28760 Tres Cantos, Madid, Spain International Phone +34 91 807 65 65 4.2 Safety warnings... - Page 24 4 Compliance Teldat S.A. RS123 Router...
-
Page 25: Weee Information
4 Compliance Teldat S.A. 4.3 WEEE information The crossed-out wheelie bin symbol indicates that the device must be disposed of separately from normal domestic waste at an appropriate waste disposal facility at the end of its useful service life. Das auf dem Gerät befindliche Symbol mit dem durchgekreuzten Müllcontainer bedeutet, dass das Gerät am Ende der Nutzungsdauer bei den hierfür vorgese-... -
Page 26: Reach
4 Compliance Teldat S.A. 4.4 REACH In compliance with the REACH Candidate List, the delivered product and product packaging do not contain chemical substances above a concentration limit of 0.1% weight by weight (w/w). This declaration will be updated whenever any changes occur or other chemical substances are added to the REACH Candidate List. -
Page 27: Ce Marking
In accordance with Article 10 of 2014/53/EU, we inform you that national restrictions and requirements may apply when it comes to authorization. These can change with time. Teldat S.A. recommends that you check with local au- thorities for the latest status of their national regulations. -
Page 28: Radio Frequency Interference Requirements
4 Compliance Teldat S.A. 4.8.3 Radio frequency interference requirements This device is restricted to indoor use due to its operation in the 5.15 to 5.25 GHz frequency range. The FCC requires this product to be used indoors to minimize any potential harmful interferences to co-channel Mo- bile Satellite systems. -
Page 29: Appendix A Technical Information
Updating” . The software required to update Teldat routers is supplied in a format known as distribution. This consists of a single file, which contains all the files needed to update your device as well as in-depth information on the contents of the files. -
Page 30: Licenses
Technical Information Teldat S.A. CONSOLE Connector Fig. 19: To configure this, connect the CONSOLE port to your PC using a USB cable. Note The configuration for the terminal must be: - Speed: 115200 bps. - Eight data bits. - One stop bit. -
Page 31: Wan Connector
Technical Information Teldat S.A. A.5.2 WAN connector RJ45 WAN RJ45 PIN FE Signals GE Signals BI-DA+ BI-DA+ BI-DA- BI-DA- BI-DB+ BI-DB+ BI-DC+ BI-DC- BI-DB- BI-DB- BI-DD+ BI-DD- A.5.3 WWAN connector (female) Internal RF in/out External A.5.4 WLAN connector (male) Internal... -
Page 32: Configuration Connector
Technical Information Teldat S.A. A.5.6 Configuration connector USB Type B DATA- DATA+ Shell Shield A.5.7 Power Supply connector IEC C9 Earth A.6 Technical Specifications A.6.1 Hardware architecture Lantiq VRX288. PROCESSORS MEMORY 128 Mbytes in SDRAM. STORAGE UNIT FLASH Memory (32 Mbytes). -
Page 33: Wan Interface (Sfp)
Technical Information Teldat S.A. A.6.4 WAN interface (SFP) STANDARDS IEEE 1000 Base-X. SPEED 1000 Mbps full duplex. CONNECTOR SFP. A.6.5 Wireless WAN interface WWAN Standard/Bands MC7304: • LTE: • FDD. B1, B3, B7, B8, B20 • WCDMA: B1, B2, B5, B8 •... -
Page 34: Wireless Lan Interface
Technical Information Teldat S.A. A.6.6 Wireless LAN interface WLAN standards 802.11n (MIMO 2x2); 802.11b; 802.11g; 802.11a; 802.11h. Frequency bands 2.4 GHz in- 2400–2483.5 MHz: 20 dBm max EIRP allowed. door and outdoor (EU) Frequency bands 2.4 GHz in- 2400–2473 MHz: 20 dBm max EIRP allowed. -
Page 35: Usb Interface
Teldat S.A. A.6.7 USB interface 3G USB MODEMS Please visit the Teldat website at http://www.teldat.com to get a list of the suppor- ted 3G USB modems. SPEED The interface complies with the USB 2.0 (480 Mbps) standard; the end speed de- pends on the 3G USB modem used. -
Page 36: Radio Information
Radio Information Teldat S.A. Appendix B Radio Information B.1 Radio WWAN specifications LTE/WCDMA/GSM connectivity is provided by different WWAN modules. The exact module installed will depend on your particular router model. This product is supplied with antennas. To comply with the regulations, do not choose other antennas. -
Page 37: Radio Wi-Fi Specifications
Radio Information Teldat S.A. Technology: UMTS(WCDMA)/ HSDPA/ HSUPA/ HSPA+/ DC-HSPA+. EC25-E specifications. Bands Frequencies Conducted Transmit Power Band 1 Tx: 1920-1980 MHz +24 dBm +1/-3 dB Rx: 2110-2170 MHz Band 8 Tx: 880–915 MHz +24 dBm +1/-3 dB Rx: 925–960 MHz Technology: GSM / GPRS / EDGE. - Page 38 Radio Information Teldat S.A. USA: 802.11n-HT40: 5190~5230 MHz (channels 38 and 46), 5270~5310 MHz (channels 54 and 62), 5510~5670 MHz (channels 102 to 134), 5755~5795 (channels 151 and 159) ; Carrier frequencies stability +- 2 ppm Number of Channels EU: 802.11a/n-HT20: 19 EU: 802.11n-HT40: 9...
- Page 39 Radio Information Teldat S.A. dBm; MCS10 -91 dBm; MCS11 -87 dBm; MCS12 -84 dBm; MCS13 -81 dBm; MCS14 -79 dBm; MCS15 -77 dBm. Receiver Sensitivity @ 2.4 GHz MCS0 -95 dBm; MCS1 -94 dBm; MCS2 -92 dBm; MCS3 -88 dBm; MCS4 -85 802.11n 20 MHz...
