- Page 1 Manual Teldat S.A. Teldat Router M1/M1L Installation Manual Copyright© Teldat Dm569-I Version 8.6 11/2019 Teldat S.A. Teldat Router M1/M1L...
- Page 2 This publication is subject to change. Teldat S.A. offers no warranty whatsoever for information contained in this manual. Teldat S.A. is not liable for any direct, indirect, collateral, consequential or any other damage connected to the deliv- ery, supply or use of this manual.
-
Page 3: Table Of Contents
Chapter 2 Teldat M1 / Teldat M1L Devices ......4 Characteristics ........ - Page 4 USB connector ........A.5.6 Configuration connector ....... . Teldat Router M1/M1L...
- Page 5 WWAN specifications ....... . . WIFI specifications ........Teldat Router M1/M1L...
-
Page 6: I Related Documents
Related Documents Teldat S.A. I Related Documents Teldat Dm748-I Software Updating Teldat Router M1/M1L... -
Page 7: About This Manual
1 About this manual Teldat S.A. Chapter 1 About this manual This installation manual for the Teldat M1 router family and contains information on how to correctly install the device in a working environment. 1.1 Supported devices The information provided in this installation manual only applies to the Teldat M1 router family. - Page 8 1 About this manual Teldat S.A. Tel.: +34 918 076 565 Fax: +34 918 076 566 Email: support@teldat.com Teldat Router M1/M1L...
-
Page 9: Teldat M1 / Teldat M1L Devices
2.1.2 Hardware monitoring The only way to monitor the Teldat M1 hardware is through the LEDs on the front panel. They provide visual inform- ation on the status of hardware components and indicate whether there is connectivity, data flow, etc. -
Page 10: Components And Power Supply
3 Components and power supply Teldat S.A. Chapter 3 Components and power supply This chapter describes the Teldat M1 router family chassis and its main components. The following sections are in- cluded: • Components • Assembly instructions • Installing and uninstalling modules •... -
Page 11: Rear Panel

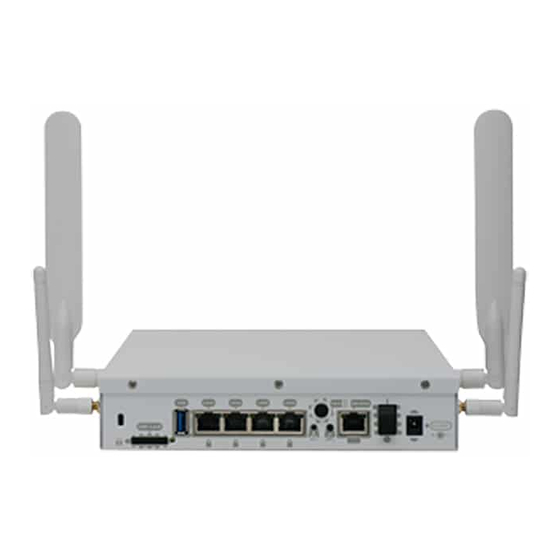

0 (all LEDs off) to level 4 (all lit up). (1, 2, 3, 4) 3.1.2 Rear panel The following image shows the rear panel of the Teldat M1 router, which contains the majority of connectors. Teldat Router M1/M1L... -
Page 12: Side Panels
Two Wi-Fi connectors and two 3G antenna connectors can be found on each side panel: Fig. 4: Right and left-hand side panels Fig. 3: The connectors are as follows: Side panel connectors Item Description Wi-Fi antenna connectors. 3G antenna connectors. 3.1.4 Underside panel The following image shows the underside panel: Teldat Router M1/M1L... -
Page 13: Expansion Slot
Adhesive rubber feet (not required when the device is mounted on a rack). 3.2 Expansion slot The Teldat M1 router comes with an expansion slot that allows you to increase the number of features and inter- faces the router has by inserting different cards or boards. - Page 14 Please see Fig. 8 on page 9. Installing the expansion card Fig. 8: (6) Finally, insert the tray into the device once again using the appropriate guides. See Fig. 9 on page 10. Teldat Router M1/M1L...
-
Page 15: Installing In A Rack
(8) Connect a terminal to the console to ensure the device can detect the expansion card. 3.3 Installing in a rack The Teldat M1 router can be mounted in a 19-inch rack. Rack rails and screws are not provided and must be pur- chased separately. -
Page 16: Mounting On A Wall
3.3.2 Mounting on a wall An optional wall mount kit is available for the Teldat M1. The kit can be ordered separately or together with your Teldat M1 router. The anchors to mount the device on the wall must be installed as shown in the following figure, using the screws provided by the manufacturer. -
Page 17: Plug-In Modules
Fig. 13 on page 12. 3.5 Power source The Teldat M1 router is powered by an external AC/DC source. Workplace conditions. Main characteristics • Do not expose the device to humid and/or dusty environments. • Do not expose the device to direct sunlight or install near any heat sources. Do not place the device amongst pa- pers, magazines or other elements that could hinder natural air circulation. -
Page 18: Connecting
• Disconnect the data cables. 3.6 RST button The RST button on the rear of the Teldat M1 router has various functions (described below). 3.6.1 Rebooting the device Once the device is operating normally, pressing the RST button will make it restart. -
Page 19: 4-Port Ethernet Switch
The Teldat M1 has two 3G antenna connectors. The antennas are assembled and disassembled by screwing/un- screwing them into/from the Cell connectors on the router's side panels. Using these antennas with the Teldat M1 router improves the quality of the signal received and transmitted by the cellular model. - Page 20 The corresponding software license must be installed in the router for the cellular interface to work. Some cellular telephony technologies use the antenna diversity technique to improve the quality of the signal re- ceived (HSUPA, CDMA EV-DO, etc.). For this reason, the Teldat M1 router family is equipped with several WWAN connectors:...
-
Page 21: Wireless Lan Antenna Connection (Wi-Fi Connectors)
3G USB Connector Fig. 21: 3.7.6 Connecting for configuration The front panel of the Teldat M1 features an RJ45 female connector, labeled “ Aux” , that provides access to the router's local console. For further information, please see Connecting to the device on page 27. -
Page 22: Sim Card Installation
Teldat S.A. 3.8 SIM card installation You may need to insert a SIM card in the Teldat M1 before you can use the WWAN interface. Some countries have services (CDMA) that do not require SIM cards. The Teldat M1 has two SIM trays. - Page 23 (5) Hold the SIM card case cover down while you slide the cover to the side, as indicated by the arrow labeled LOCK, until it is firmly in place. Inserting the SIM in the internal tray Fig. 26: Teldat Router M1/M1L...
-
Page 24: Compliance
Chapter 4 Compliance 4.1 Manufacturer information Brand Teldat Manufacturer Teldat S.A. Country Spain Postal Address Isacc Newton, 10 Parque Tecnológico de Madrid, 28760 Tres Cantos, Madid, Spain International Phone +34 91 807 65 65 4.2 Safety warnings Teldat Router M1/M1L... - Page 25 4 Compliance Teldat S.A. Connecting Disconnecting Teldat Router M1/M1L...
- Page 26 4 Compliance Teldat S.A. Teldat Router M1/M1L...
- Page 27 4 Compliance Teldat S.A. Teldat Router M1/M1L...
-
Page 28: Weee Information
0.1% concentration weight by weight (w/w). This declaration will be updated whenever any changes occur or other chemical substances are added to the REACH Candidate List. Information is currently provided to consumers upon request. Teldat Router M1/M1L... -
Page 29: Ec Declaration Of Conformity
Directiva 2009/125/CE (ErP) Directiva 2011/65/UE (RoHS) del parlamento Europeo. The EC declaration of conformity and additional product documentation can be found at: http://www.teldat.com/conformity 4.6 CE marking This equipment is in conformity with the CE procedures and marking. Teldat Router M1/M1L... -
Page 30: National Restrictions
The FCC requires this product to be used indoors to reduce the potential for harmful interference to co-channel Mo- bile Satellite systems. High power radars are allocated as primary users of the 5.25 - 5.35 GHz and 5.65 - 5.85 GHz bands. These radar stations can cause interference with and/or damage this device. Teldat Router M1/M1L... -
Page 31: Ic Statement
This device and its antennas(s) must not be co-located or operating in conjunction with any other antenna or trans- mitter except in accordance with IC multi-transmitter product procedures. Cet appareil et son antenne (s) ne doit pas être co-localisés ou fonctionnement en association avec une autre antenne ou transmetteur. Teldat Router M1/M1L... -
Page 32: Appendix A Technical Information
A.3 Connecting to the device A.3.1 Connecting using the local console (Aux connector) An RJ45 female connector, labeled “ Aux” , on the front panel of the Teldat M1 router provides access to the device's local console. Teldat Router M1/M1L... -
Page 33: Licenses
Fig. 29: A.4 Licenses The Teldat M1 router family offers a series of licenses. Among them, the following stand out: WiFi: Activation license for the WLAN 802.11bgn. USB: Activation license for the USB port to be used for the WWAN modems. -
Page 34: Connectors
BI-DC+ BI-DC- BI-DB- BI-DB- BI-DD+ BI-DD- A.5.2 WAN connector RJ45 WAN RJ45 PIN FE Signals GE Signals BI-DA+ BI-DA+ BI-DA- BI-DA- BI-DB+ BI-DB+ BI-DC+ BI-DC- BI-DB- BI-DB- BI-DD+ BI-DD- A.5.3 WWAN connector (female) Internal RF in/out External Teldat Router M1/M1L... -
Page 35: Wlan Connector (Male)
Technical information Teldat S.A. A.5.4 WLAN connector (male) Internal RF in/out External A.5.5 USB connector USB Type A DATA- DATA+ Shell Shield A.5.6 Configuration connector RJ45 CONFIGURATION RJ45 PIN CONF A.5.7 Power supply connector Internal POSITIVE External NEGATIVE Teldat Router M1/M1L... -
Page 36: Technical Specifications
Depends on the type of Wireless WAN module. Please see the antenna catalog for Cellular interfaces. A.6.5 Wireless LAN interface STANDARDS 802.11abgn. FREQUENCY 2.4 GHz / 5 GHz. SPEED Depends on the Wireless LAN module. CONECTOR Up to 3 RF RP-SMA female. Teldat Router M1/M1L... -
Page 37: Usb Interface
Technical information Teldat S.A. A.6.6 USB interface 3G USB MODEMS Please see the Teldat website http://www.teldat.com to get a list of the supported 3G USB modems. SPEED The interface complies with the USB 2.0 (480 Mbps) standard; the end speed de- pends on the 3G USB modem used. -
Page 38: Radio Information
Tx: 5150-5350 MHz 23 dBm max. 5 GHz with TPC * Tx: 5470-5725 MHz 30 dBm max. 5 GHz without TPC * Tx: 5150-5250 MHz 23 dBm max. 5 GHz without TPC * Tx: 5250-5350 MHz 20 dBm max. Teldat Router M1/M1L... - Page 39 Radio information Teldat S.A. 5 GHz without TPC * Tx: 5470-5725 MHz 27 dBm max. * TPC: Transmit Power Control This product is supplied with EDA-8709-25GR2-A9 antennas. To comply with the regulations, do not choose other antennas. Teldat Router M1/M1L...
