Asynchronous Serial connectors

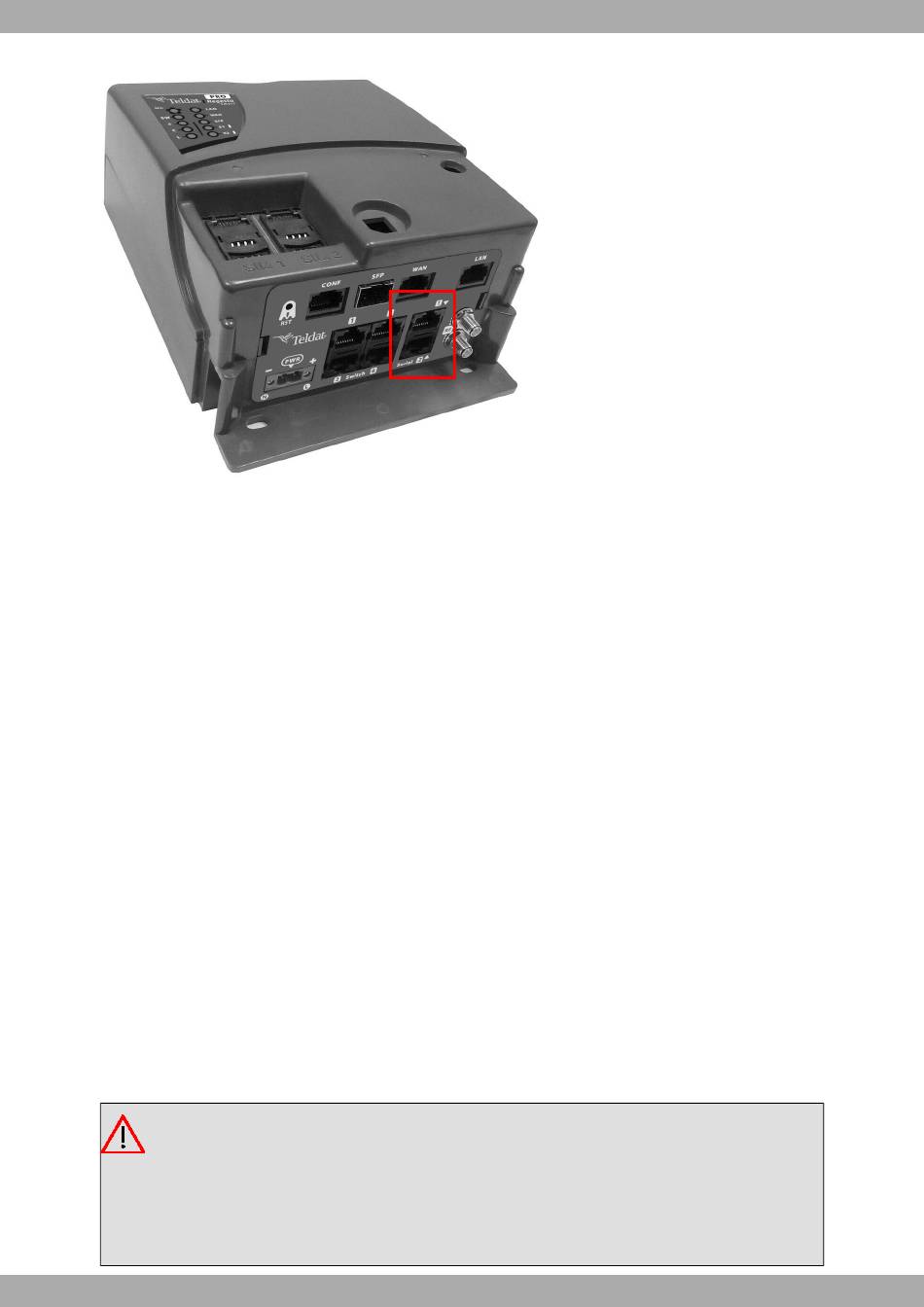

Fig. 15:
These serial ports can support RS-232 and/or RS-485/RS-422, and possess the following characteristics:
4.2.5.2.1 RS-232 serial port
4.2.5.2.2 RS-485/RS-422 serial port

4.3 Installing the SIM card

The Regesta Smart PRO features a Wireless WAN interface that requires at least one SIM card to be inserted for op-
eration. However, in certain countries, CDMA services provided by some operators do not require the use of SIM
cards.
The Regesta Smart PRO features two SIM trays placed beneath the protective case, conveniently labeled SIM1 and
SIM2.
For setups that utilize only one SIM card, we advise inserting it into the SIM1 tray.
Warning
Never install the SIM cards while the device is powered on.
Prior to inserting the SIM cards, always disconnect the device from the main power supply.
Additionally, make sure to disconnect the device before removing the protective casing to access the
trays.
Regesta Smart PRO
(1) DCE port.
(2) A maximum speed of 115200 bps.
(3) Control signals available. For more details on the pin assignment, please
refer to RS-232 serial port connectors
(4) RJ-45 connector.
(1) 2/4 wire configurable via software.
(2) Bus termination configurable via software. For more details on the pin as-
signment, please refer to
(3) A maximum speed of 115200 bps.
(4) RJ-45 connector.
on page 38.
RS-485 serial port connectors on page 38.
