• Wireless devices can cause interferences in other devices. Do not use the device in areas where medical equip-
ment is installed.

3.7.4 Wireless LAN internal antennas

The Teldat Connect-FW5G has two integrated antennas for a Wireless LAN module covering both the 2.4 GHz and
5 GHz bands.
The WLAN module is internal and is only available for the Wi-Fi models.

3.7.5 Connecting for configuration

The Teldat Connect-FW5G router has an RJ45 female connector on the rear panel (labeled "CONSOLE") that
provides access to the device's local console
For further information, please see
CONSOLE Connector

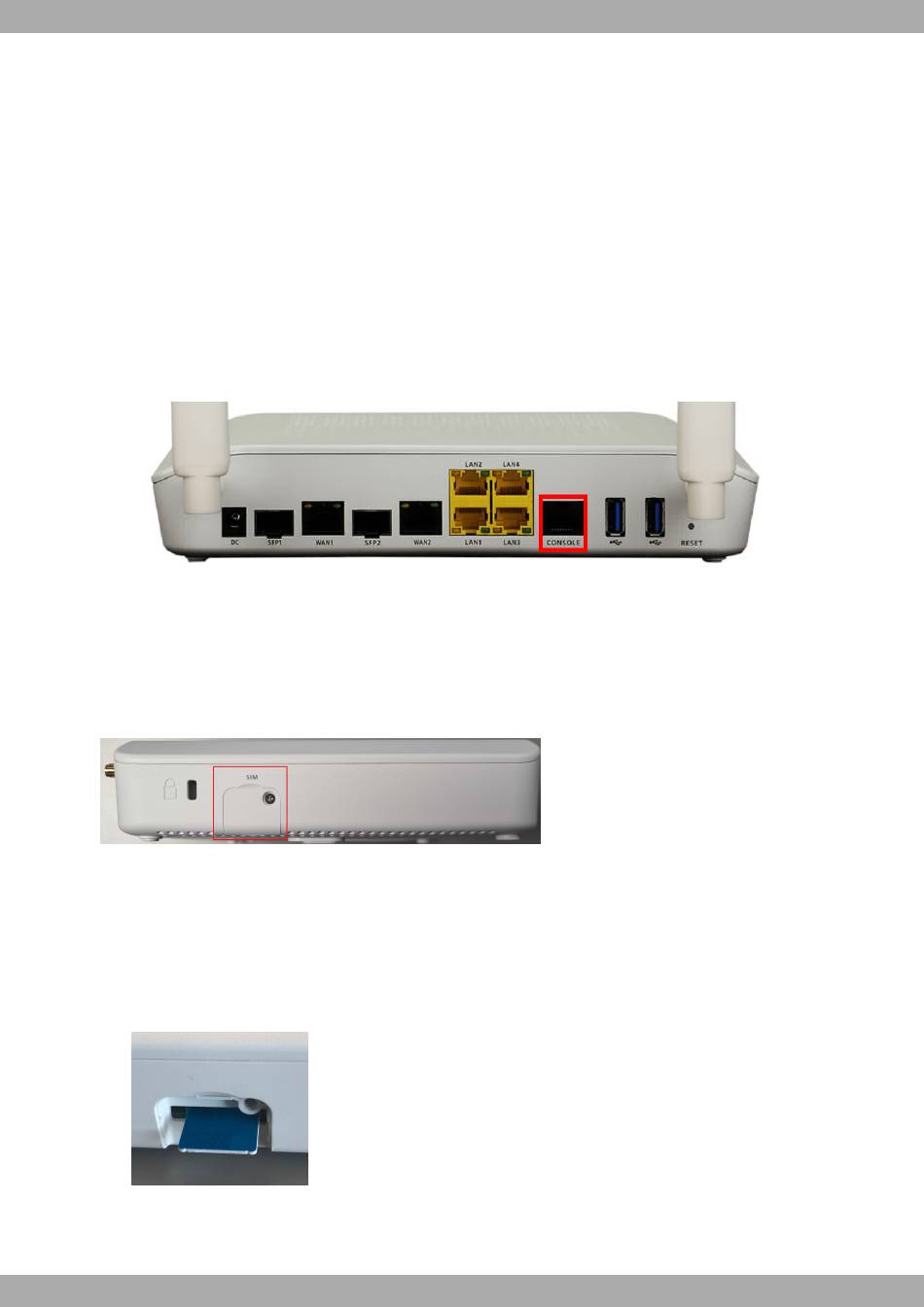

Fig. 27:

3.8 Installing the SIM card

The Teldat Connect-FW5G router has a Wireless WAN interface that may need a SIM card to operate.
The Teldat Connect-FW5G has one protected SIM tray located on its side panel, as shown in the following figure.
Fig. 28: SIM tray
To access the internal SIM, remove the SIM cover and insert the SIM card in its slot.
(1) Use a Phillips PH1 screwdriver to loosen the screw of the card slot cover found on the side of the router and re-
move the cover.
(2) To insert the SIM card:
Insert the SIM card with the connector side facing down in the slot and then push the card all the way in until it
clicks. Make sure the card is facing the right way, as shown in the following image.
Fig. 29: SIM installation
(3) To remove the SIM card:
Press the SIM card into the slot and release.
