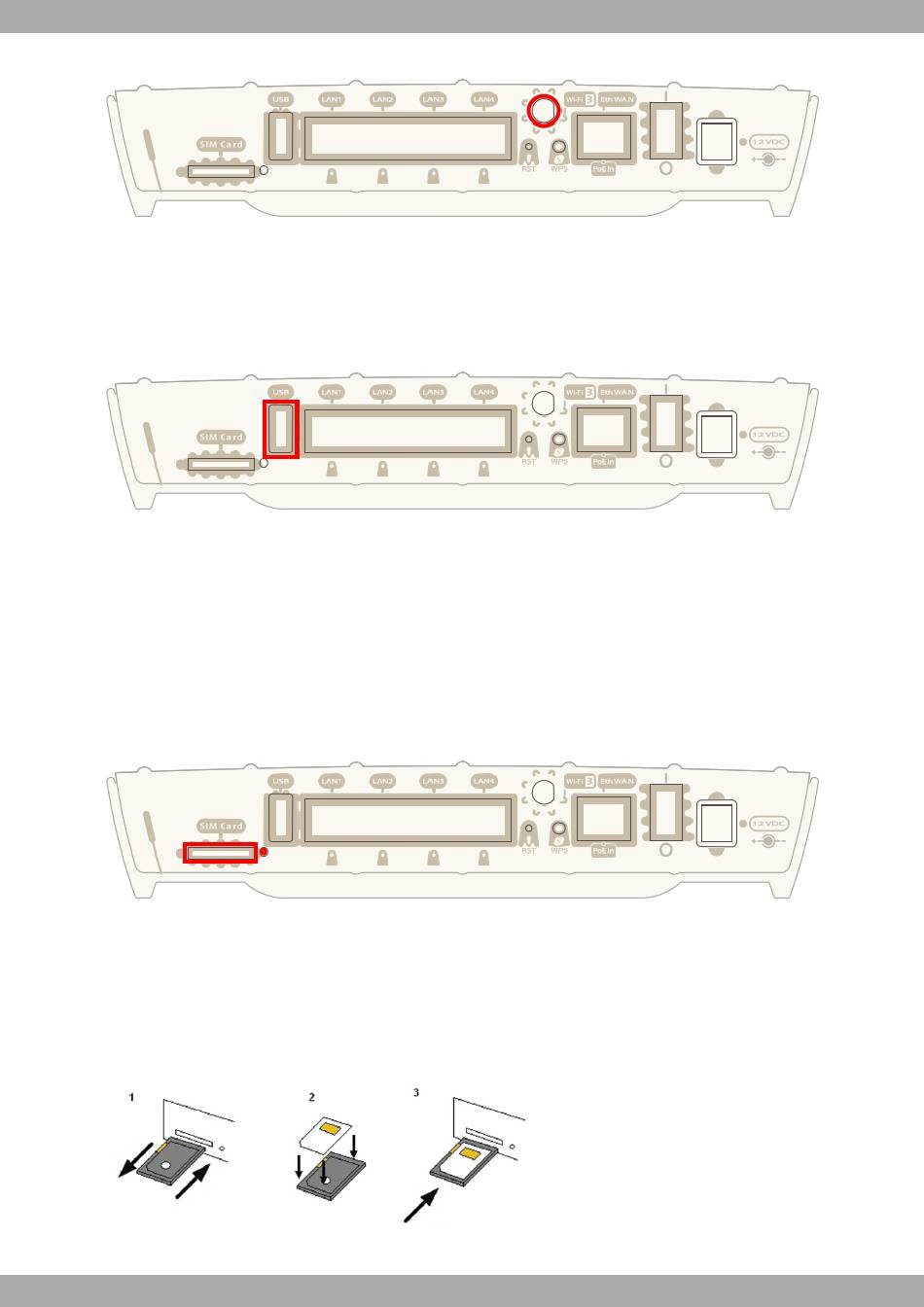

3.6.5 Connecting a 3G USB device (USB connector)

The Teldat K family has a USB HOST 2.0 Type A connector interface that allows 3G USB modems to be connected.

The interface can be activated by purchasing the corresponding software license.

USB 3G Connector

Fig. 16:

The Teldat K family has a Wireless WAN interface, which means that at least one SIM card must be inserted in the

device for it to work. There are certain services (CDMA) provided by several carriers in some countries that do not

require SIM cards.

The Teldat K has two SIM trays, while the Teldat KF only has one; the one in the external module.

One is located on the rear panel of the router, as shown in the following figure.

External module SIM card

Fig. 17:

The procedure to insert the SIM card in the external SIM tray is as follows: first place the device so you can see the

rear panel, as shown in figure 17, and then carry out the following steps:

(1) Press the button until the SIM tray comes out.

(2) Place the SIM on the tray.

(3) Insert the tray in the slot and return the tray to its original position.

Instructions to insert the SIM in the external SIM tray

Fig. 18:
