- Page 1 Manual Teldat S.A. Regesta-PRO-ER Installation Manual Copyright© Teldat-DM480-I Version 4.2 7/2015 Teldat S.A. Regesta-PRO-ER...
- Page 2 This publication is subject to change. Teldat S.A. offers no warranty whatsoever for information contained in this manual. Teldat S.A. is not liable for any direct, indirect, collateral, consequential or any other damage connected to the deliv- ery, supply or use of this manual.
-
Page 3: Table Of Contents
Table of Contents Teldat S.A. Table of Contents Related Documents....... . . 1 Chapter 1 About This Guide . - Page 4 Table of Contents Teldat S.A. Chapter 4 Installing the SIM card ......19 Identifying the SIM trays .
-
Page 5: I Related Documents
Related Documents Teldat S.A. I Related Documents Teldat-Dm748-I Software Updating Teldat-Dm781-I Cellular Interface Regesta-PRO-ER... -
Page 6: About This Guide
Each chapter focuses on a specific part of the router hardware and its components. All technical specifications, or in- formation on a component, can be found in the relevant chapter. 1.7 Technical Support Teldat S.A. offers a technical support service. The device software can be regularly updated for maintenance and new features. Contact information: Web: http://www.teldat.com... - Page 7 1 About This Guide Teldat S.A. Email: support@teldat.com Regesta-PRO-ER...
-
Page 8: Regesta-Pro-Er Routers
2 Regesta-PRO-ER Routers Teldat S.A. Chapter 2 Regesta-PRO-ER Routers 2.1 Characteristics The Regesta-PRO-ER router family is a range of IP routers particularly suited for hostile and extreme environments. Thanks to its ruggedized mechanics and special characteristics, allowing it to bear extreme temperatures, this router is particularly suited for: industrial environments, industrial telecontrol, distribution installations for electricity, gas, wa- ter, etc. -
Page 9: Power Supply
2 Regesta-PRO-ER Routers Teldat S.A. The devices with software version 10.08.29 and above have the option to convert the console serial port into a DCE asynchronous serial port in all models. This port has the following limitations: (1) Its speed is limited to 38400 bps. -
Page 10: Components And Power Supply
3 Components and Power Supply Teldat S.A. Chapter 3 Components and Power Supply The following chapter provides information on the Regesta-PRO-ER router family chassis and its components. This information includes: • Components. • Assembly instructions. • Power supply. • RST button. - Page 11 3 Components and Power Supply Teldat S.A. In addition to the connectors, the front panel also contains a set of LEDs that provide information on what is happen- ing in the router. The LEDs are organized, as shown in the following figure, on the router front panel: Front panel LEDs Fig.
-
Page 12: Rear Panel
3 Components and Power Supply Teldat S.A. established. The device is connected to the ADSL network. Cellular interface corres- Green Coverage level above - ponding to the active SIM 90dBm. Yellow Coverage level between -90 dBm and -100 dBm. Coverage level below - 100dBm. -
Page 13: Underside Panel
3 Components and Power Supply Teldat S.A. 3.1.3 Underside Panel The following figure illustrates the underside panel: Underside Panel Fig. 5: The underside panel elements are as follows: Underside panel elements table Item Description Slots for the accessories to attach the device to the DIN rail mount. For further in-... -
Page 14: Assembly
3 Components and Power Supply Teldat S.A. Upper Panel Fig. 6: The upper casing elements are as follows: Upper casing elements table Items Description A, B, C, D Screws that allow you to disassemble the router’s upper casing. 3.2 Assembly 3.2.1 Installing a DIN rail mount accessory... -
Page 15: Installing The Protector

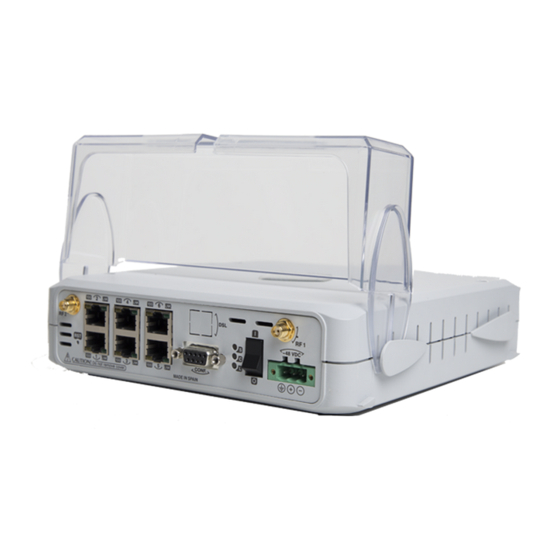

3 Components and Power Supply Teldat S.A. DIN rail mount: Position 1 Fig. 7: DIN rail mount: Position 2 Fig. 8: 3.2.2 Installing the Protector The transparent protector protects the device connectors from being manipulated while the device is operating. The protector is not mounted on the device in the package;... -
Page 16: Power Source
3 Components and Power Supply Teldat S.A. Installing the transparent protector Fig. 9: 3.3 Power Source The Regesta-PRO-ER router family is powered with an external -48 V DC or a 220 V AC voltage element, depend- ing on the model. -
Page 17: Device Powered With -48 V Dc
3 Components and Power Supply Teldat S.A. 3.3.1.1 To Connect • Make sure that the power supply cable is not connected to the device. • Connect all data cables. • Connect the power supply cable to the device. • Place the on/off switch in position 1. -
Page 18: Rst Button
3 Components and Power Supply Teldat S.A. 3.4 RST Button There are two types of Regesta-PRO-ER routers: one has an externally accessible button on the front panel labeled “RST” and the other has an internally accessible button with no “RST” label on the front panel. This button has two functions: •... -
Page 19: Data Connections
The WWAN interfaces with access to the 2G network (GPRS/EDGE) are operative in all the devices in this range. To access the 3G network (UMTS/HSDPA/HSUPA) the device must have the correspond- ing software license incorporated. Teldat has a series of accessories (dipole antennas, exterior antennas, roof mount antennas, extension cables, etc.) Regesta-PRO-ER... -
Page 20: Connecting Adsl/Adsl2+ Over Isdn (Dsl Connector)
3 Components and Power Supply Teldat S.A. that allow you to install the Regesta-PRO-ER routers in different locations. 3.5.2.1 Positioning the Antenna The antenna orientation and its location with respect to other wireless devices and radiation devices (such as com- munication devices, personal computers, etc.) can influence significantly the device performance. -
Page 21: Connecting To The Serial Ports
3 Components and Power Supply Teldat S.A. the use of telephones directly connected to the same line. It is necessary to use a mechanism known as “ splitter” , which separates the band frequencies used for voice telephony from those used by the ADSL connection to transmit data. - Page 22 3 Components and Power Supply Teldat S.A. 3.5.4.1 Console connector as serial port (CONF connector) Software version 10.08.29 and following allow you to convert the console port into an RS-232 asynchronous DCE serial port. This port has the following characteristics: (1) DCE port.
-
Page 23: Installing The Sim Card
4 Installing the SIM card Teldat S.A. Chapter 4 Installing the SIM card The Regesta-PRO-ER routers have Wireless WAN interfaces that in order to operate may require at least one SIM card that must be inserted into the device. There are determined services (CDMA) provided by some carriers in cer- tain countries that do not require SIM cards. -
Page 24: Procedure To Install The Sim
4 Installing the SIM card Teldat S.A. Location of the SK1 and SK2 SIM trays Fig. 21: 4.2 Procedure to install the SIM In order to insert a SIM card in a tray, locate the retaining flange (metal fastening with OPEN and LOCK on it) so you can open the tray and place the SIM card on it. -
Page 25: Appendix A Technical Information
The software required to update Teldat routers is supplied in a format known as distribution. This consists of a single file which contains all the files needed to update your device as well as in-depth information on the contents of the files. -
Page 26: Connecting To The Router
Generally, the firmware is independent from the device’s software. There is an UPGRADE file for each Wire- less LAN module. Please ask your distributor for the correct UPGRADE file (according to the module in your device). The manual describing the CELLULAR interface (Teldat-Dm781-I) explains how to upgrade the module. A.3 Connecting to the router There are two ways of accessing the device CLI: •... -
Page 27: Connectors
Technical Information Teldat S.A. Note Some devices leave the factory with customized settings. This personalization can mean that the de- fault configuration is different from the one shown above. This initial configuration allows you to access the device configuration console through the Telnet IP protocol. To do this, follow these steps: •... -
Page 28: Configuration Connector
Technical Information Teldat S.A. A.4.4 Configuration Connector CONF DB9 CONFIGURATION A.4.5 Serial Port Connectors SERIAL A.5 Technical Specifications A.5.1 LAN Interface PROTOCOLS Ethernet (802.3) SPEED Switch 10/100 Mbps (Base T) CONNECTOR RJ45 female A.5.2 DSL Interface STANDARDS Please see the DSL manual... -
Page 29: Wireless Wan Interface
Technical Information Teldat S.A. A.5.3 Wireless WAN Interface STANDARDS GPRS, UMTS, HSDPA, HSUPA, HSPA+, LTE … Depends on the device's wire- less WAN version. SPEED Depends on the device's wireless WAN version. Please see the manual on the ap- propriate module. -
Page 30: Appendix B Safety Information
Safety information Teldat S.A. Appendix B Safety information B.1 Recycling and the Environment Please do not, under any circumstances, throw away any Regesta-PRO-ER with normal domestic waste. Ask your local town hall for information on how to correctly dispose of them in order to protect the environment against e- waste. -
Page 31: Translated Safety Warnings
Safety information Teldat S.A. B.2 Translated Safety Warnings To Connect To Disconnect Regesta-PRO-ER...
