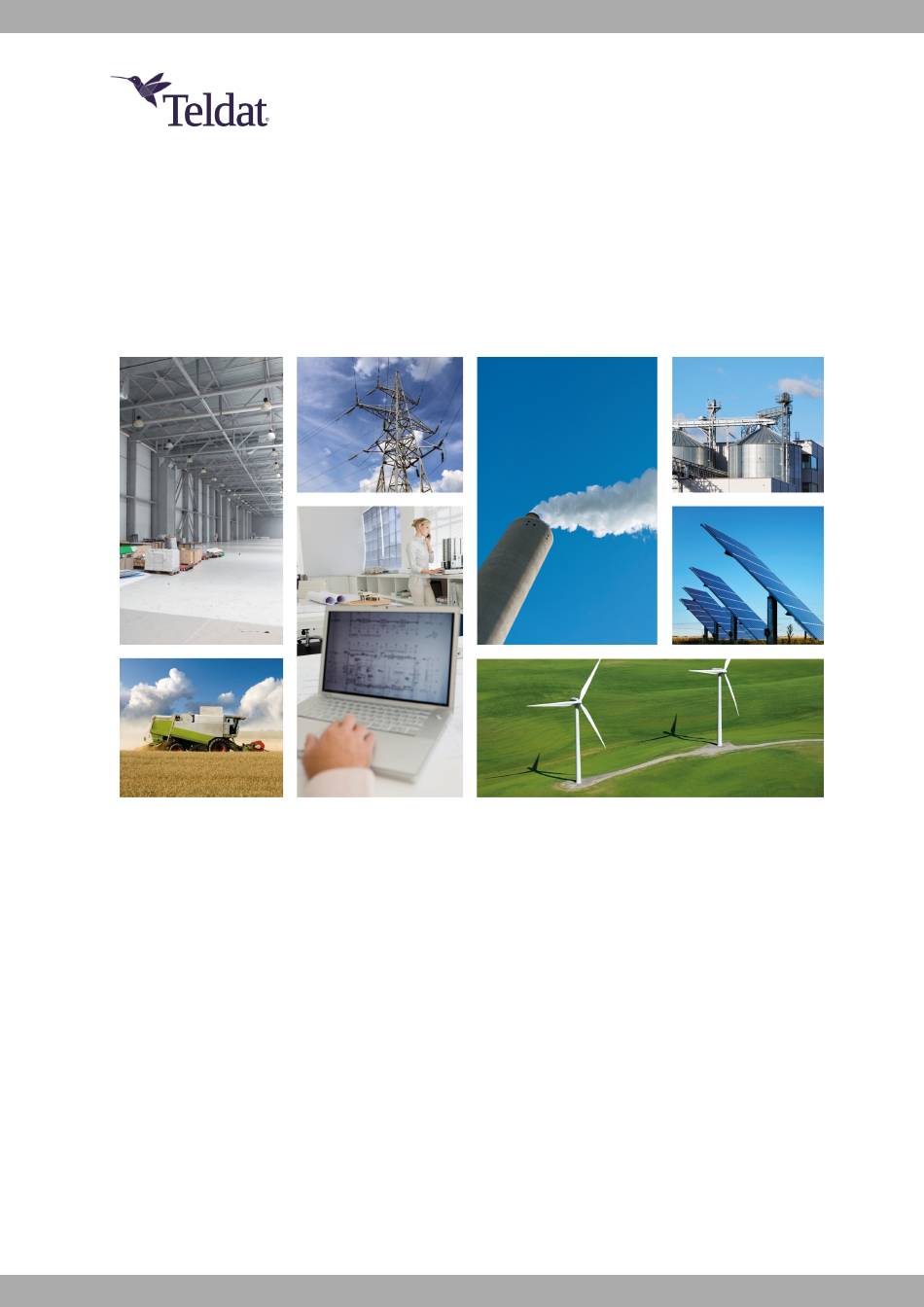

- Page 1 Manual Teldat S.A. Regesta Smart PRO Installation Manual Copyright© Teldat Dm1002-I Version 1.0 12/2019 Teldat S.A. Regesta Smart PRO...
- Page 2 This publication is subject to change. Teldat S.A. offers no warranty whatsoever for information contained in this manual. Teldat S.A. is not liable for any direct, indirect, collateral, consequential or any other damage connected to the deliv- ery, supply or use of this manual.
-
Page 3: Table Of Contents
Power Connector pins ....... . . 4.1.2 Power Connector cable ....... . Regesta Smart PRO... - Page 4 RS-232 Serial Port Connectors ......A.1.8 RS-485 Serial Port Connectors ......Regesta Smart PRO...
- Page 5 Radio Information ....... . . 40 RF WWAN Specifications ....... Regesta Smart PRO...
-
Page 6: About This Manual
The information provided in this installation manual only applies to the Regesta Smart PRO Series. 1.2 Who should read this manual? This manual should be read by the person installing and configuring the Regesta Smart PRO router for the first time. The installer should be familiar with network structures, terms, and concepts. -
Page 7: Safety Warnings
1 About This Manual Teldat S.A. 1.8 Safety Warnings "DC-powered device" "AC-powered device" Regesta Smart PRO... - Page 8 1 About This Manual Teldat S.A. Regesta Smart PRO...
-
Page 9: Related Documentation
1 About This Manual Teldat S.A. 1.9 Related Documentation Teldat Dm709-I LAN Interfaces Teldat Dm781-I Cellular Interface Teldat Dm748-I Software Updating 1.10 Technical Support Contact information: Web: http://www.teldat.com Tel.: +34 918 076 565 Fax: +34 918 076 566 Email: support@teldat.com... -
Page 10: Product Overview
2 Product Overview Teldat S.A. Chapter 2 Product Overview This chapter provides an overview of the features available for Regesta Smart PRO routers and its components. This information includes: • General Description on page 5 • Device Models on page 6 •... -
Page 11: Device Models
Code Description RWRTHR2ZAC Regesta Smart PRO 1 LAN Gigabit Ethernet port, 1 WAN Combo Gigabit Ethernet port, 1 RS232, AC powered (110 - 240 VAC). RWRTHR2ZDC Regesta Smart PRO 1 LAN Gigabit Ethernet port, 1 WAN Combo Gigabit Ethernet port, 1 RS232, DC powered (12 - 72 VDC). -
Page 12: Hardware Features
(110 - 240 VAC). RWRTHR2LDC Regesta Smart PRO 1 LAN Gigabit Ethernet port, 1 WAN Combo Gigabit Ethernet port, 1 RS232, 1xWWAN (Bands: LTE 1, 3, 5, 7, 8, 20, 38, 40, 41 - WCDMA 1, 5, 8), DC powered (12 - 72 VDC). -
Page 13: Components
SIM installed in this tray. Amber SIM2 operating SIM. This is processing traffic through the car- rier for the SIM installed in this tray. Cellular interface Cellular interface is unavailable, not installed or not registered. Regesta Smart PRO... -
Page 14: Connector Panel
The connector panel is covered by a protective casing. To access the former, you need to remove the latter. For fur- ther information on how to remove/install the protective casing, please see Removing/Installing the Connectors Pro- tector on page 14. The following figure shows the panel, which includes all Regesta Smart PRO router connectors. Regesta Smart PRO... - Page 15 WAN Gigabit Ethernet. RJ-45 connector. For more information about the WAN interface with Base-T connector, refer to: WAN connections on page 21 WAN Base-T Connector on page 34 WAN Base-T Interface on page 37 LAN Gigabit Ethernet Port. Regesta Smart PRO...
- Page 16 34 LAN Interface on page 37 POWER. Power connection. Depending on the model, the Regesta Smart PRO can be AC or DC powered. For more information about the power connection options, refer to: Power Source on page 19.
-
Page 17: Underside Panel
MAC, serial number, etc. 2.5 Power Supply Depending on the model, the Regesta Smart PRO offers three different Power Supply options. Note Before connecting the router, please, identify your model and read the following instructions carefully! -
Page 18: Ac Power Supply
Teldat S.A. 2.5.1 AC Power Supply The Regesta Smart PRO AC version is powered with an external AC source. Nominal power voltages are 110-240 V 2.5.2 DC Power Supply The Regesta Smart PRO DC version is powered with an external DC source. Nominal power voltages are 12-72 V 2.5.3 Multi-Range (MR) Power Supply... -
Page 19: Installing The Router
3 Installing the Router Teldat S.A. Chapter 3 Installing the Router This chapter describes the steps to successfully install the Regesta Smart PRO router. It contains the following sec- tions: • Workplace Conditions on page 14 • Removing/Installing the Connectors Protector on page 14 •... - Page 20 3 Installing the Router Teldat S.A. Slide up the case as shown: Regesta Smart PRO...
-
Page 21: Installing A Din Rail Mount Accessory
3.3 Installing a DIN rail mount accessory The Regesta Smart PRO can be installed on a standard DIN rail. To mount it on a DIN rail, a special kit is needed. This kit is included in the delivery. The DIN rail kit allows the device to be installed in different positions. -
Page 22: Wall Mounting
3.4 Wall mounting The Regesta Smart PRO can be attached to a wall, thanks to the 3 perforations. To ensure it is properly fastened, screws must be installed in said holes. Before mounting the device on the wall, remove the protective casing. - Page 23 3 Installing the Router Teldat S.A. Fig. 13: Perforations for wall mounting. Regesta Smart PRO...
-
Page 24: Connecting The Router
4 Connecting the router Teldat S.A. Chapter 4 Connecting the router This chapter describes how to connect the Regesta Smart PRO router to Ethernet devices and networks. This chapter contains the following sections: • Power Source on page 19 •... -
Page 25: Power Connector Cable
(such as lighting, etc.); it is highly recommended that all data devices should be connected to the same power source. This will avoid operating and premature aging prob- lems of drivers and other components. Regesta Smart PRO... -
Page 26: Connecting
4.2.2 WAN connections The Regesta Smart PRO has one Ethernet COMBO Gigabit interface for WAN connection. This port has 2 connect- ors - SFP for an optical link and RJ-45 for a 10/100/1000 Base-T link. However, they cannot work simultaneously. -
Page 27: 4-Port Ethernet Switch Connections
EN 60825-1:2007 standard. 4.2.3 4-port Ethernet Switch connections Some of the Regesta Smart PRO router models incorporate a 4-port 10/100/1000 Base-T switch with automatic MDI/ MDIX to connect to a local area network (LAN). Please pay careful attention to the labeling to avoid mistaking this switch for other types of ports:... -
Page 28: Wwan Antenna Connections (Rf Connectors)
The RF1 connector is connected to the module’s MAIN connector, while the RF2 connector is linked to the AUX con- nector. Using these antennas in the Regesta Smart PRO router improves the quality of the signal received and transmitted by the WWAN module. - Page 29 To achieve optimum performance, any radio frequency accessories installed (antennas and cables) should be those recommended by Teldat. Teldat offers a series of accessories (90º mount antennas, antennas for outdoor installation, antennas for ceiling in- stallation, extension cables, etc.) that allow you to install the devices in different locations.
-
Page 30: Serial Ports Connections
4.2.5 Serial Ports connections The Regesta Smart PRO includes three RJ45 connectors to provide serial ports. Depending on the model, the two RJ45 connectors (labeled "Serial") may be inoperative. 4.2.5.1 Console Connector as Serial Port (CONF connector) The console port can be converted into an RS-232 asynchronous DCE serial port. -
Page 31: Installing The Sim Card
4.3 Installing the SIM card The Regesta Smart PRO has a Wireless WAN interface that, in order to operate, may require at least one SIM card to be inserted into the device. There are certain services (CDMA) provided by several operators in some countries that do not require SIM cards. -
Page 32: Identifying The Sim Trays
Once you have removed the case, you will be able to see the different elements illustrated below. The Regesta Smart PRO incorporates 2 SIM cards, which allow you to execute some special configurations. For ex- ample, when installing two SIM cards one can be used as backup. To carry out this type of configuration, you must assign a tray to each SIM (since they require different configuration parameters). -
Page 33: Rst Button
Fig. 24: 4.4 RST Button The Regesta Smart PRO has a button that can be accessed from the outside and is labeled “RST” . It is located on the connector panel and has two functions. • To trigger a reboot. -
Page 34: Updating The Software
For further information, please see manual: “Teldat Dm781-I Cellular Interface ” . 4.6 Updating the software The Regesta Smart PRO router can be updated to new releases. Please contact your distributor for further details on new releases. There are various ways to update one of our routers. For further information, please see manual Dm 748-I Software Updating. - Page 35 4.6.1.1 Connecting through the local console (CONF connector) The Regesta Smart PRO has a RJ.45 female connector on the front panel known as CONF., which provides access to the device's local console. To configure this, connect the CONF. port to an asynchronous terminal (or to a PC with terminal emulation).
-
Page 36: Compliance
International Phone +34 91 807 65 65 5.2 Intended use of the equipment The Regesta Smart PRO is an industrial router. Operation of this equipment in a residential environment could cause radio interference. 5.3 EC Declaration of Conformity (No Radio version) English (EN) Hereby, Teldat S.A. -
Page 37: Ec Declaration Of Conformity (Radio Version)
In accordance with Article 10 of 2014/53/EU, we inform you that national restrictions and requirements may apply when it comes to authorization. These can evolve over time. Teldat S.A. recommends that you check with local au- thorities what the latest status of national regulations is. -
Page 38: Weee Information
El símbolo del contenedor con la cruz, que se encuentra en el aparato, significa que cuando el equipo haya llegado al final de su vida útil, deberá ser llevado a los centros de recogida previstos, y que su tratamiento debe estar separado del de los residuos urbanos. Regesta Smart PRO... -
Page 39: Appendix A Technical Information
BI-DC+ BI-DC- BI-DB- BI-DB- BI-DD+ BI-DD- A.1.2 WAN Base-T Connector RJ45 WAN RJ45 PIN FE Signals GE Signals BI-DA+ BI-DA+ BI-DA- BI-DA- BI-DB+ BI-DB+ BI-DC+ BI-DC- BI-DB- BI-DB- BI-DD+ BI-DD- A.1.3 WAN SFP Connector Standard SFP connector Regesta Smart PRO... -
Page 40: Lan Switch Connector
BI-DA+ BI-DA- BI-DA- BI-DB+ BI-DB+ BI-DC+ BI-DC- BI-DB- BI-DB- BI-DD+ BI-DD- A.1.5 WWAN/RF Connectors Devices equipped with this interface have two SMA female connectors installed. SMA Female Internal RF in/out External A.1.6 Configuration Connector RJ45 CONFIGURATION CONF Regesta Smart PRO... -
Page 41: Rs-232 Serial Port Connectors
2 wires terminal block 5.08 mm - AC-powered version: pitch Phase and Neutral connectors without assignation. - DC-powered version: V+ and V- connectors with polarity. A.2 Technical Specifications A.2.1 Hardware Architecture MEMORY 128 Mbytes in SDRAM. STORAGE UNIT FLASH Memory (32 Mbytes). Regesta Smart PRO... -
Page 42: Lan Interface
Standard for E1 interface (1.5 KV). A.2.5 WAN SFP Interface STANDARDS 802.1Q (VLAN). 1000-Base-X. MSA and SFF 8472 compliant. SPEED 1000 Mbps full duplex. TYPES LX/LH (single-mode 1310 nm). SX (multi-mode 850 nm). ZX (single-mode 1550 nm). CONNECTOR Standard SFP connector. Regesta Smart PRO... -
Page 43: Wireless Wan Interface
RJ-45 female on the connector panel (optional). A.2.9 RS-485 Serial Interface STANDARDS RS-485 2-4 wires/RS-422 configurable via software. Bus termination configurable via software. SPEED From 300 to 115200 bps. CONNECTOR RJ-45 female on the connector panel (optional). Regesta Smart PRO... -
Page 44: Power Supply Specifications
LENGTH x WIDTH x HEIGHT 140 x 80 x 190 mm. WEIGHT 1 Kg. A.2.12 Environmental Specifications TEMPERATURE RANGE OPERATION: -20 ºC to +70 ºC STORAGE: -25º to +70 ºC RELATIVE HUMIDITY 5 % to 93 % Regesta Smart PRO... -
Page 45: Radio Information
Teldat S.A. Appendix B Radio Information B.1 RF WWAN Specifications The Regesta Smart PRO model with the EC25 module provides network connectivity over several radio frequency bands, in accordance with 3GPP Standards. • LTE (3GPP Release 10), • DC-HSPA+ (3GPP Release 8), •...
