4 Connecting the Router

4.1.3 Connecting

4.1.4 Disconnecting

4.2 Data Connections

The Regesta Smart PRO offers the following data connections:

4.2.1 LAN Connection

The Regesta Smart PRO is equipped with a 10/100/1000 Base-T Gigabit Ethernet port, which supports automatic
MDI/MDIX for seamless connection to a local area network (LAN). Note that this interface operates independently
from any connected switch and functions like any other interface.

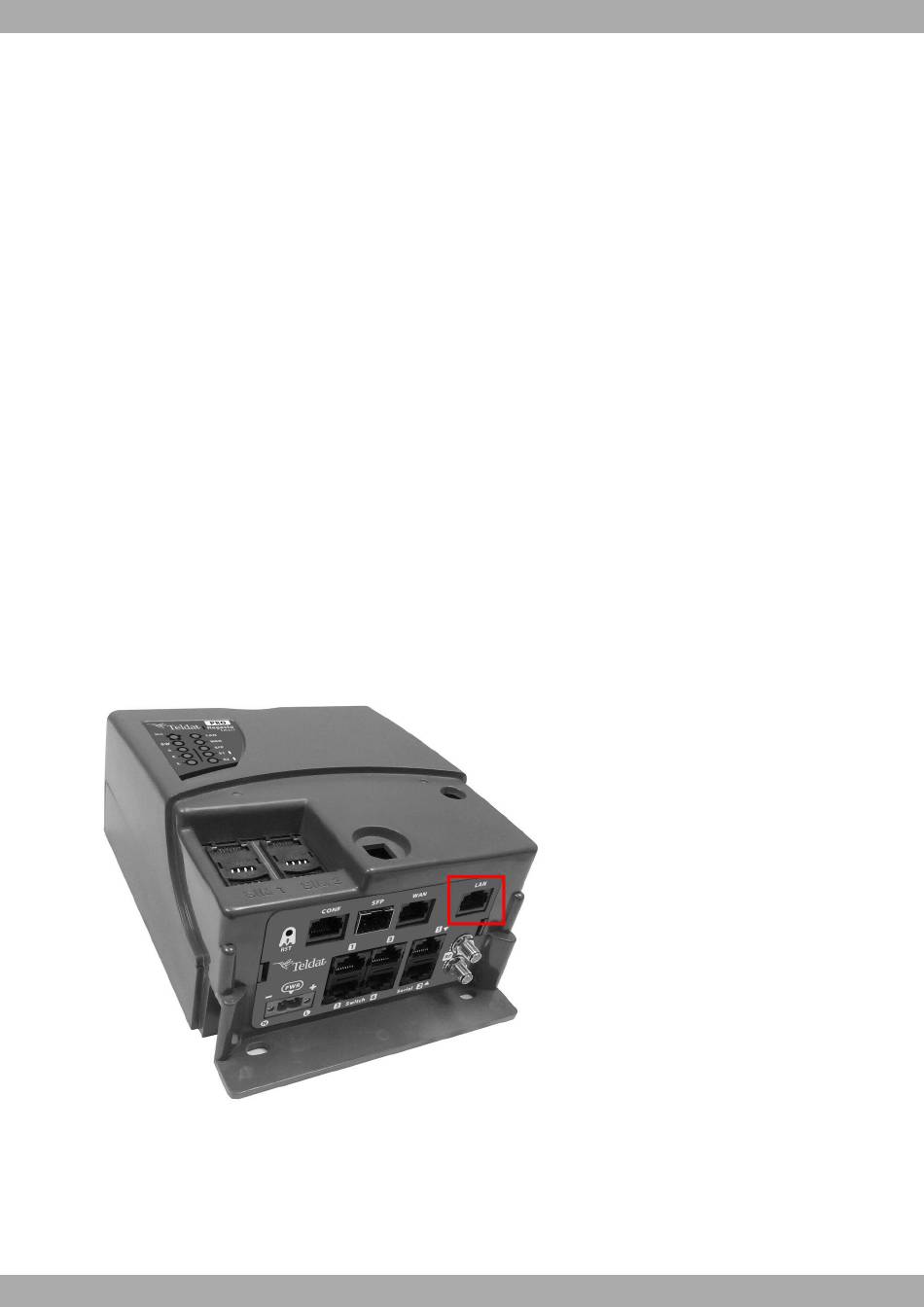

Make sure to carefully read the labels on these ports to differentiate them from other types of connections:
LAN Port
Fig. 10:

4.2.2 WAN Connections

The Regesta Smart PRO features a single Ethernet COMBO Gigabit interface for WAN connections, with two con-
nectors: an SFP for optical links and an RJ45 for 10/100/1000 Base-T links. These connectors cannot be used simul-
taneously. The interface operates independently from the switch, if present, and is managed like any other interface.
22
• Ensure that the power supply is NOT connected to either the electricity supply
or the router.
• First, connect all data cables.
• Next, connect the power supply cable to the device.
• Install the protective case over the connectors.
• Finally, plug the power supply cable into the electric outlet.
• Disconnect the power supply from the electricity supply.
• Remove the protective case.
• Disconnect the power supply from the router.
• Disconnect the data cables.
