3 Components and Power Supply
RS1800w
Fig. 16:

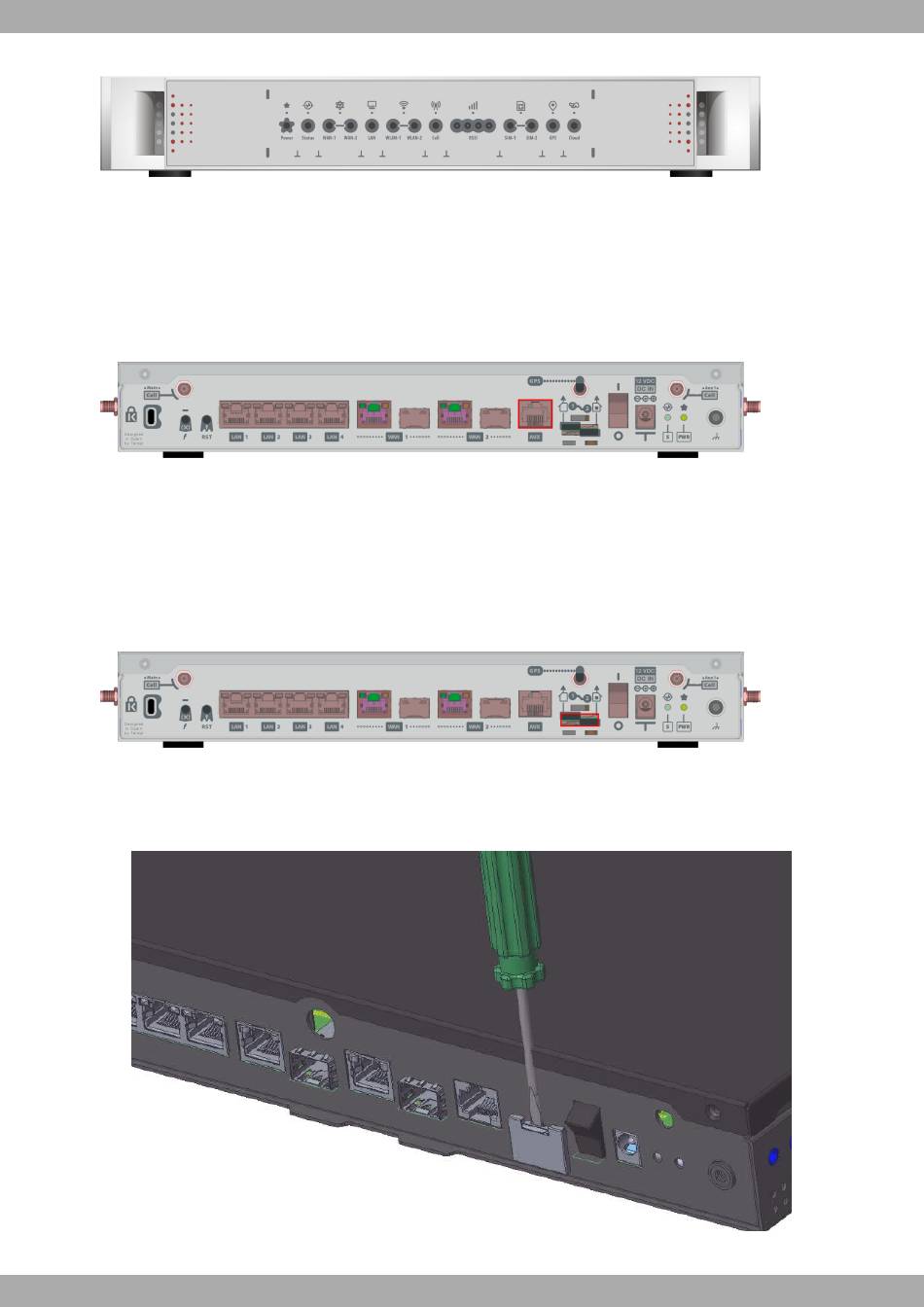

3.7.6 Connecting for configuration

The RS1800 series router has a RJ45 female connector on the front panel (labeled "Aux.") that provides access to
the device's local console
For further information, please see
Aux. Connector
Fig. 17:

3.8 Installing the SIM card

Depending on the model, the RS1800 series router has a Wireless WAN interface that may need a SIM card (or two)
to operate.
The RS1800 series device is equipped with two SIM trays located on its rear panel, as shown in the following figure.
SIM trays
Fig. 18:
To insert the SIM cards in the SIM trays, first remove the cover following these steps:
(1) Insert a screwdriver in the slot.
Insert the screwdriver in the slot
Fig. 19:
18
Connecting to the device on page 28.
Teldat S.A.
RS1800 series
