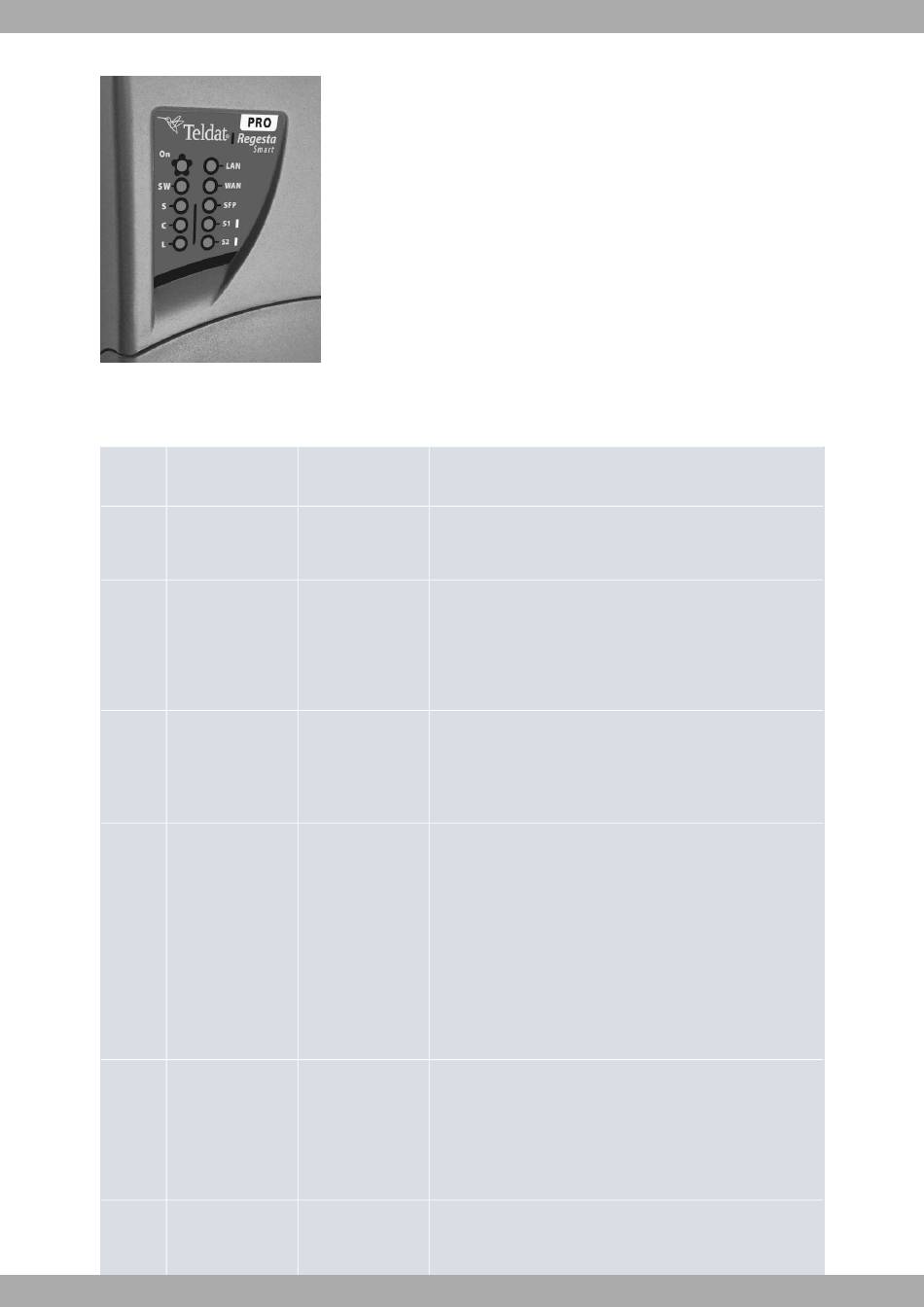

Front Panel
Fig. 2:
During startup, LED Lwill illuminate green. Once the device has booted, the LEDs will indicate the following statuses:
LEDs
LED Associated Inter-
face
Power
ON
Ethernet Switch in-
SW
terface
Cellular interface
S
Cellular interface
C
Cellular interface
L
corresponding to
the active SIM.
Ethernet LAN inter-
LAN
face
Regesta Smart PRO
Status Description
Off Device is not powered on.
Green Device is powered on.
Off The Ethernet Switch is either disabled or not connected.
Ethernet connection (link) is established on at least one port:
Green
• Steady: No data transfer is occurring.
• Flashing: Data is being transferred.
Green SIM1 is operational, processing traffic through the carrier for
the SIM installed in this tray.
Amber
SIM2 is operational, processing traffic through the carrier for
the SIM installed in this tray.
Red The cellular interface is unavailable, not installed or not re-
gistered.
Amber
The device has registered on the network and is establishing
the PDP connection.
Green
The device is registered, the PDP connection is established,
and IP traffic can be sent through the CELLULAR interface.
• Steady: No data transfer is occurring.
• Flashing: Data is being transferred.
Off The cellular interface is not active.
Red Coverage level below -100dBm.
Amber Coverage level between -90dBm and -100dBm.
Green Coverage level above -90dBm.
Off The Ethernet LAN is either disabled or not connected.
Ethernet connection (link) established:
