Connector Panel

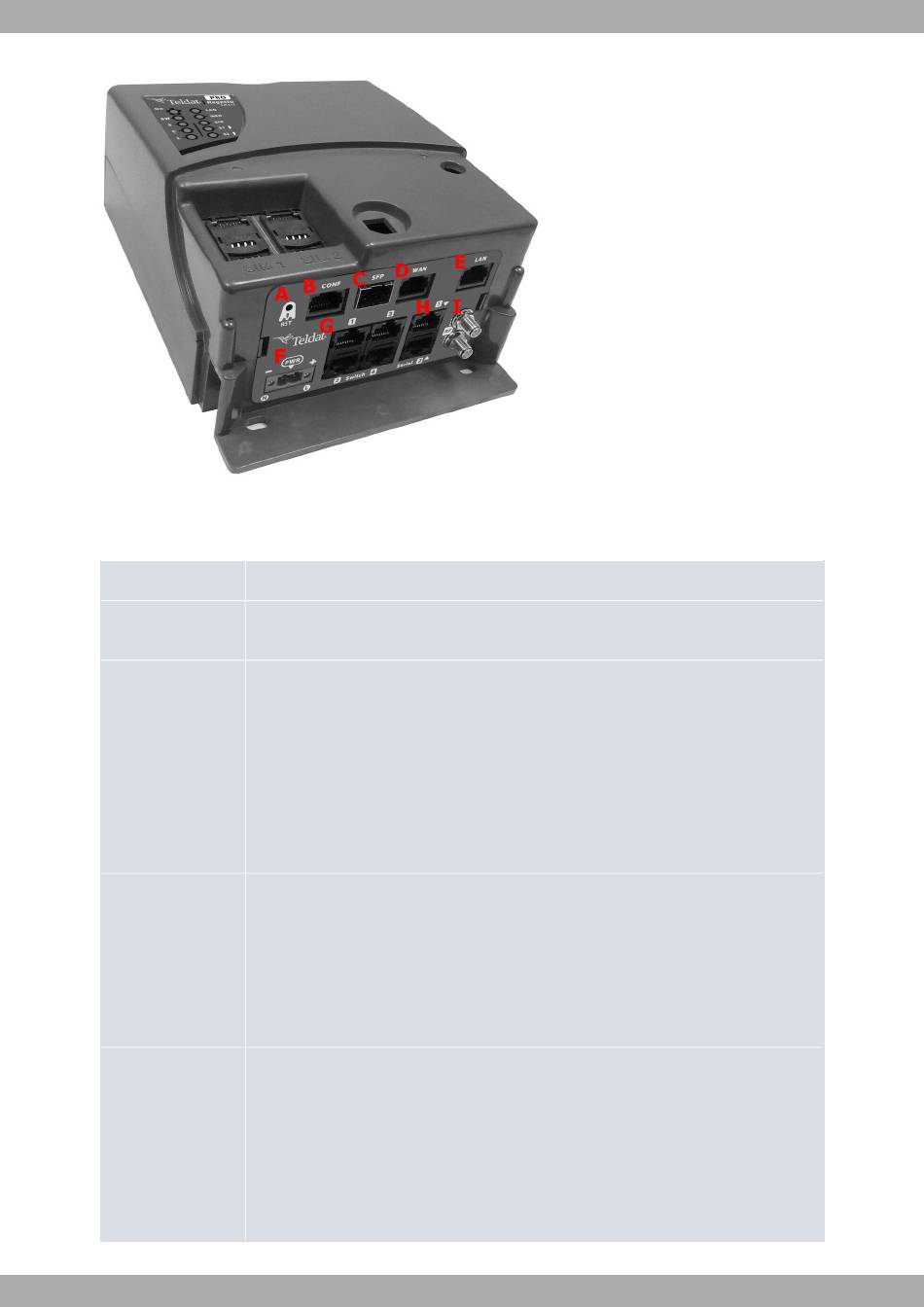

Fig. 3:
The connector panel elements are as follows:
Front Panel Elements
Item
A
B
C
D
Regesta Smart PRO
Description
RST. Reset button. For further details on the functionality of the reset button, please see
RST Button on page 29.
CONF. RJ45 connector providing access to the device's local console for configuration and
monitoring purposes. (This connector can also be used as an RS-232 asynchronous DCE
serial port)
For more information about the CONF connector, please refer to:
- Console Connector as Serial Port (CONF Connector)
- Configuration Connector on page 36
- Configuration Interface on page 39
WAN Gigabit Ethernet. SFP connector.
For more information about the WAN interface with the SFP connector, refer to:
- WAN Connections on page 22
- WAN SFP Connector on page 35
- WAN SFP Interface on page 38
WAN Gigabit Ethernet. RJ45 connector.
For more information regarding the WAN interface with the Base-T connector, please refer
to:
- WAN Connections on page 22
- WAN Base-T Connector on page 35
- WAN Base-T Interface on page 38
