- Page 1 Manual Teldat S.A. Regesta Smart PLC Installation Manual Copyright© Teldat dm339-I Version 1.0 11/2019 Teldat S.A. Regesta Smart PLC...
- Page 2 This publication is subject to change. Teldat S.A. offers no warranty whatsoever for information contained in this manual. Teldat S.A. is not liable for any direct, indirect, collateral, consequential or any other damage connected to the deliv- ery, supply or use of this manual.
-
Page 3: Table Of Contents
Disconnecting ........Regesta Smart PLC... - Page 4 Technical Specifications ....... . A.2.1 Hardware Architecture....... . . Regesta Smart PLC...
- Page 5 Radio Information ....... . . 37 RF WWAN Specifications ....... Regesta Smart PLC...
-
Page 6: About This Manual
The information provided in this installation manual only applies to the Regesta Smart PLC Series. 1.2 Who should read this manual? This publication is for the person installing and configuring the Regesta Smart PLC router for the first time. The in- staller should be familiar with network structures, terms, and concepts. -
Page 7: Safety Warnings
1 About This Manual Teldat S.A. 1.8 Safety Warnings Connecting Disconnecting Connecting Disconnecting Regesta Smart PLC... - Page 8 1 About This Manual Teldat S.A. Regesta Smart PLC...
-
Page 9: Related Documentation
1 About This Manual Teldat S.A. 1.9 Related Documentation Teldat Dm709-I LAN Interfaces Teldat Dm781-I Cellular Interface Teldat Dm748-I Software Updating Teldat Dm823-I PLC Gateway 1.10 Technical Support Contact information: Web: http://www.teldat.com Tel.: +34 918 076 565 Fax: +34 918 076 566 Email: support@teldat.com... -
Page 10: Product Overview

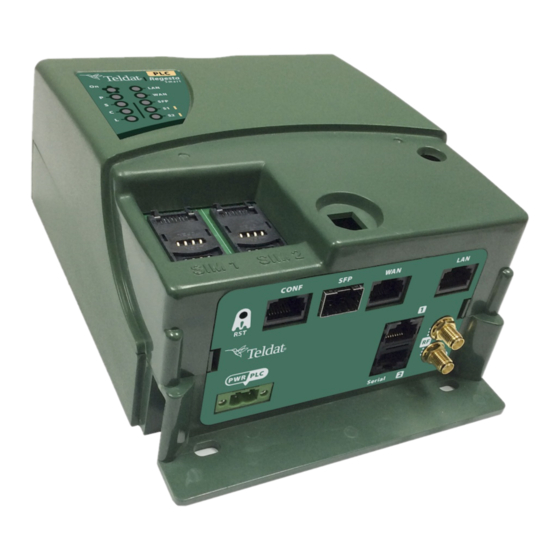

11 2.1 General Description The Regesta Smart PLC router family is a range of IP routers specially designed to operate in hostile and extreme environments. Thanks to their ruggedized mechanics and special characteristics, which allow them to bear extreme temperatures, these routers are particularly suited for: industrial environments, industrial telecontrol, distribution in- stallations for electricity, gas, water, etc. -
Page 11: Device Models
Code Description RWRTHR2ZAC-PLC Regesta Smart PLC 1 LAN Gigabit Ethernet port, 1 WAN Combo Gigabit Ether- net port, 1 RS232, AC powered (110 - 240 VAC). RWRTHR2LAC-PLC Regesta Smart PLC 1 LAN Gigabit Ethernet port, 1 WAN Combo Gigabit Ether- net port, 1 RS232, 1xWWAN (Bands: LTE 1, 3, 5, 7, 8, 20, 38, 40, 41 - WCDMA 1, 5, 8), AC powered (110 - 240 VAC). -
Page 12: Components
Associated Inter- Status Description face Power Device is not powered on. Green Device is powered on. PLC interface PRIME PLC interface is disabled, unavailable or not installed. PRIME PLC is running but no SNs are currently detected. Regesta Smart PLC... - Page 13 Port is in active state, shows interface activity: • Steady: Data is not being transferred. • Flashing: Data is being transferred. Multi standard seri- Serial port 2 is disabled or not initialized. al interface 2 Green Port is in active state, shows interface activity: Regesta Smart PLC...
-
Page 14: Connector Panel
For further information on how to remove/install the protective cover, please, see Removing/Installing the Con- nector Protector on page 12. The following figure shows the connector panel. This panel includes all the connectors on the Regesta Smart PLC router. Connector Panel Fig. 4:... - Page 15 34 RS-485 Serial Interface on page 36 RF/WWAN antenna connectors for the Cellular interface, depending on the model. For more information about the Cellular interface, refer to: WWAN Antenna connections (RF connectors) on page 20 Regesta Smart PLC...
-
Page 16: Underside Panel
Platform where the label containing product information is placed. This label con- tains information on the device model, MAC, serial number, etc. 2.5 Power Supply The Regesta Smart PLC AC version is powered from an external AC source. The nominal power voltages are 110-240 V AC. Regesta Smart PLC... -
Page 17: Installing The Router
3.2 Removing/Installing the Connector Protector The Regesta Smart PLC includes a protective case for connectors. The main function of the protective case is to provide protection against accidental electric shock by preventing direct contact with the connectors while the device is in operation. - Page 18 3 Installing the Router Teldat S.A. Slide the case up as shown below: Regesta Smart PLC...
-
Page 19: Installing A Din Rail Mount Accessory
3.3 Installing a DIN rail mount accessory The Regesta Smart PLC can be installed on a standard DIN rail. A special kit is required to mount the device on the DIN rail. This kit is included with delivery of the device. The DIN rail kit allows the device to be installed in different positions. -
Page 20: Wall Mounting
3.4 Wall mounting The Regesta Smart PLC can be mounted on a wall thanks to three holes. To ensure it is properly fastened, screws must be inserted in said holes. Before mounting the device on the wall, remove the protective case. - Page 21 3 Installing the Router Teldat S.A. Fig. 13: Holes for wall mounting. Regesta Smart PLC...
-
Page 22: Connecting The Router
4 Connecting the router Teldat S.A. Chapter 4 Connecting the router This chapter describes how to connect the Regesta Smart PLC router to Ethernet devices and networks. The chapter contains the following sections: • Power Source on page 17 •... -
Page 23: Power Connector Cable
The Regesta Smart PLC has the following data connections. 4.2.1 LAN connection The Regesta Smart PLC incorporates one 10/100/1000 BaseT Gigabit Ethernet port with automatic MDI/MDIX to connect to a local area network (LAN). Please pay careful attention to the labeling to avoid mistaking this port for other types of ports:... -
Page 24: Wan Connections
4.2.2 WAN connections The Regesta Smart PLC has one Ethernet COMBO Gigabit interface for WAN connection. This port has 2 connect- ors - SFP for an optical link and RJ-45 for a 10/100/1000 Base-T link - but they cannot work simultaneously. -
Page 25: Plc Connection
4.2.4 WWAN Antenna connections (RF connectors) The Regesta Smart PLC router, depending on the model, has two connectors for RF antennas. To assemble and disassemble the antennas, simply screw them into the connectors labeled RF1/RF2 (located on the device's con- nector panel). - Page 26 4 Connecting the router Teldat S.A. Installing these antennas in the Regesta Smart PLC router is necessary to improve the quality of the signal received and transmitted by the WWAN module. Some cellular technologies use the antenna diversity technique to improve the quality of the signal received(HSUPA, LTE, etc.).
-
Page 27: Serial Ports Connections
4.2.5 Serial Ports connections The Regesta Smart PLC includes three RJ45 connectors to provide serial ports. Depending on the model, the two RJ45 connectors, labeled as Serial, may be inoperative. 4.2.5.1 Console Connector as Serial Port (CONF connector) It’s possible to convert the console port into an RS-232 asynchronous DCE serial port. -
Page 28: Installing The Sim Card
4.3 Installing the SIM card The Regesta Smart PLC has a Wireless WAN interface that, in order to operate, may require at least one SIM card to be inserted into the device. There are certain services (CDMA) provided by several operators in some countries that do not require SIM cards. -
Page 29: Identifying The Sim Trays
Once you have removed the case, you will be able to see the different elements illustrated below. The Regesta Smart PLC incorporates 2 SIM cards, which allow you to execute some special configurations. For ex- ample, when installing two SIM cards one can be used as backup. To carry out this type of configuration, you must assign a tray to each SIM (since they require different configuration parameters). -
Page 30: Rst Button
Fig. 23: 4.4 RST Button The Regesta Smart PLC has a button that can be accessed from the outside and is labeled “RST” . It is located on the connectors panel and has two functions. • To trigger a reboot. -
Page 31: Updating The Software
For further information, please see manual: “Teldat Dm781-I Cellular Interface ” . 4.6 Updating the software The Regesta Smart PLC router can be updated to new releases. Please contact your distributor for further details on new releases. There are various ways to update one of our routers: For further information, please see manual Dm 748-I Software Updating. -
Page 32: Connecting To The Router
4.6.1.1 Connecting through the local console (CONF connector) The Regesta Smart PLC has a RJ.45 female connector on the front panel known as CONF., which provides access to the device local console. To configure this, connect the CONF. port to an asynchronous terminal (or to a PC with terminal emulation). - Page 33 4 Connecting the router Teldat S.A. • Initiate a Telnet session from the IP terminal to IP address 192.168.1.1 (Regesta Smart PLC default address). • The default configuration does not ask for credentials (user/password) to ac- cess the console. Regesta Smart PLC...
-
Page 34: Compliance
International Phone +34 91 807 65 65 5.2 Intended use of the equipment The Regesta Smart PLC is an industrial router. Operation of this equipment in a residential environment could cause radio interference. 5.3 EC Declaration of Conformity (No Radio version) English (EN) Hereby, Teldat S.A. -
Page 35: Ec Declaration Of Conformity (Radio Version)
In accordance with Article 10 of 2014/53/EU, we inform you that national restrictions and requirements may apply when it comes to authorization. These can evolve with time. Teldat S.A. recommends that you check with local au- thorities what the latest status of national regulations is. -
Page 36: Weee Information
El símbolo del contenedor con la cruz, que se encuentra en el aparato, significa que cuando el equipo haya llegado al final de su vida útil, deberá ser llevado a los centros de recogida previstos, y que su tratamiento debe estar separado del de los residuos urbanos. Regesta Smart PLC... -
Page 37: Appendix A Technical Information
BI-DC+ BI-DC- BI-DB- BI-DB- BI-DD+ BI-DD- A.1.2 WAN Base-T Connector RJ45 WAN RJ45 PIN FE Signals GE Signals BI-DA+ BI-DA+ BI-DA- BI-DA- BI-DB+ BI-DB+ BI-DC+ BI-DC- BI-DB- BI-DB- BI-DD+ BI-DD- A.1.3 WAN SFP Connector Standard SFP connector Regesta Smart PLC... -
Page 38: Wwan/Rf Connectors
Technical Information Teldat S.A. A.1.4 WWAN/RF Connectors Devices equipped with this interface have two SMA female connectors installed. SMA Female Internal RF in/out External A.1.5 Configuration Connector RJ45 CONFIGURATION CONF A.1.6 RS-232 Serial Port Connectors RJ45 SERIAL Regesta Smart PLC... -
Page 39: Rs-485 Serial Port Connectors
Terminal Block 2 Poles 5.08 mm pitch, is the same as power supply. CONNECTOR A.2.3 LAN Interface PROTOCOLS Ethernet (802.3). PORTS 1 port with MDI/MDX auto detection. SPEED 10/100/100 Mbps (BaseT). CONNECTOR RJ-45 female. ISOLATION Standard for E1 interface (1.5 KV). Regesta Smart PLC... -
Page 40: Wan Base-T Interface
EC25-E: • LTE Cat 4. • FDD. 150Mbps/50Mbps • TDD: 130Mbps/35Mbps • HSPA+ Cat 24/6: 42Mbps/5.76Mbps • EDGE: 236Kbps CONNECTOR Two RF SMA female connectors. (Optional). SIM Slots 2 Mini-SIM (2FF) ISO/IEC 7810:2003, ID-000 (1.8V / 3V) Regesta Smart PLC... -
Page 41: Configuration Interface
LENGTH x WIDTH x HEIGHT 140 x 80 x 190 mm. WEIGHT 1 Kg. A.2.12 Environmental Specifications TEMPERATURE RANGE OPERATION: -20 ºC to +70 ºC STORAGE: -25º to +70 ºC RELATIVE HUMIDITY 5 % to 93 % Regesta Smart PLC... -
Page 42: Radio Information
Teldat S.A. Appendix B Radio Information B.1 RF WWAN Specifications The Regesta Smart PLC model with the EC25 module provides connectivity for networking over several radio fre- quency bands under 3GPP Standards. • LTE (3GPP Release 10), • DC-HSPA+ (3GPP Release 8), •...
