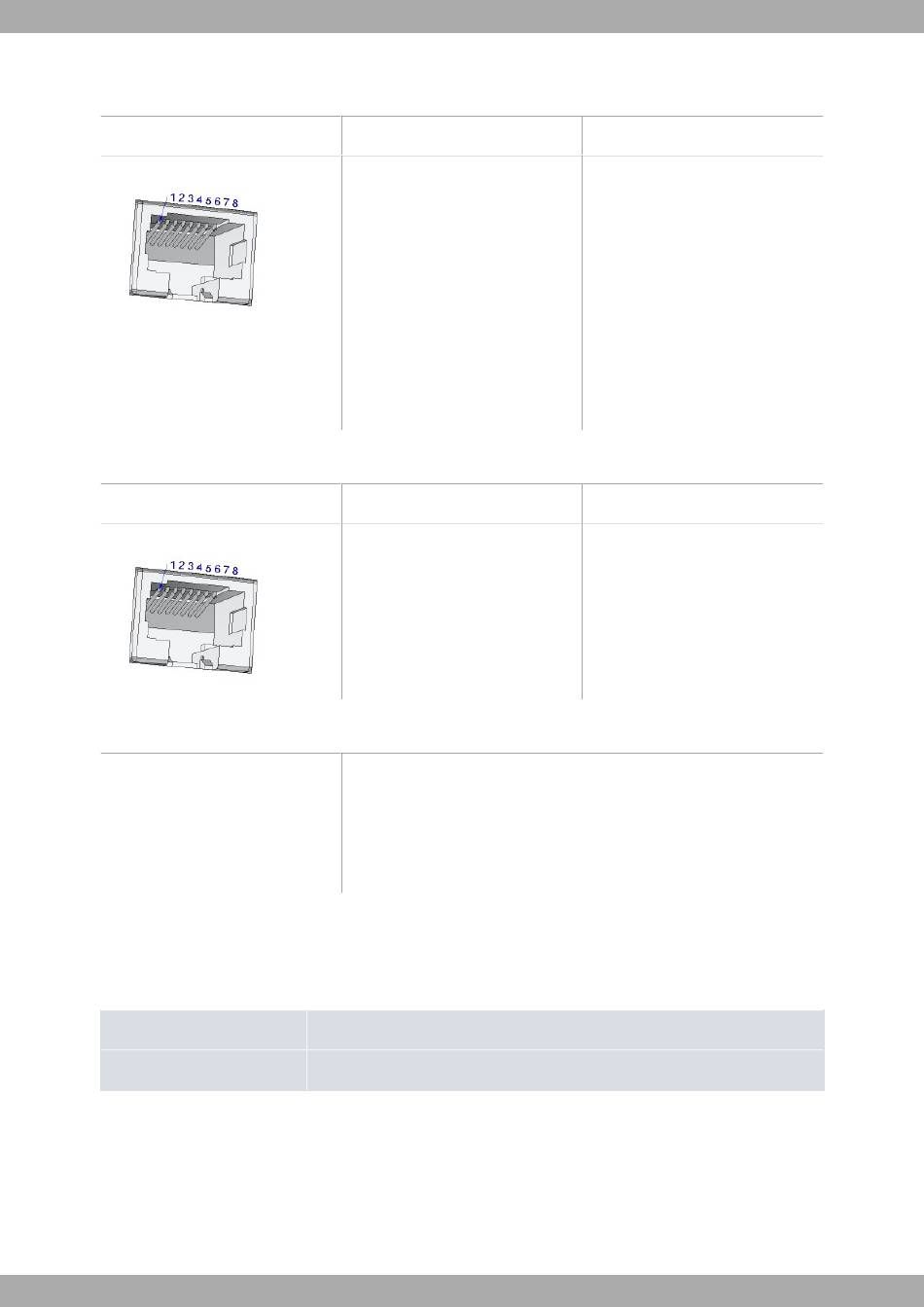

A.1.7 RS-232 Serial Port Connectors
RJ45
A.1.8 RS-485 Serial Port Connectors
RJ45
A.1.9 Power Supply Connector
2-wire terminal block with 5.08 mm
pitch
A.2 Technical Specifications
A.2.1 Hardware Architecture
MEMORY
STORAGE UNIT
Regesta Smart PRO
PIN
1
2
3
4
5
6
7
8
PIN
2
3
4
6
7
- AC-powered version:
Phase and Neutral connectors without assignation.
- DC-powered version:
V+ and V- connectors with polarity.
128 Mbytes in SDRAM.
FLASH Memory (32 Mbytes).
SERIAL
RTS
DTR
TxD
GND
CD
RxD
DSR
CTS
SERIAL
2H_R/TX-_4H_TX-
2H_R/TX+_4H_TX+
GND
4H_RX+
4H_RX-
