2.1 Quick Tour

Before setting up UTC-320, take a moment to familiarize yourself with the locations
and purposes of the controls, drives, connectors, and ports (as shown in the figures
below).
When UTC-320 is placed upright on a desk top, the front panel should appear as
shown in Figure 2.1.
Located at the rear of UTC-320 is an I/O section that includes serial ports, Ethernet
ports, USB ports, HDMI ports, Line-Out/Mic-In, RJ-11, DC-In, and a power button.
The rear view of UTC-320 is shown in Figure 2.2.
UTC-320 User Manual

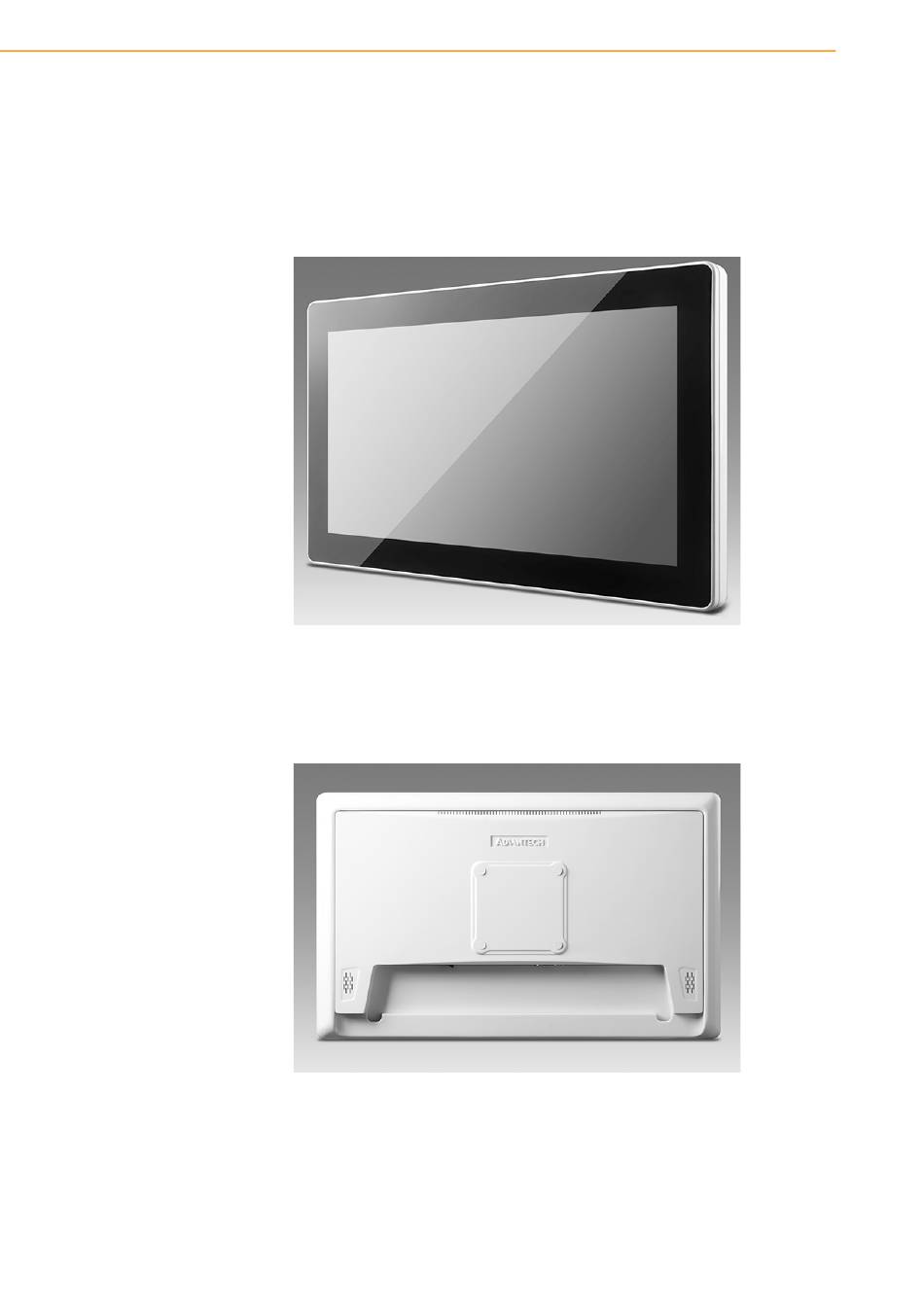

Figure 2.1 UTC-320 Front View
Figure 2.2 UTC-320 Rear View
