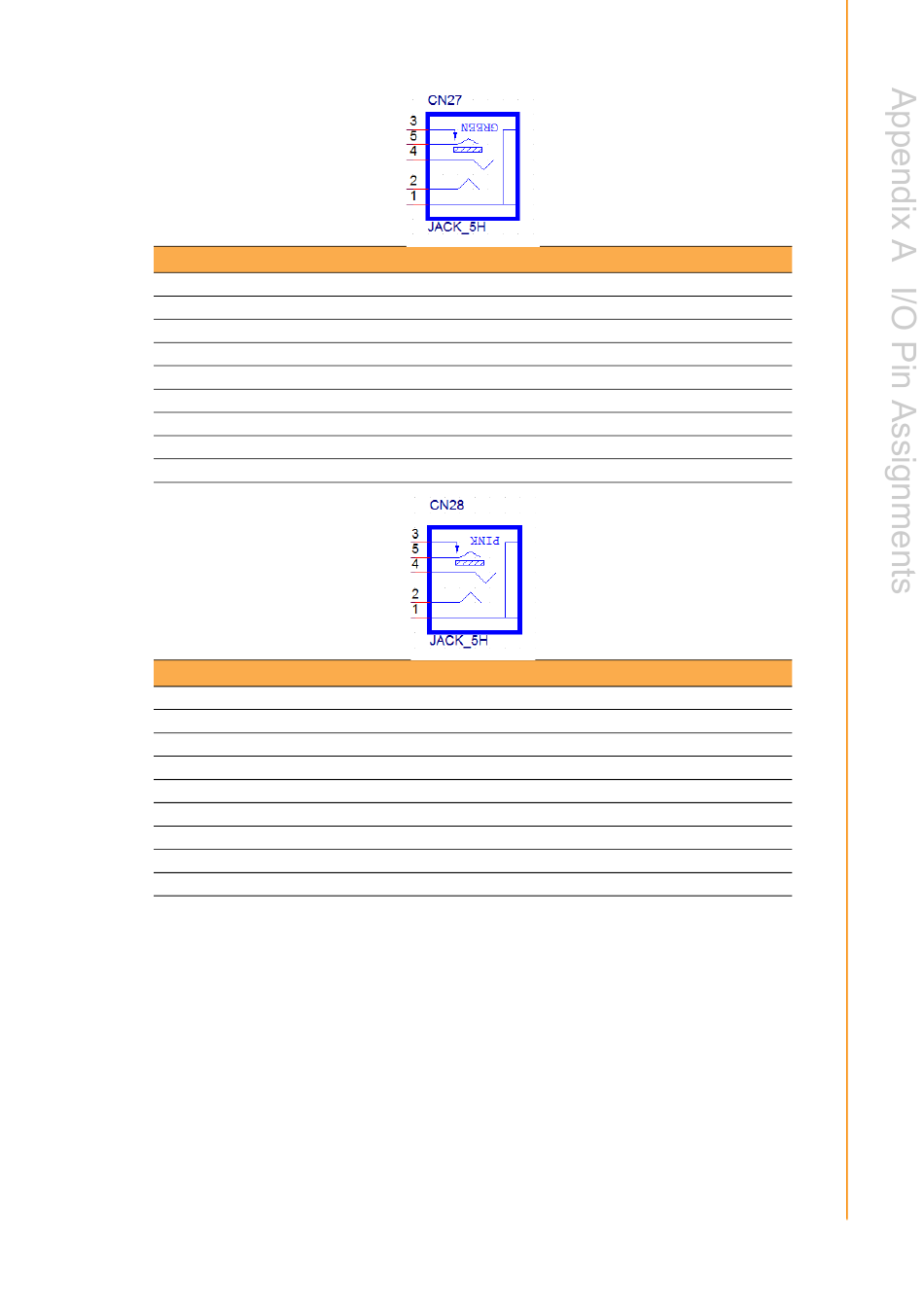

Table A.59: CN27(D),CN21(E),CN22(F),CN25(G),CN66(HI): Line-out
Part Number 1652001586
Footprint KUONYI_PJ-2508PC-5-L
Description PHONE JACK 5P 3.5φ 90D(F) AZALIA GREEN DIP WO/P
Pin Pin name
1 GND
2 OUT_L
3 JD
4 OUT_R
5 GND
Table A.60: CN28(D),CN22(E),CN21(F),CN24(GHI): MIC-IN
Part Number 1652001584
Footprint KUONYI_PJ-2508PA-5-L
Description PHONE JACK 5P 3.5φ 90D(F) AZALIA PINK DIP WO/Pb
Pin Pin name
1 GND
2 MIC_L
3 JD
4 MIC_R
5 GND
