2.1 A Quick Tour of the UTC-310

Before you start to set up the UTC-310, take a moment to become familiar with the
locations and purposes of the controls, drives, connectors and ports. The front panel
appears as shown in Figure 2.1.
When you turn the UTC-310 around, you will find the I/O section as shown in Fig. 2.2.
(The I/O section includes various I/O ports, including serial ports, USB ports, audio
connectors etc.)
UTC-310 User Manual

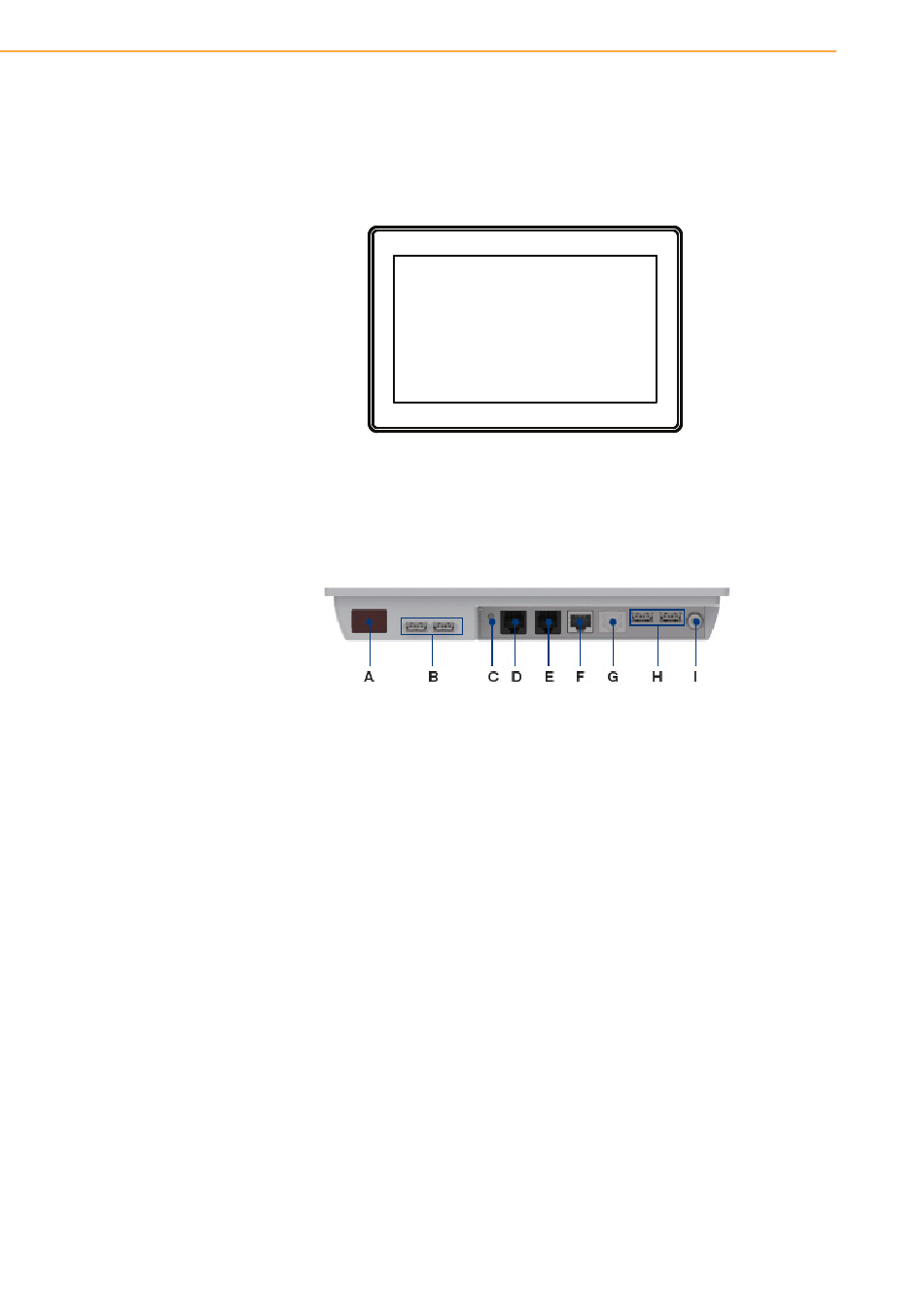

Figure 2.1 Front view of UTC-310
A. Barcode Reader (Optional)
B. USB 3.0 x 2 (Optional)
C. POWER BUTTON
D. COM W/RS232
E. COM W/RS-232/422/485
Figure 2.2 Rear view of UTC-310
F. LAN Port
G. LAN/PoE Port
H. USB 3.0 x 2
I. DC Power Jack
