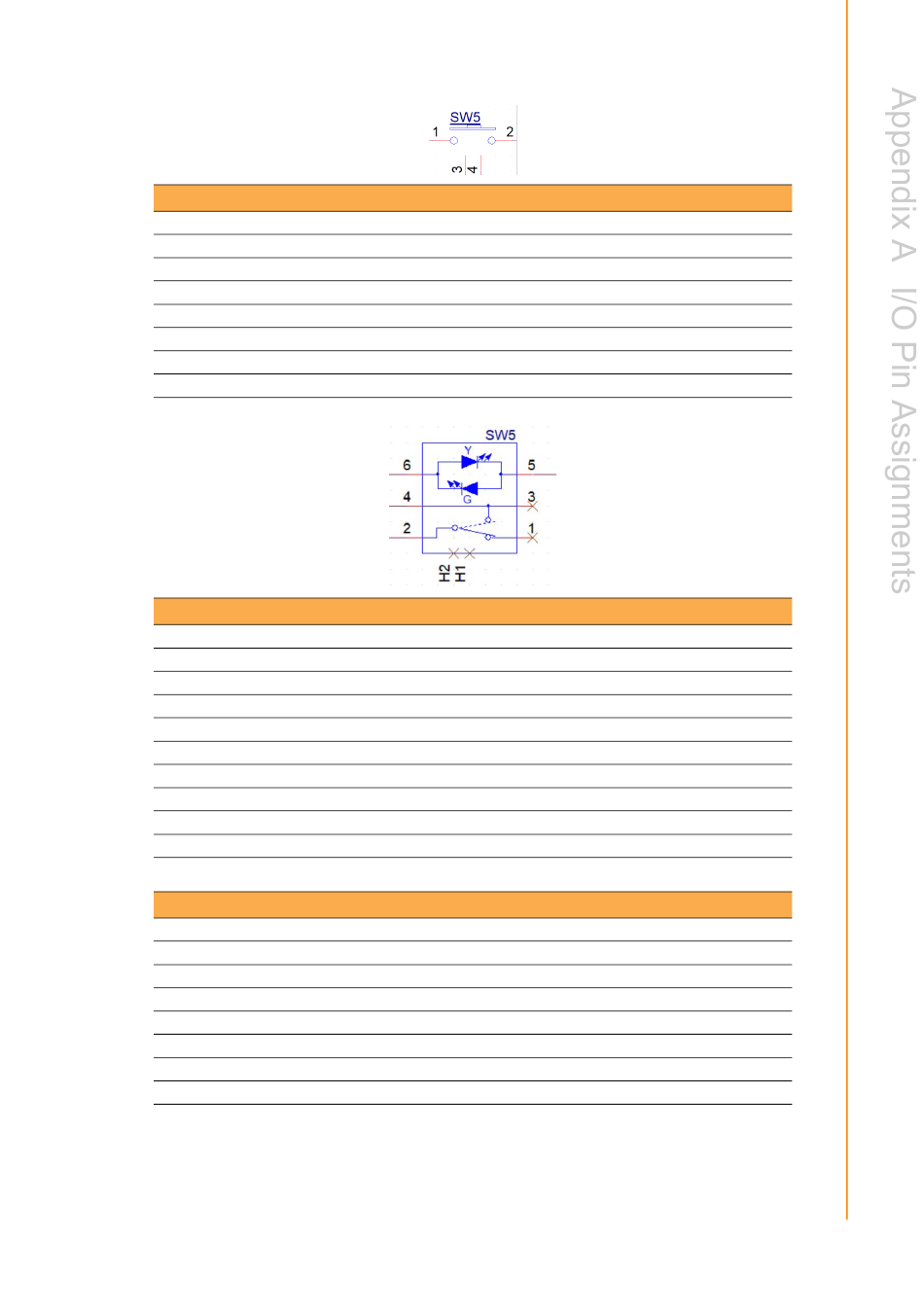

Table A.67: SW5(HK): Power button
Part Number 1600002384
Footprint SW_2P_ELTSA-63_D
Description PUSH SW ELTSA-63N-H DIP 4P 7.4x6.65x8.5mm
Pin Pin name
1 ATX_PWRBTN#
2 GND
3 GND
4 GND
Table A.68: SW5(I): Power button
Part Number 1600002144
Footprint SW_6P_TC006-N12AAAUGUY-K_D
Description TACT SW TC006-N12AABUGUY-K-2 DIP 6P 8x17.85x12.6
Pin Pin name
1 Float
2 GND
3 Float
4 AT_PWRBTN#
5 LED_PWR
6 LED_STD
Table A.69: SW1(K): Panel Type Setting Switch
Part Number 1600000402
Footprint SW_4x2P_50_260x315
Description DIP SW SMD 8P SPST P=1.27mm W=5.4mm KHS42E
Pin Pin name
1 LVDS_GPIO0
2 LVDS_GPIO1
3 LVDS_GPIO2
4 LVDS_GPIO3
