2.1 A Quick Tour of the UTC-315

Before you start to set up the UTC-315, take a moment to become familiar with the
locations and purposes of the controls, drives, connectors and ports, which are illus-
trated in the figures below. When you place the UTC-315 upright on the desktop, its
front panel appears as shown in Figure 2.1.
When you turn the UTC-315 around and look at its rear cover, you will find the I/O
section as shown in Fig. 2.2. (The I/O section includes various I/O ports, including
serial ports, Ethernet ports, USB ports, HDMI, and LINE-OUT / MIC-IN, RJ11, DC-IN,
Power button.)
UTC-315 User Manual

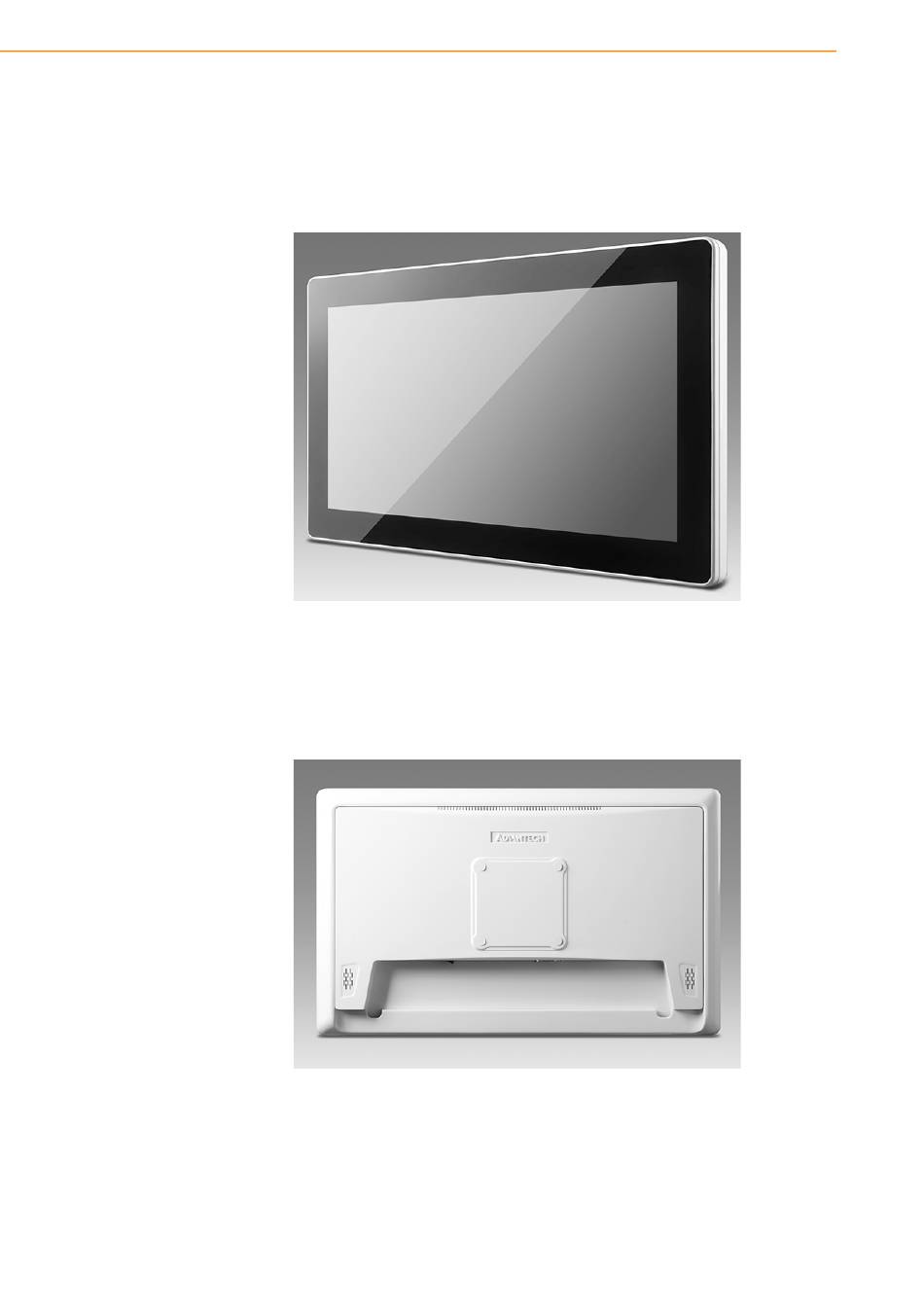

Figure 2.1 Front view of UTC-315
Figure 2.2 Rear view of UTC-315
