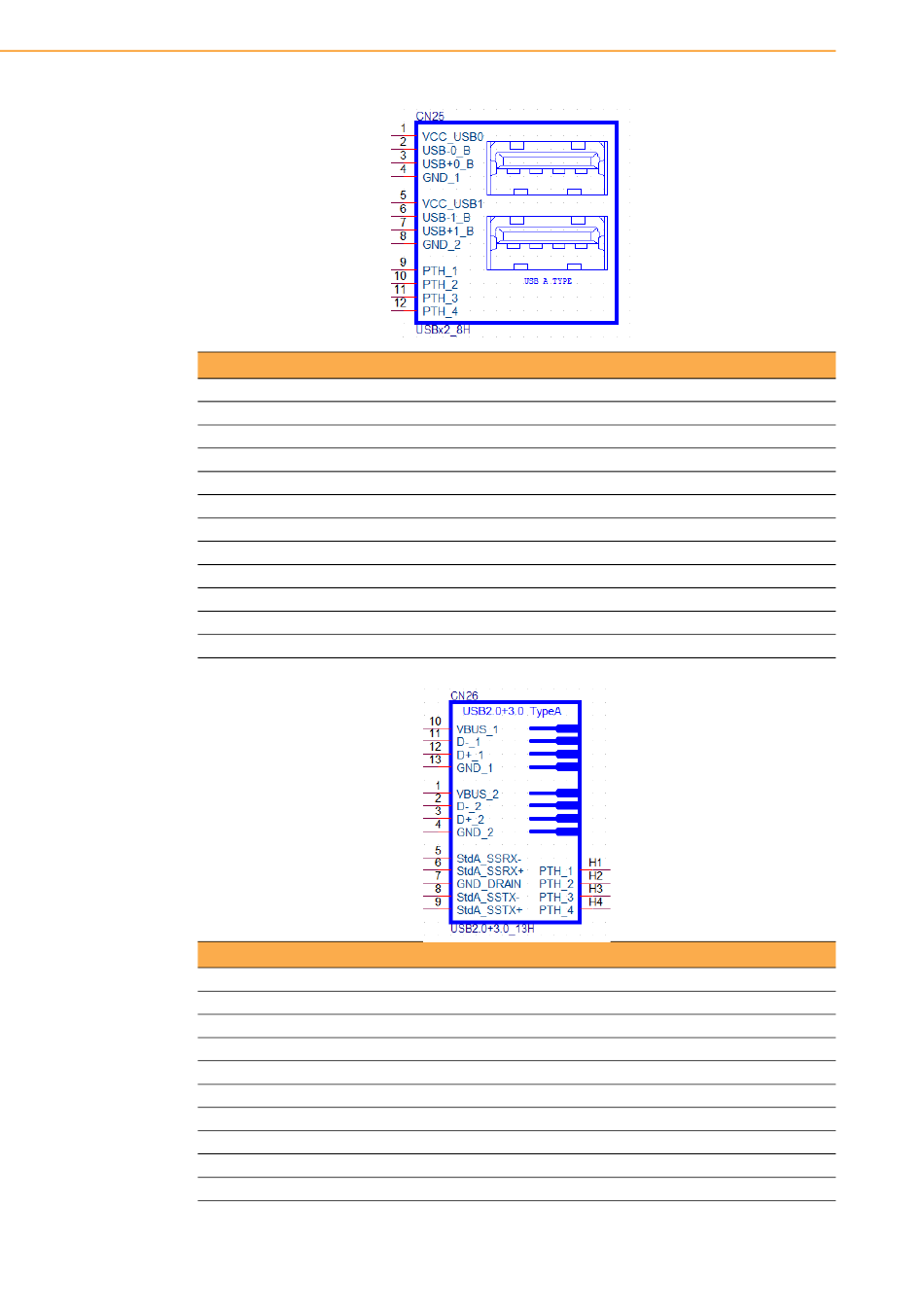

Table A.54: CN24,CN25(D),CN18(EF),CN20(G),CN43(I): External USB
Part Number
Footprint
Description
Pin
1
2
3
4
5
6
7
8
Table A.55: CN26(D): External USB
Part Number
Footprint
Description
Pin
1
2
3
4
5
6
UTC-320 User Manual
1654009513
USB_8P_UB1112C-8FDE-4F
USB CONN. 8P 2.0mm 90D DIP UB1112C-8FDE-4F
Pin name
+5VSB
D-
D+
GND
+5VSB
D-
D+
GND
1654010199
USB_13P_UEA1112C-UHS6-4F
USB Conn. 2.0+3.0 13P 90D(F) DIP UEA1112C-UHS6-4
Pin name
+5VSB
D0-
D0+
GND
RX_D-
RX_D+
