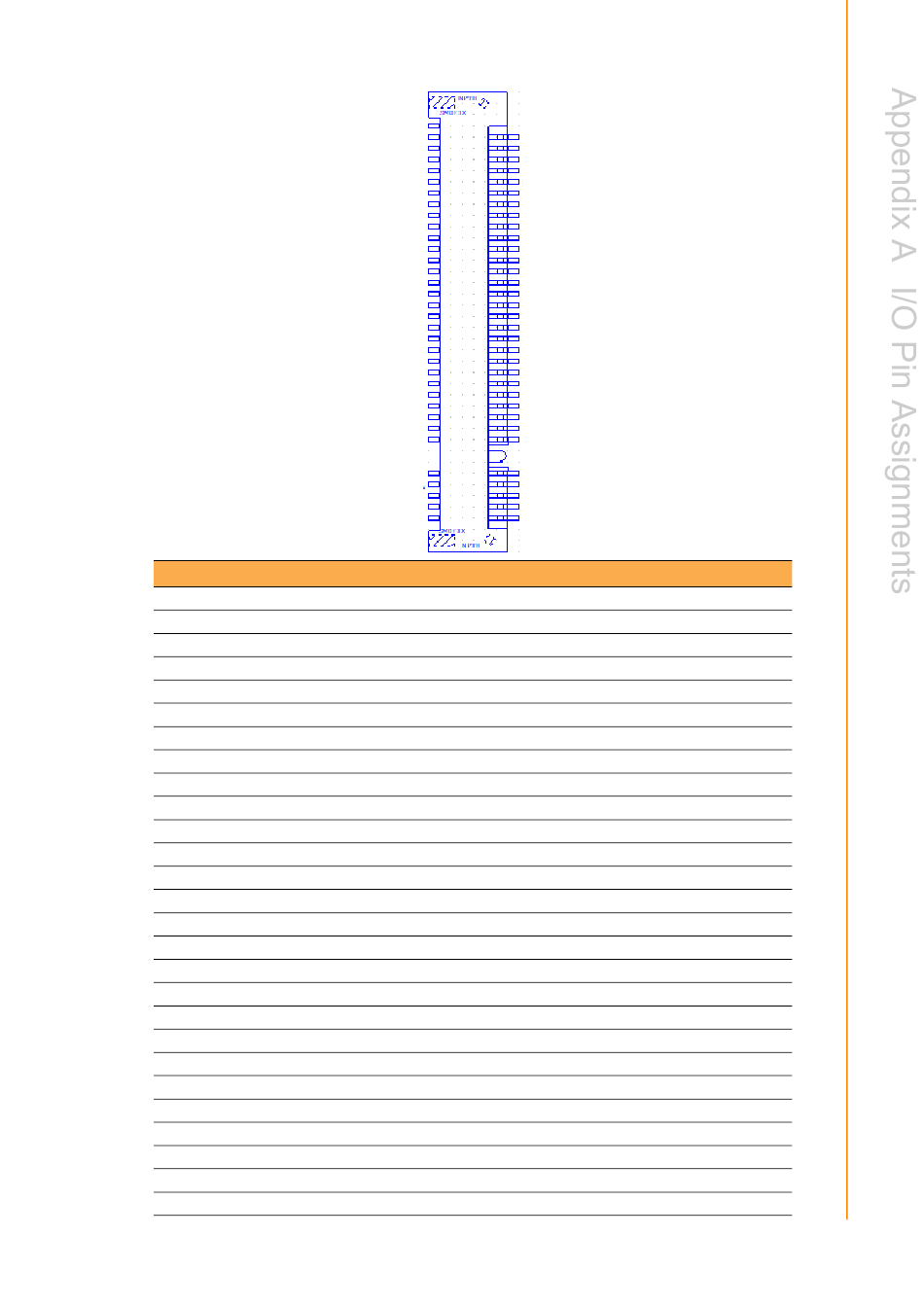

Table A.45: M2M1(HI): M.2_2280
Part Number
1654012187-02
Footprint
NGFF_75P_AS0BC21-S85BM-7H
Description
NGFF 75P 0.5mm 90D(F) H=8.5mm SMD 2E0BC21-S85BM-7H
Pin
Pin name
1,3,9,15,21,27
GND
33,39,45,51
GND
57,71,73,75,H4
GND
5,17,29,41
PERN
7,19,31,43
PERP
11,23,35,47
PETN
13,25,37,49
PETP
2,4,12,14,16
3.3V
18,70,72,74
3.3V
49
SATA1_C_TX+
47
SATA1_C _TX-
43
SATA1_C _RX-
41
SATA1_C _RX+
55
CLK5_M2M+
53
CLK5_M2M-
50
M2_2280_RST#
52
M2_2280_CLKREQ#
54
M2_2280_WAKE#
68
CLK32K_M2_2280
6,8,20,22,24,26
NC
28,30,32,34,36
NC
40,42,44,46
NC
48,56,58
NC
65
