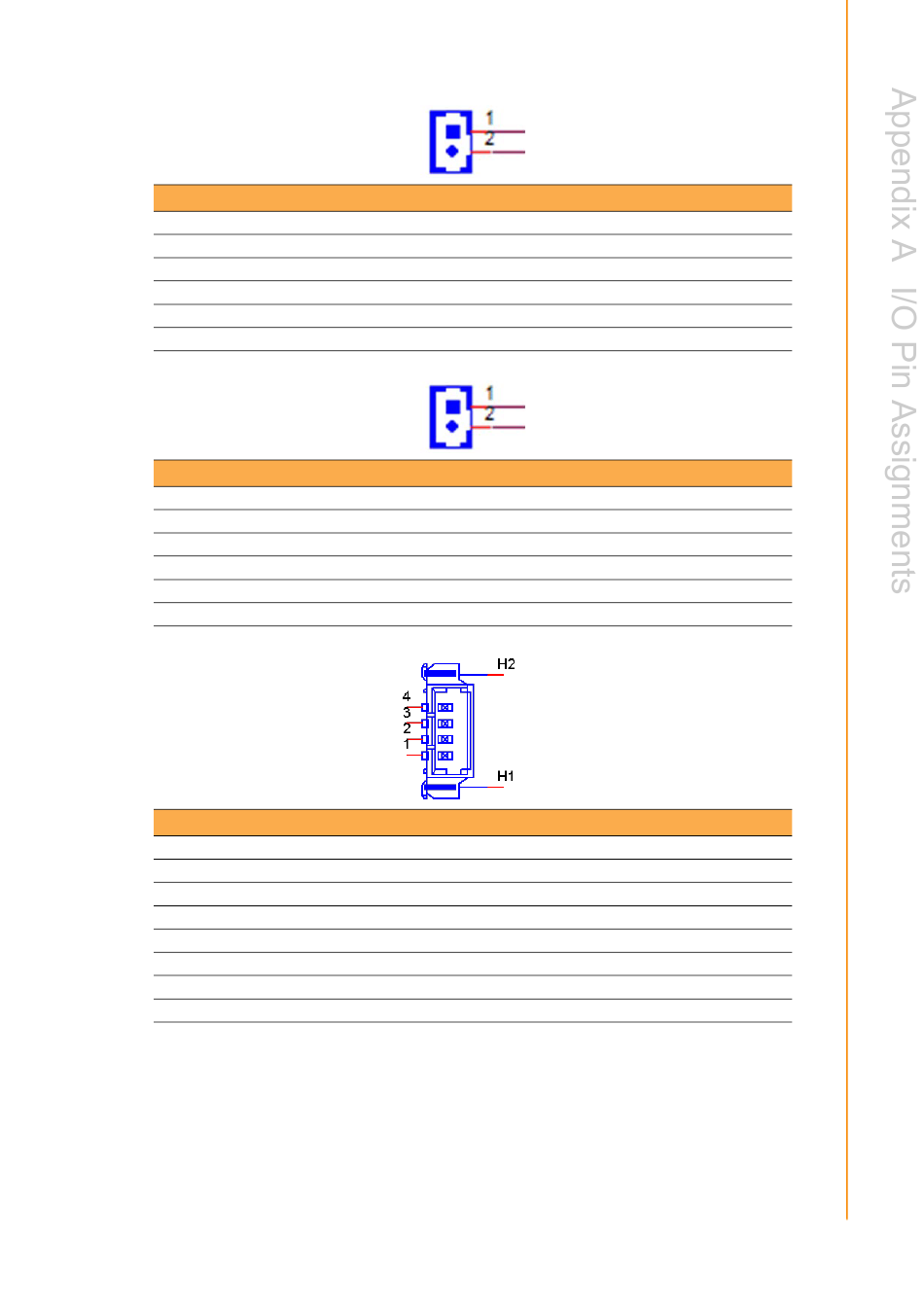

Table A.35: CN21(D),CN16(EF),CN23(G),CN45(H): Power on switch
Part Number 1655302020
Footprint WF_2P_79_BOX_R1_D
Description WAFER BOX 2P 2.0mm 180D(M) DIP A2001WV2-2P
Pin Pin name
1 PSIN
2 GND
Table A.36: CN45(I): Power on switch
Part Number 1653007538-01
Footprint WF_2P_79_BOX_D_721-81-02TW00
Description Wafer 1x2P/2.0mm/NY66+30GF/M/VA/Sn/D/WH/H6.1mm
Pin Pin name
1 PSIN
2 GND
Table A.37: CN121(K): Power on switch
Part Number 1653008918-01
Footprint WF_4P_49_BOX_RA_50271-0040N-002
Description Wafer 1x4P/1.25/RA(M)/Matt-Sn/S/WH/H3.4mm
Pin Pin name
1
2 PWR_LED
3 GND
4 PWR_a_BTN#
SUSLED-
