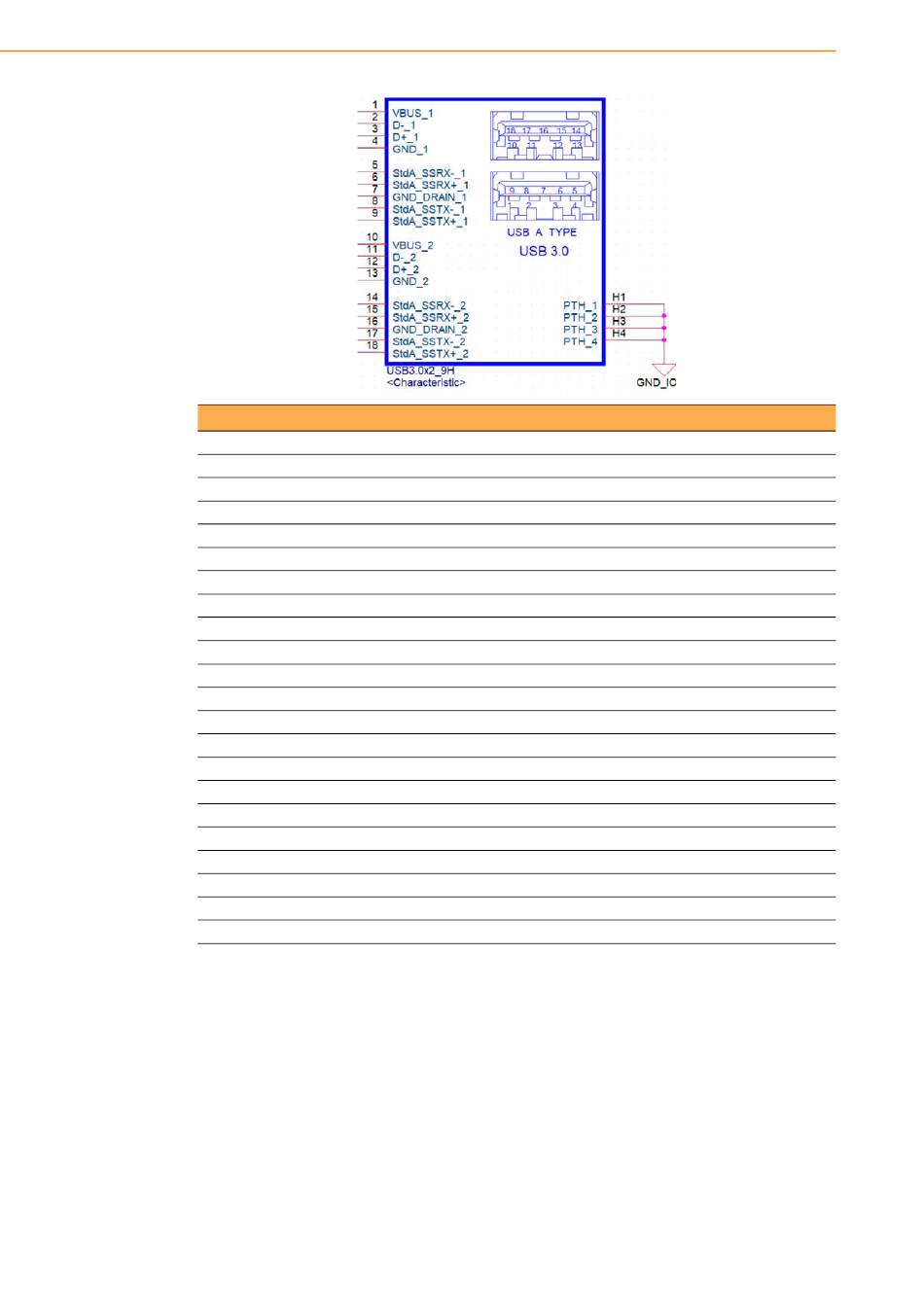

Table A.52: CN19(EF),CN21(G): External USB
Part Number
Footprint
Description
Pin
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
UTC-320 User Manual
1654010969-01
USB_9x2P_UEA1112C-8HS6-4F
USB CONN. 18P 2.0mm 90D(F) DIP UEA1112C
Pin name
+5V
D-
D+
GND
RX_D-
RX_D+
GND
TX_D-
TX_D+
+5V
D-
D+
GND
RX_D-
RX_D+
GND
TX_D-
TX_D+
68
