2.1 A Quick Tour of the UTC-307
Before you start to set up the UTC-307, take a moment to become familiar with the
locations and purposes of the controls, drives, connectors and ports. The front panel
appears as shown in Figure 2.1.
When you turn the UTC-307 around, you will find the I/O section as shown in Fig. 2.2.
(The I/O section includes various I/O ports, including serial ports, USB ports, audio
connectors etc.)
UTC-307 User Manual

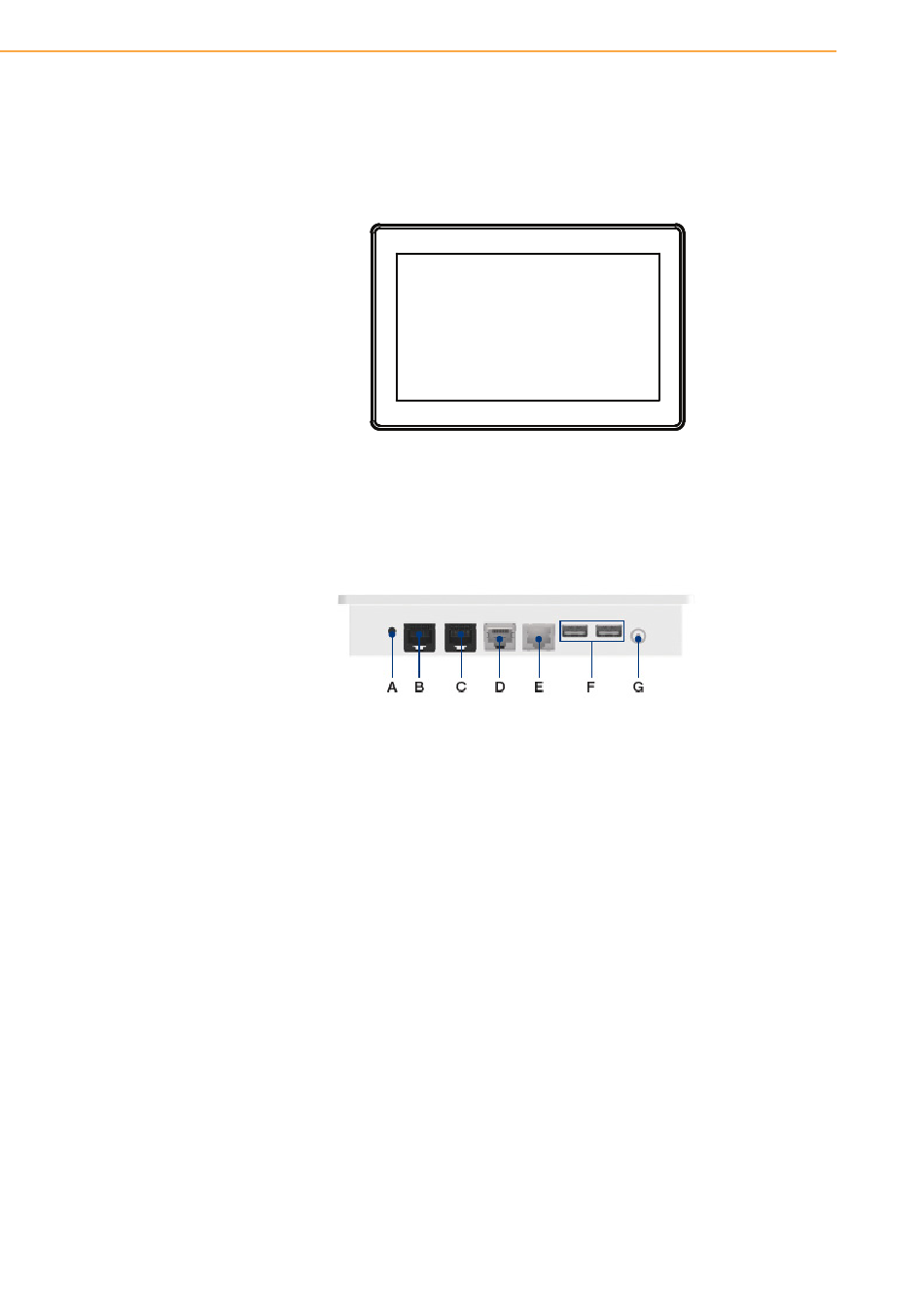

Figure 2.1 Front view of UTC-307
A. POWER BUTTON
B. COM W/RS-232
C. COM W/RS-232/422/485
D. LAN Port
Figure 2.2 Rear view of UTC-307
E. LAN/PoE Port
F. USB 3.0 x 2
G. DC Power Jack
